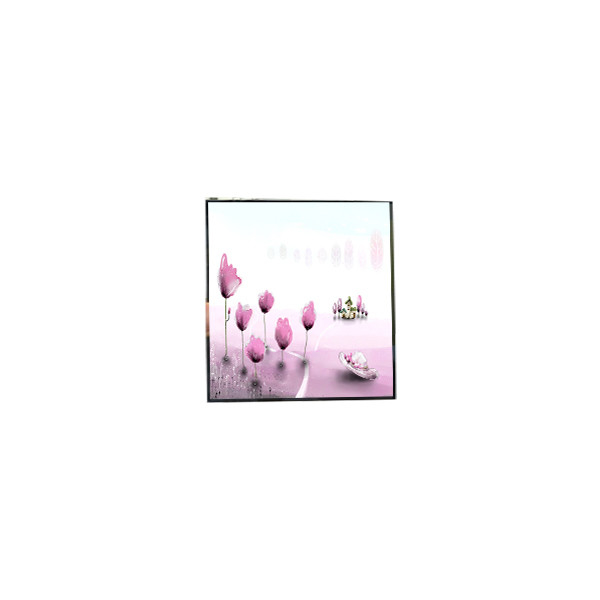

LH500WF4-SH01 5.0 inch 1500 : 1 LCD Screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | LG |
| Model Number: | LH500WF4-SH01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LH500WF4-SH01 | Diagonal Size: | 5.0" |
|---|---|---|---|
| Panel Type: | LTPS TFT-LCD, CELL, Full Cell | Resolution: | 1080(RGB)×1920, FHD 445PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 61.641(W)×109.584(H) Mm |
| Work Mode: | IPS, Normally Black, Transmissive | Light Source: | No B/L |
| Good View At: | Symmetry | Designed For: | Mobile Phone |
Product Description
LH500WF4-SH01 5.0 inch 1500 : 1 LCD Screen Display
LH500WF4-SH01 LCD Panel Product details :
| Brand | LG Display |
| Model P/N | LH500WF4-SH01 |
| Diagonal Size | 5.0" |
| Panel Type | LTPS TFT-LCD, CELL, Full Cell |
| Resolution | 1080(RGB)×1920, FHD 445PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 61.641(W)×109.584(H) mm |
| Bezel Opening | - |
| Outline(mm) | 63.641 × 115.824× 0.3 (H×V×D) |
| Treatment | - |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1500 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 35 (Max.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | IPS, Normally Black, Transmissive |
| Glass Thickness | 0.15+0.15 mm |
| Transmissivity | 3.2% (Typ.)(with Polarizer) |
| Color Depth | 16.7M 70%NTSC |
| Backlight | No B/L |
| Mass | 5.53±0.53g |
| Used for | Mobile Phone |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Driver IC list | Suggest COG R63315 |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| LH500WF4-SH01 5.0 inch 1500 : 1 LCD Screen Display | |
LH500WF4-SH01 LCD Panel Notice:
Before placing your order for the LH500WF4-SH01 LCD panel, please carefully check and confirm the following details to ensure compatibility with your laptop:
Screen Size: Verify that the screen size matches your laptop's requirements.
Resolution: Ensure the resolution is compatible with your laptop.
Backlight Type: Confirm that the backlight type is suitable for your laptop model.
Interface Type and Location: Check that the interface type and its location are appropriate for your laptop's design.
If you are unsure about any of these specifications, please feel free to contact us for assistance. We are here to help you make an informed decision and ensure you select the correct LCD panel for your needs.
Customs Declaration:
If you would like us to declare a lower price on the package to reduce or avoid customs tax, please inform us at the time of your order. However, please note that by requesting this, you assume the risk of any potential issues that may arise with customs authorities.
LH500WF4-SH01 LCD Panel Shipping and Package :
LH500WF4-SH01 LCD Panel Packing:
We take great care to ensure that the LH500WF4-SH01 LCD panel is securely packed to prevent any damage during transit. The packing process involves multiple protective layers. First, the LCD panel is wrapped in a bubble bag, which provides a cushioned layer to absorb shocks and vibrations. This bubble bag acts as the first line of defense against impact.
Next, the bubble-wrapped LCD panel is placed inside a sturdy, strong box. This box is specifically chosen for its durability and ability to withstand external pressure. The combination of the bubble bag and the strong box ensures that the LCD panel remains intact and undamaged throughout its journey to you.
Additionally, we may include extra padding materials within the box to fill any voids and prevent the panel from shifting during transport. This meticulous packing process helps to ensure that the LH500WF4-SH01 LCD panel arrives at your doorstep in perfect working condition, ready for immediate use.
LH500WF4-SH01 LCD Panel Return Policy:
Inspection and Initial Reporting Period:
Upon receiving the LH500WF4-SH01 LCD panel, customers have a 7-day window to inspect and install the product. It is crucial to thoroughly check the panel for any damage or issues during this period. If the product is found to be damaged or dead-on-arrival (DOA), customers must report these issues within the 7-day timeframe to qualify for a return or exchange.
Exchange Policy for Defective Products:
If the LH500WF4-SH01 LCD panel exhibits any defects within 90 days of delivery, customers are eligible to exchange it for the exact same product. This policy ensures that you receive a fully functional panel without additional cost or hassle.
Different Product Exchange:
If a customer wishes to exchange the defective LCD panel for a different product, the process is treated as two separate transactions. First, the defective panel is returned, and a refund or credit is issued. Subsequently, the customer must place a new order for the desired product.
LH500WF4-SH01 LCD Panel FAQ :
Q: How to make payment of LH500WF4-SH01 ?
A: We accept T/T , Paypal , western union .
Q: Can you give me a discount if I need a large quantity of LH500WF4-SH01 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of LH500WF4-SH01 ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods LH500WF4-SH01 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Want to Know more details about this product
