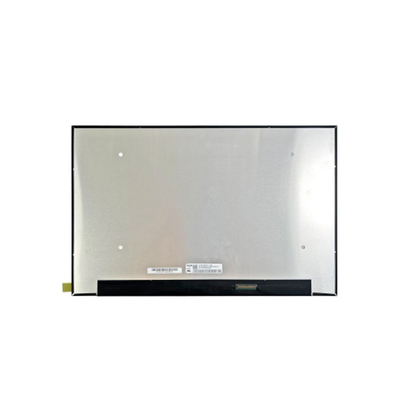

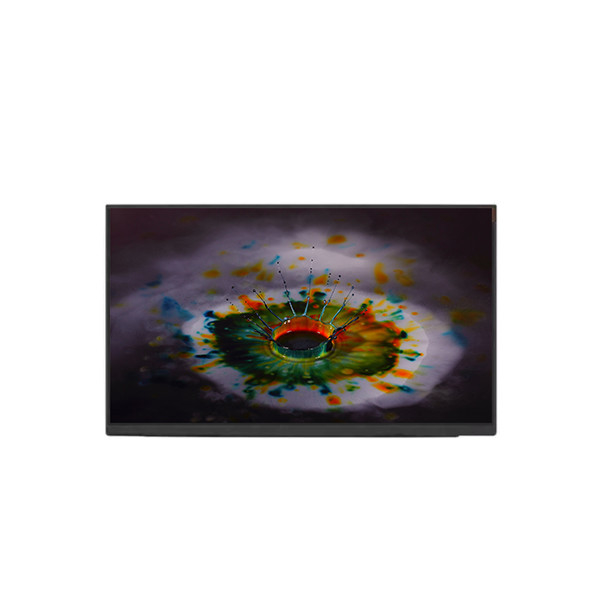

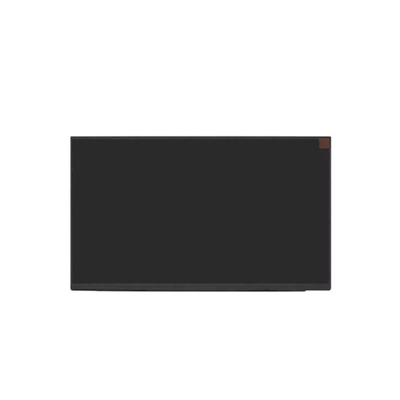

Original NE160QAM-NX1 16.0 inch LCD Display Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | NE160QAM-NX1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NE160QAM-NX1 | Diagonal Size: | 16.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 3840(RGB)×2400 282PPI |
| Active Area: | 344.678(W)×215.424(H) Mm | Outline Size: | 349.68(W)×224.42(H)×4.6(D) Mm |
| Brightness: | 500 Cd/m² (Typ.) | Viewing Angle: | 80/80/80/80 (Min.)(CR≥10) |
| Display Colors: | 1.07B 100%DCI-P3 | Application: | Laptop、Gaming |
Product Description
Original NE160QAM-NX1 16.0 inch LCD Display Screen
NE160QAM-NX1 LCD Panel Product details :
| Brand | BOE |
| Model P/N | NE160QAM-NX1 |
| Diagonal Size | 16.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 3840(RGB)×2400 282PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 344.678(W)×215.424(H) mm |
| Bezel Opening | - |
| Outline Size | 349.68(W)×224.42(H)×4.6(D) mm |
| Brightness | 500 cd/m² (Typ.) |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) |
| Best View on | Symmetry |
| Display Colors | 1.07B 100%DCI-P3 |
| Frequency | 120Hz |
| Shape Style | Slim (PCBA Bent, T≤3.0mm) |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 1200:1 (Typ.) (TM) |
| Display Mode | ADS, Normally Black, Transmissive |
| Response Time | 9 (Typ.)(Tr+Td), 3 (Typ.)(G to G) |
| Lamp Type | 11S8P WLED , 15K hours , With LED Driver |
| Touch Screen | Without |
| Application | Laptop,Gaming |
| Signal Interface | eDP (4 Lanes), eDP1.4b , HBR3 (8.1G/lane) , 40 pinsConnector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
NE160QAM-NX1 LCD Panel Note :
Model Verification:
Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.
Comprehensive Testing:
We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.
NE160QAM-NX1 LCD Panel Shipping and Package :
NE160QAM-NX1 LCD Panel Shipping Guidelines:
Address Confirmation:
It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.
Shipment Timeline:
Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.
NE160QAM-NX1 LCD Panel ESTIMATED DELIVERY TIME :
Standard Shipping:
The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.
Expedited Shipping:
For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.
NE160QAM-NX1 LCD Panel FAQ :
Q: How do you ship my goods NE160QAM-NX1 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: How long is the warranty of NE160QAM-NX1 ?
A: 90 days warranty .
Q: How can I trace my order of NE160QAM-NX1 ?
A: we will give you tracking number then you can trace your order form website.
Q: Can you give me a discount if I need a large quantity of NE160QAM-NX1 ?
A: Of course!If you make a large order, we will give you a discount.
