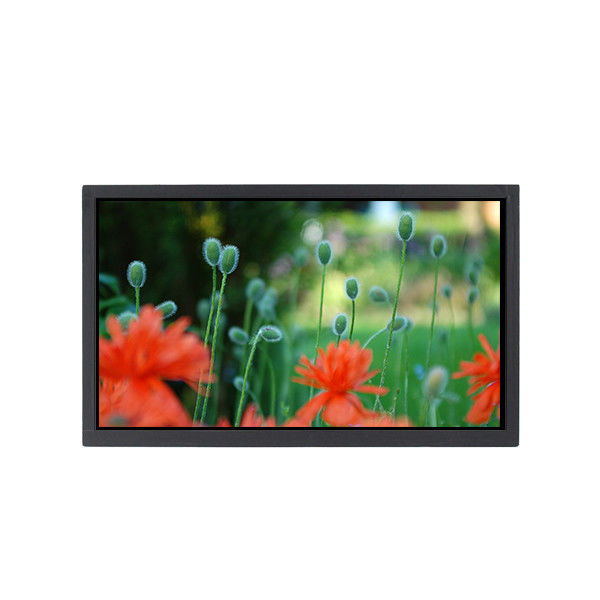

NV140WUM-T01 14.0 inch 1920*1200 LCD Screen Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | NV140WUM-T01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NV140WUM-T01 | Diagonal Size: | 14.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×1200, WUXGA 161PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 301.594(W)×188.496(H) Mm |
| Application: | Laptop | Touch Screen: | On-Cell Touch, I²C |
| Signal Type: | EDP (2 Lanes), EDP1.2 , HBR1 (2.7G/lane) , 40 PinsConnector | Voltage Supply: | 3.3V (Typ.) |
Product Description
NV140WUM-T01 14.0 inch 1920*1200 LCD Screen Panel
NV140WUM-T01 LCD Panel Product details :
| Brand | BOE |
| Model P/N | NV140WUM-T01 |
| Diagonal Size | 14.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1200, WUXGA 161PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 301.594(W)×188.496(H) mm |
| Bezel Opening | - |
| Outline Size | 307.29(W)×199.25(H)×5(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | HADS, Normally Black, Transmissive |
| Color Depth | 262K 45%NTSC |
| Backlight | 10S5PWLED, 15K hours, With LED Driver |
| Outline Shape | Slim (PCBA Bent, T≤3.0mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | On-Cell Touch, I²C |
| Signal Type | eDP (2 Lanes), eDP1.2 , HBR1 (2.7G/lane) , 40 pinsConnector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
NV140WUM-T01 LCD Panel Note :
Model Verification:
Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.
Comprehensive Testing:
We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.
NV140WUM-T01 LCD Panel Shipping and Package :
NV140WUM-T01 LCD Panel Shipping Guidelines:
Address Confirmation:
It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.
Shipment Timeline:
Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.
NV140WUM-T01 LCD Panel ESTIMATED DELIVERY TIME :
Standard Shipping:
The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.
Expedited Shipping:
For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.
NV140WUM-T01 LCD Panel FAQ :
Q: Can you give me a discount if I need a large quantity of NV140WUM-T01 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of NV140WUM-T01 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods NV140WUM-T01 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Do you accept sample orders of NV140WUM-T01 ?
A: Of course!sample order is welcome !
