LCD Screen Display Panel

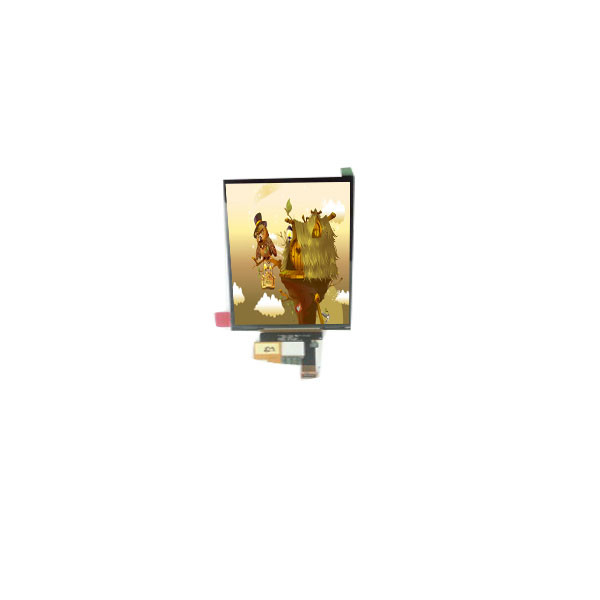

LH500WF1-SD02 5.0 inch 450 cd/m² LCD Screen Display

All Category

Floor Standing Digital Signage

LH500WF1-SD02 5.0 inch 450 cd/m² LCD Screen Display

Brand Name:	LG
Model Number:	LH500WF1-SD02
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LH500WF1-SD02

Diagonal Size:

Panel Type:

LTPS TFT-LCD, LCM

Resolution:

1080(RGB)×1920, FHD 439PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

62.37(W)×110.88(H) Mm

Work Mode:

IPS, Normally Black, Transmissive

Light Source:

6S2P WLED, Without Driver

Good View At:

Symmetry

Designed For:

Mobile Phone

Supply Ability:

100000 Unit/Units per Month

Product Description

LH500WF1-SD02 5.0 inch 450 cd/m² LCD Screen Display

LH500WF1-SD02 LCD Panel Product details :

Brand	LG Display
Model P/N	LH500WF1-SD02
Diagonal Size	5.0"
Panel Type	LTPS TFT-LCD, LCM
Resolution	1080(RGB)×1920, FHD 439PPI
Pixel Format	RGB Vertical Stripe
Active Area	62.37(W)×110.88(H) mm
Bezel Opening	-
Outline Size	65.27(W)×117.88(H)×1.55(D) mm
Brightness	450 cd/m² (Typ.)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Best View on	Symmetry
Display Colors	16.7M 70%NTSC
Frequency	60Hz
Weight	18.5±1.9g
Surface	Clear
Contrast Ratio	1000:1 (Typ.) (TM)
Display Mode	IPS, Normally Black, Transmissive
Response Time	20/20 (Typ.)(Tr/Td)
Lamp Type	6S2P WLED, Without Driver
Touch Screen	Without
Application	Mobile Phone
Signal Interface	MIPI (4 data lanes), 30 pinsConnector
Input Voltage	1.8/5.0/-5.0V (Typ.)(IOVCC/VSP/VSN)
Environment	Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C
LH500WF1-SD02 5.0 inch 450 cd/m² LCD Screen Display

LH500WF1-SD02 LCD Panel Notice:

Before placing your order for the LH500WF1-SD02 LCD panel, please carefully check and confirm the following details to ensure compatibility with your laptop:

Screen Size: Verify that the screen size matches your laptop's requirements.

Resolution: Ensure the resolution is compatible with your laptop.

Backlight Type: Confirm that the backlight type is suitable for your laptop model.

Interface Type and Location: Check that the interface type and its location are appropriate for your laptop's design.

If you are unsure about any of these specifications, please feel free to contact us for assistance. We are here to help you make an informed decision and ensure you select the correct LCD panel for your needs.

Customs Declaration:

If you would like us to declare a lower price on the package to reduce or avoid customs tax, please inform us at the time of your order. However, please note that by requesting this, you assume the risk of any potential issues that may arise with customs authorities.

LH500WF1-SD02 LCD Panel Shipping and Package :

LH500WF1-SD02 LCD Panel Packing:

We take great care to ensure that the LH500WF1-SD02 LCD panel is securely packed to prevent any damage during transit. The packing process involves multiple protective layers. First, the LCD panel is wrapped in a bubble bag, which provides a cushioned layer to absorb shocks and vibrations. This bubble bag acts as the first line of defense against impact.

Next, the bubble-wrapped LCD panel is placed inside a sturdy, strong box. This box is specifically chosen for its durability and ability to withstand external pressure. The combination of the bubble bag and the strong box ensures that the LCD panel remains intact and undamaged throughout its journey to you.

Additionally, we may include extra padding materials within the box to fill any voids and prevent the panel from shifting during transport. This meticulous packing process helps to ensure that the LH500WF1-SD02 LCD panel arrives at your doorstep in perfect working condition, ready for immediate use.

LH500WF1-SD02 LCD Panel Return Policy:

Inspection and Initial Reporting Period:

Upon receiving the LH500WF1-SD02 LCD panel, customers have a 7-day window to inspect and install the product. It is crucial to thoroughly check the panel for any damage or issues during this period. If the product is found to be damaged or dead-on-arrival (DOA), customers must report these issues within the 7-day timeframe to qualify for a return or exchange.

Exchange Policy for Defective Products:

If the LH500WF1-SD02 LCD panel exhibits any defects within 90 days of delivery, customers are eligible to exchange it for the exact same product. This policy ensures that you receive a fully functional panel without additional cost or hassle.

Different Product Exchange:

If a customer wishes to exchange the defective LCD panel for a different product, the process is treated as two separate transactions. First, the defective panel is returned, and a refund or credit is issued. Subsequently, the customer must place a new order for the desired product.

LH500WF1-SD02 LCD Panel FAQ :

Q: How long will I receive my goods LH500WF1-SD02 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: Can you give me a discount if I need a large quantity of LH500WF1-SD02?

A: Of course!If you make a large order, we will give you a discount.

Q: Do you accept sample orders of LH500WF1-SD02 ?

A: Of course!sample order is welcome !

Q: Can You declare my order of LH500WF1-SD02 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .
