LH500M01-SH02 5.0 inch AH3-IPS LCD Screen Display

Brand Name:	LG
Model Number:	LH500M01-SH02
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LH500M01-SH02

Diagonal Size:

Panel Type:

A-Si TFT-LCD, CELL, Full Cell

Resolution:

540(RGB)×960, QHD 221PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

62.046(W)×110.304(H) Mm

Work Mode:

AH3-IPS, Normally Black, Transmissive

Light Source:

No B/L

Good View At:

Symmetry

Designed For:

Mobile Phone

Supply Ability:

100000 Unit/Units per Month

Product Description

LH500M01-SH02 5.0 inch AH3-IPS LCD Screen Display

LH500M01-SH02 LCD Panel Product details :

Brand	LG Display
Model P/N	LH500M01-SH02
Diagonal Size	5.0"
Panel Type	a-Si TFT-LCD, CELL, Full Cell
Resolution	540(RGB)×960, qHD 221PPI
Pixel Format	RGB Vertical Stripe
Active Area	62.046(W)×110.304(H) mm
Bezel Opening	-
Outline Size	65.046(W)×117.404(H)×0.4(D) mm
Brightness	0 cd/m²
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Best View on	Symmetry
Glass Depth	0.20+0.20 mm
Display Colors	16.7M 72%NTSC
Frequency	60Hz
Weight	7.40±0.74g
Surface	Without Polarizer
Contrast Ratio	800:1 (Typ.) (TM)
Display Mode	AH3-IPS, Normally Black, Transmissive
Response Time	35 (Typ.)(Tr+Td)
Transmissivity	4.1% (Typ.)(with Polarizer)
Lamp Type	No B/L
Touch Screen	Without
Application	Mobile Phone
Driver IC	COGSuggest HX8389-B, NT35516, NT35517, OTM9605A, OTM9608A
Environment	Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C

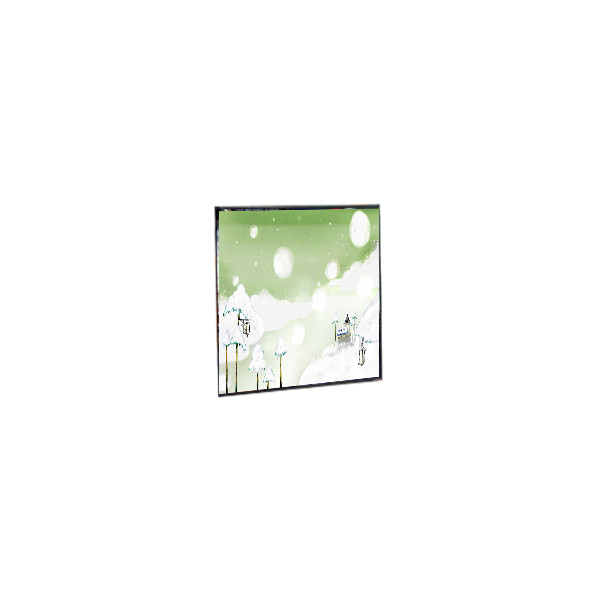

LH500M01-SH02 5.0 inch AH3-IPS LCD Screen Display

LH500M01-SH02 LCD Panel Notice:

Before placing your order for the LH500M01-SH02 LCD panel, please carefully check and confirm the following details to ensure compatibility with your laptop:

Screen Size: Verify that the screen size matches your laptop's requirements.

Resolution: Ensure the resolution is compatible with your laptop.

Backlight Type: Confirm that the backlight type is suitable for your laptop model.

Interface Type and Location: Check that the interface type and its location are appropriate for your laptop's design.

If you are unsure about any of these specifications, please feel free to contact us for assistance. We are here to help you make an informed decision and ensure you select the correct LCD panel for your needs.

Customs Declaration:

If you would like us to declare a lower price on the package to reduce or avoid customs tax, please inform us at the time of your order. However, please note that by requesting this, you assume the risk of any potential issues that may arise with customs authorities.

LH500M01-SH02 LCD Panel Shipping and Package :

LH500M01-SH02 LCD Panel Packing:

We take great care to ensure that the LH500M01-SH02 LCD panel is securely packed to prevent any damage during transit. The packing process involves multiple protective layers. First, the LCD panel is wrapped in a bubble bag, which provides a cushioned layer to absorb shocks and vibrations. This bubble bag acts as the first line of defense against impact.

Next, the bubble-wrapped LCD panel is placed inside a sturdy, strong box. This box is specifically chosen for its durability and ability to withstand external pressure. The combination of the bubble bag and the strong box ensures that the LCD panel remains intact and undamaged throughout its journey to you.

Additionally, we may include extra padding materials within the box to fill any voids and prevent the panel from shifting during transport. This meticulous packing process helps to ensure that the LH500M01-SH02 LCD panel arrives at your doorstep in perfect working condition, ready for immediate use.

LH500M01-SH02 LCD Panel Return Policy:

Inspection and Initial Reporting Period:

Upon receiving the LH500M01-SH02 LCD panel, customers have a 7-day window to inspect and install the product. It is crucial to thoroughly check the panel for any damage or issues during this period. If the product is found to be damaged or dead-on-arrival (DOA), customers must report these issues within the 7-day timeframe to qualify for a return or exchange.

Exchange Policy for Defective Products:

If the LH500M01-SH02 LCD panel exhibits any defects within 90 days of delivery, customers are eligible to exchange it for the exact same product. This policy ensures that you receive a fully functional panel without additional cost or hassle.

Different Product Exchange:

If a customer wishes to exchange the defective LCD panel for a different product, the process is treated as two separate transactions. First, the defective panel is returned, and a refund or credit is issued. Subsequently, the customer must place a new order for the desired product.

LH500M01-SH02 LCD Panel FAQ :

Q: How long is the warranty of LH500M01-SH02 ?

A: 90days warranty .

Q: Can you give me a discount if I need a large quantity of LH500M01-SH02 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Do you accept sample orders for LH500M01-SH02 ?

A: Of course!sample order is welcome !

Q: How long will I receive my goods of LH500M01-SH02 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
