LCD Screen Display Panel

New 23.8 inch MV238FHB-N32 LCD Panel Module

All Category

Floor Standing Digital Signage

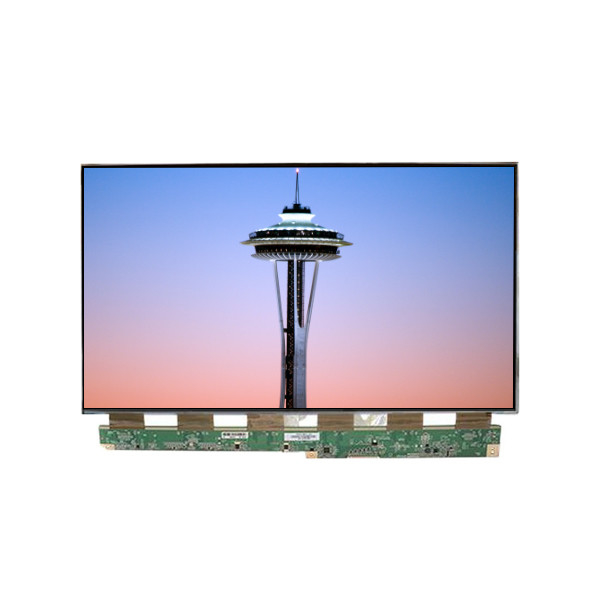

New 23.8 inch MV238FHB-N32 LCD Panel Module

Brand Name:	BOE
Model Number:	MV238FHB-N32
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

MV238FHB-N32

Diagonal Size:

23.8"

Panel Type:

A-Si TFT-LCD, CELL, FOB

Resolution:

1920(RGB)×1080, FHD 92PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

527.04(W)×296.46(H) Mm

Outline(mm):

534.04(W)×307.76(H)×1.32(D)

Viewing Angle:

89/89/89/89 (Typ.)(CR≥10)

Glass Thickness:

0.50+0.50 Mm

Used For:

Desktop Monitor

Supply Ability:

100000 Unit/Units per Month

Product Description

New 23.8 inch MV238FHB-N32 LCD Panel Module

MV238FHB-N32 LCD Panel Product details :

Brand	BOE
Model P/N	MV238FHB-N32
Diagonal Size	23.8"
Panel Type	a-Si TFT-LCD, CELL, FOB
Resolution	1920(RGB)×1080, FHD 92PPI
Pixel Format	RGB Vertical Stripe
Active Area	527.04(W)×296.46(H) mm
Bezel Opening	-
Outline(mm)	534.04(W)×307.76(H)×1.32(D)
Luminance	0 (cd/m²)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Good View at	Symmetry
Glass Thickness	0.50+0.50 mm
Color Depth	16.7M 74% NTSC
Mass	538g (Typ.)
Refresh Rate	60Hz
Treatment	Antiglare, Hard coating (3H)
Contrast Ratio	-
Work Mode	ADS, Normally Black, Transmissive
Response	14 (Typ.)(G to G) ms
Transmissivity	5.1% (Typ.)(with Polarizer)
Backlight	No B/L, No Driver
Used for	Desktop Monitor
Touchscreen	Without
Driver IC list	Built-inCOF4 source chips
Signal Type	LVDS (2 ch, 8-bit), 30 pins Connector
Voltage Supply	5.0V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

MV238FHB-N32 LCD Panel Note :

Model Verification:

Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.

Comprehensive Testing:

We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.

MV238FHB-N32 LCD Panel Shipping and Package :

New 23.8 inch MV238FHB-N32 LCD Panel Module 0

MV238FHB-N32 LCD Panel Shipping Guidelines:

Address Confirmation:

It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.

Shipment Timeline:

Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.

MV238FHB-N32 LCD Panel ESTIMATED DELIVERY TIME :

Standard Shipping:

The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.

Expedited Shipping:

For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.

MV238FHB-N32 LCD Panel FAQ :

Q: How to order MV238FHB-N32 ?

A: We accept T/T , PAYPAL , WESTERN UNION.

Q: When will ship my order of MV238FHB-N32 ?

A: The order are shipped within 1-2 working days after received the payment.

Q: Can you test 23.8 inch lcd panel MV238FHB-N32 before shipping ?

A: Don't Worry , Our lcd MV238FHB-N32 was tested ok before shipping

Q: Can you declared low value for my order lcd pane MV238FHB-N32 ?

A: Yes we can , but you need to leave message to us before shipping .
