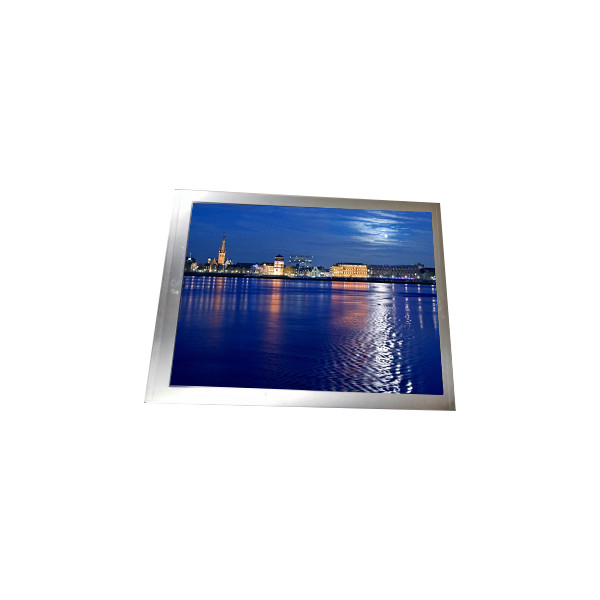

A081VW01 V1 8.1 inch 800*300 LCD Screen Display

Brand Name:	AUO
Model Number:	A081VW01 V1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

A081VW01 V1

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

800(RGB)×300, HSVGA 105PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

192(W)×72(H) Mm

Work Mode:

TN, Normally White, Transmissive

Light Source:

4S1P WLED , 10K Hours , Without Driver

Good View At:

6 O'clock

Designed For:

Gaming

Supply Ability:

100000 Unit/Units per Month

Product Description

A081VW01 V1 8.1 inch 800*300 LCD Screen Display

A081VW01 V1 LCD Panel Product details :

Brand	AUO
Model P/N	A081VW01 V1
Diagonal Size	8.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×300, HSVGA 105PPI
Pixel Format	RGB Vertical Stripe
Active Area	192(W)×72(H) mm
Bezel Opening	-
Outline Dim.	204.6(W)×86.2(H) mm
Treatment	Antiglare
Luminance	300 cd/m² (Typ.)
Contrast Ratio	300:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	10/20 (Typ.)(Tr/Td)
Viewing Angle	60/60/40/60 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	16.7M
Light Source	4S1P WLED , 10K hours , Without Driver
Panel Weight	225±22.5g
Designed For	Gaming
Frame Rate	60Hz
Touch Panel	4-wire Resistive Touch
Signal Interface	Parallel RGB (1 ch, 8-bit) + SPI , 60 pins FPC
Input Voltage	3.3/11.0/3.3/15.0/-7.0V (Typ.)(VDD/AVDD/GVCC/VGH/VGL)
Environment	Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -25 ~ 80 °C

A081VW01 V1 LCD Panel Notice:

Before placing your order for the A081VW01 V1 LCD panel, please carefully check and confirm the following details to ensure compatibility with your laptop:

Screen Size: Verify that the screen size matches your laptop's requirements.

Resolution: Ensure the resolution is compatible with your laptop.

Backlight Type: Confirm that the backlight type is suitable for your laptop model.

Interface Type and Location: Check that the interface type and its location are appropriate for your laptop's design.

If you are unsure about any of these specifications, please feel free to contact us for assistance. We are here to help you make an informed decision and ensure you select the correct LCD panel for your needs.

Customs Declaration:

If you would like us to declare a lower price on the package to reduce or avoid customs tax, please inform us at the time of your order. However, please note that by requesting this, you assume the risk of any potential issues that may arise with customs authorities.

A081VW01 V1 LCD Panel Shipping and Package :

A081VW01 V1 LCD Panel Packing:

We take great care to ensure that the A081VW01 V1 LCD panel is securely packed to prevent any damage during transit. The packing process involves multiple protective layers. First, the LCD panel is wrapped in a bubble bag, which provides a cushioned layer to absorb shocks and vibrations. This bubble bag acts as the first line of defense against impact.

Next, the bubble-wrapped LCD panel is placed inside a sturdy, strong box. This box is specifically chosen for its durability and ability to withstand external pressure. The combination of the bubble bag and the strong box ensures that the LCD panel remains intact and undamaged throughout its journey to you.

Additionally, we may include extra padding materials within the box to fill any voids and prevent the panel from shifting during transport. This meticulous packing process helps to ensure that the A081VW01 V1 LCD panel arrives at your doorstep in perfect working condition, ready for immediate use.

A081VW01 V1 LCD Panel Return Policy:

Inspection and Initial Reporting Period:

Upon receiving the A081VW01 V1 LCD panel, customers have a 7-day window to inspect and install the product. It is crucial to thoroughly check the panel for any damage or issues during this period. If the product is found to be damaged or dead-on-arrival (DOA), customers must report these issues within the 7-day timeframe to qualify for a return or exchange.

Exchange Policy for Defective Products:

If the A081VW01 V1 LCD panel exhibits any defects within 90 days of delivery, customers are eligible to exchange it for the exact same product. This policy ensures that you receive a fully functional panel without additional cost or hassle.

Different Product Exchange:

If a customer wishes to exchange the defective LCD panel for a different product, the process is treated as two separate transactions. First, the defective panel is returned, and a refund or credit is issued. Subsequently, the customer must place a new order for the desired product.

A081VW01 V1 LCD Panel FAQ :

Q: Do you accept sample orders of A081VW01 V1 ?

A: Of course! Sample order is welcome.

Q: Can I pay my order of A081VW01 V1 vai credit card?

A: Yes! You can use your credit card through your Paypal account.

Q: How long is the warranty ?

A: We offer 90 days warranty.

Q: If I place order now, when will you ship the goods of A081VW01 V1 ?

A: The order will be shipped within 2-3 working days after received your payment.
