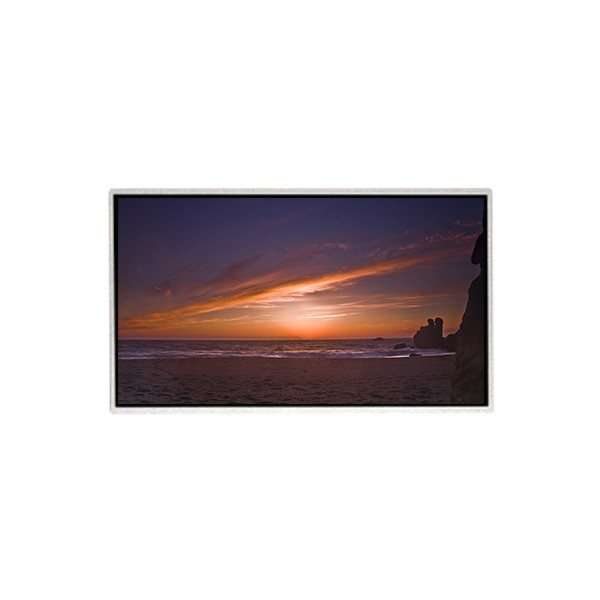

HM236WU1-100 23.6 inch 1080p TFT-LCD Screen Display

Brand Name:	BOE
Model Number:	HM236WU1-100
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

HM236WU1-100

Diagonal Size:

23.6"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1920(RGB)×1080, FHD 93PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

521.28(W)×293.22(H) Mm

Work Mode:

TN, Normally White, Transmissive

Light Source:

4 StringsWLED, 30K Hours, No Driver

Good View At:

6 O'clock

Designed For:

Desktop Monitor

Supply Ability:

100000 Unit/Units per Month

Product Description

HM236WU1-100 23.6 inch 1080p TFT-LCD Screen Display

HM236WU1-100 LCD Panel Product details :

Brand	BOE
Model P/N	HM236WU1-100
Diagonal Size	23.6"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 93PPI
Pixel Format	RGB Vertical Stripe
Active Area	521.28(W)×293.22(H) mm
Bezel Opening	525.22(W)×297.22(H) mm
Outline Size	544.8(W)×320.5(H)×9.6(D) mm
Treatment	Antiglare (Haze 25%), Hard coating (3H)
Luminance	250 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	85/85/80/80 (Typ.)(CR≥10)
Response	1.5/3.5 (Typ.)(Tr/Td) ms
Good View at	6 o'clock
Work Mode	TN, Normally White, Transmissive
Color Depth	16.7M 72%NTSC
Backlight	4 stringsWLED, 30K hours, No Driver
Mass	2.20Kgs (Typ.)
Used for	Desktop Monitor
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (2 ch, 8-bit), 30 pinsConnector
Voltage Supply	5.0V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

HM236WU1-100 LCD Panel Notice:

Before placing your order for the HM236WU1-100 LCD panel, please carefully check and confirm the following details to ensure compatibility with your laptop:

Screen Size: Verify that the screen size matches your laptop's requirements.

Resolution: Ensure the resolution is compatible with your laptop.

Backlight Type: Confirm that the backlight type is suitable for your laptop model.

Interface Type and Location: Check that the interface type and its location are appropriate for your laptop's design.

If you are unsure about any of these specifications, please feel free to contact us for assistance. We are here to help you make an informed decision and ensure you select the correct LCD panel for your needs.

Customs Declaration:

If you would like us to declare a lower price on the package to reduce or avoid customs tax, please inform us at the time of your order. However, please note that by requesting this, you assume the risk of any potential issues that may arise with customs authorities.

HM236WU1-100 LCD Panel Shipping and Package :

HM236WU1-100 LCD Panel Packing:

We take great care to ensure that the HM236WU1-100 LCD panel is securely packed to prevent any damage during transit. The packing process involves multiple protective layers. First, the LCD panel is wrapped in a bubble bag, which provides a cushioned layer to absorb shocks and vibrations. This bubble bag acts as the first line of defense against impact.

Next, the bubble-wrapped LCD panel is placed inside a sturdy, strong box. This box is specifically chosen for its durability and ability to withstand external pressure. The combination of the bubble bag and the strong box ensures that the LCD panel remains intact and undamaged throughout its journey to you.

Additionally, we may include extra padding materials within the box to fill any voids and prevent the panel from shifting during transport. This meticulous packing process helps to ensure that the HM236WU1-100 LCD panel arrives at your doorstep in perfect working condition, ready for immediate use.

HM236WU1-100 LCD Panel Return Policy:

Inspection and Initial Reporting Period:

Upon receiving the HM236WU1-100 LCD panel, customers have a 7-day window to inspect and install the product. It is crucial to thoroughly check the panel for any damage or issues during this period. If the product is found to be damaged or dead-on-arrival (DOA), customers must report these issues within the 7-day timeframe to qualify for a return or exchange.

Exchange Policy for Defective Products:

If the HM236WU1-100 LCD panel exhibits any defects within 90 days of delivery, customers are eligible to exchange it for the exact same product. This policy ensures that you receive a fully functional panel without additional cost or hassle.

Different Product Exchange:

If a customer wishes to exchange the defective LCD panel for a different product, the process is treated as two separate transactions. First, the defective panel is returned, and a refund or credit is issued. Subsequently, the customer must place a new order for the desired product.

HM236WU1-100 LCD Panel FAQ :

Q: Can I pay my order of HM236WU1-100 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can you give me a discount if I need a large quantity of HM236WU1-100 ?

A: Of course!If you make a large order, we will give you a discount.

Q: How can I trace my order of HM236WU1-100 ?

A: we will give you tracking number then you can trace your order from website.

Q: How long is the warranty ?

A: We offer 90 days warranty .
