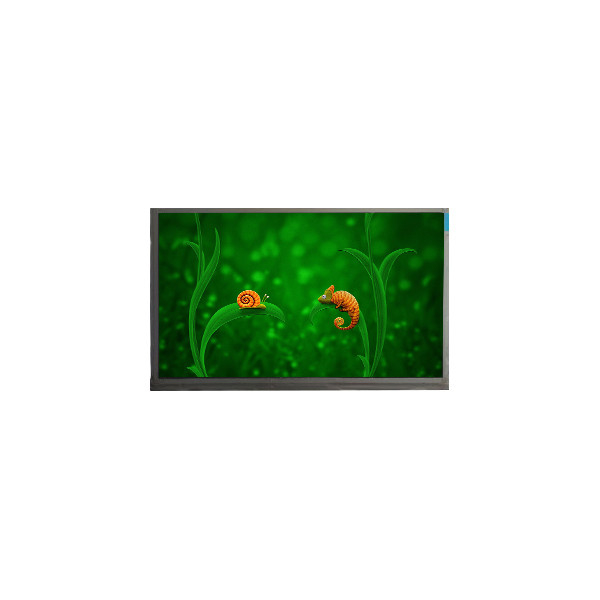

M200FGE-L23 20.0 inch 1600*900 LCD Screen Display

Brand Name:	Chimei Innolux
Model Number:	M200FGE-L23
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

M200FGE-L23

Diagonal Size:

20.0"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1600(RGB)×900, HD+ 91PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

442.8(W)×249.075(H) Mm

Operating Mode:

TN, Normally White, Transmissive

Light Source:

10S4P WLED , 50K Hours , No Driver

Good View At:

6 O'clock

Designed For:

Desktop Monitor

Supply Ability:

100000 Unit/Units per Month

Product Description

M200FGE-L23 20.0 inch 1600*900 LCD Screen Display

M200FGE-L23 LCD Panel Product details :

Brand	Chimei Innolux
Model P/N	M200FGE-L23
Diagonal Size	20.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1600(RGB)×900, HD+ 91PPI
Pixel Format	RGB Vertical Stripe
Active Area	442.8(W)×249.075(H) mm
Bezel Opening	446.8(W)×253.2(H) m
Outline Dim.	462.8×272×11 (H×V×D)
Treatment	Antiglare (Haze 25%), Hard coating (3H)
Luminance	200 cd/m² (Typ.)
Contrast Ratio	700 : 1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	1.5/3.5 (Typ.)(Tr/Td) ms
Viewing Angle	45/45/20/45 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	16.7M 72% NTSC
Light Source	10S4P WLED , 50K hours , No Driver
Mass	1.61/1.77Kgs (Typ./Max.)
Designed For	Desktop Monitor
Frame Rate	75Hz
Touch Panel	Without
Signal Type	LVDS (2 ch, 8-bit) , Connector 30 pins
Voltage Supply	5.0V (Typ.)
Environment	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

M200FGE-L23 LCD Panel Notice:

Before placing your order for the M200FGE-L23 LCD panel, please carefully check and confirm the following details to ensure compatibility with your laptop:

Screen Size: Verify that the screen size matches your laptop's requirements.

Resolution: Ensure the resolution is compatible with your laptop.

Backlight Type: Confirm that the backlight type is suitable for your laptop model.

Interface Type and Location: Check that the interface type and its location are appropriate for your laptop's design.

If you are unsure about any of these specifications, please feel free to contact us for assistance. We are here to help you make an informed decision and ensure you select the correct LCD panel for your needs.

Customs Declaration:

If you would like us to declare a lower price on the package to reduce or avoid customs tax, please inform us at the time of your order. However, please note that by requesting this, you assume the risk of any potential issues that may arise with customs authorities.

M200FGE-L23 LCD Panel Shipping and Package :

M200FGE-L23 LCD Panel Packing:

We take great care to ensure that the M200FGE-L23 LCD panel is securely packed to prevent any damage during transit. The packing process involves multiple protective layers. First, the LCD panel is wrapped in a bubble bag, which provides a cushioned layer to absorb shocks and vibrations. This bubble bag acts as the first line of defense against impact.

Next, the bubble-wrapped LCD panel is placed inside a sturdy, strong box. This box is specifically chosen for its durability and ability to withstand external pressure. The combination of the bubble bag and the strong box ensures that the LCD panel remains intact and undamaged throughout its journey to you.

Additionally, we may include extra padding materials within the box to fill any voids and prevent the panel from shifting during transport. This meticulous packing process helps to ensure that the M200FGE-L23 LCD panel arrives at your doorstep in perfect working condition, ready for immediate use.

M200FGE-L23 LCD Panel Return Policy:

Inspection and Initial Reporting Period:

Upon receiving the M200FGE-L23 LCD panel, customers have a 7-day window to inspect and install the product. It is crucial to thoroughly check the panel for any damage or issues during this period. If the product is found to be damaged or dead-on-arrival (DOA), customers must report these issues within the 7-day timeframe to qualify for a return or exchange.

Exchange Policy for Defective Products:

If the M200FGE-L23 LCD panel exhibits any defects within 90 days of delivery, customers are eligible to exchange it for the exact same product. This policy ensures that you receive a fully functional panel without additional cost or hassle.

Different Product Exchange:

If a customer wishes to exchange the defective LCD panel for a different product, the process is treated as two separate transactions. First, the defective panel is returned, and a refund or credit is issued. Subsequently, the customer must place a new order for the desired product.

M200FGE-L23 LCD Panel FAQ :

Q: How do you ship my goods M200FGE-L23 ?

A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.

Q: How long is the warranty of M200FGE-L23 ?

A: 90 days warranty .

Q: How can I trace my order of M200FGE-L23 ?

A: we will give you tracking number then you can trace your order form website.

Q: Can you give me a discount if I need a large quantity of M200FGE-L23 ?

A: Of course!If you make a large order, we will give you a discount.
