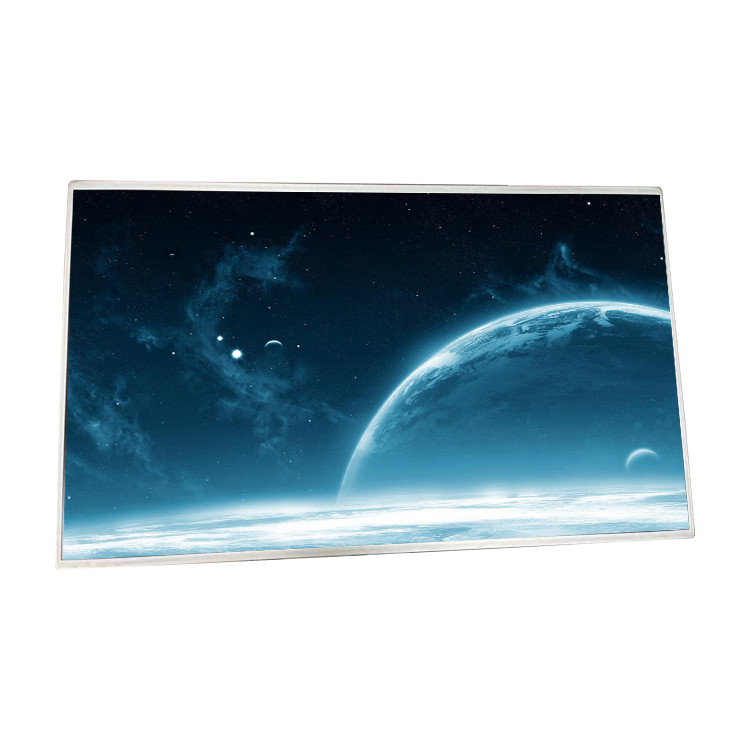

G320ZAN02.1 32.0 inch 3840*2160 LCD Display Panel Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G320ZAN02.1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | G320ZAN02.1 | Diagonal Size: | 32.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 240(RGB)×320, QVGA3840(RGB)×2160, UHD 137PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 708.48(W)×398.52(H) Mm |
| Bezel Opening: | 714.48(W)×404.52(H) Mm | Outline Size: | 727.3(W)×424.5(H)×20.98(D) Mm |
| Contrast Ratio: | 1350:1 (Typ.) (TM) | Application: | Industrial、Medical Imaging、Outdoor High Brightness |
Product Description
G320ZAN02.1 32.0 inch 3840*2160 LCD Display Panel Screen
G320ZAN02.1 LCD Panel Product details :
| Brand | AUO |
| Model P/N | G320ZAN02.1 |
| Diagonal Size | 32.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 3840(RGB)×2160, UHD 137PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 708.48(W)×398.52(H) mm |
| Bezel Opening | 714.48(W)×404.52(H) mm |
| Outline Size | 727.3(W)×424.5(H)×20.98(D) mm |
| Brightness | 850 cd/m² (Typ.) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Display Colors | 1.07B 94%NTSC |
| Frequency | 60Hz |
| Weight | 4.63Kgs (Typ.) |
| Surface | Antiglare |
| Contrast Ratio | 1350:1 (Typ.) (TM) |
| Display Mode | AHVA, Normally Black, Transmissive |
| Response Time | 18 (Typ.)(Tr+Td) |
| Lamp Type | WLED , 30K hours , With LED Driver |
| Touch Screen | Without |
| Application | Industrial,Medical Imaging,Outdoor High Brightness |
| Signal Interface | V-by-One 8 lane, 51 pinsConnector |
| Input Voltage | 12.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
G320ZAN02.1 LCD Panel Note :
Model Verification:
Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.
Comprehensive Testing:
We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.
G320ZAN02.1 LCD Panel Shipping and Package :
G320ZAN02.1 LCD Panel Shipping Guidelines:
Address Confirmation:
It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.
Shipment Timeline:
Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.
G320ZAN02.1 LCD Panel ESTIMATED DELIVERY TIME :
Standard Shipping:
The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.
Expedited Shipping:
For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.
G320ZAN02.1 LCD Panel FAQ :
Q: How to order lcd panel G320ZAN02.1 ?
A: We accept T/T , Paypal , western union .
Q: Can you tested the G320ZAN02.1 before shipping ?
A: Of course , 32.0 inch lcd screen G320ZAN02.1 was Strictly tested before shipping.
Q: What happen if the G320ZAN02.1 received can't work ?
A: G320ZAN02.1 lcd panel was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
Q: How long the warranty of the G320ZAN02.1 ?
A: 90 days .
