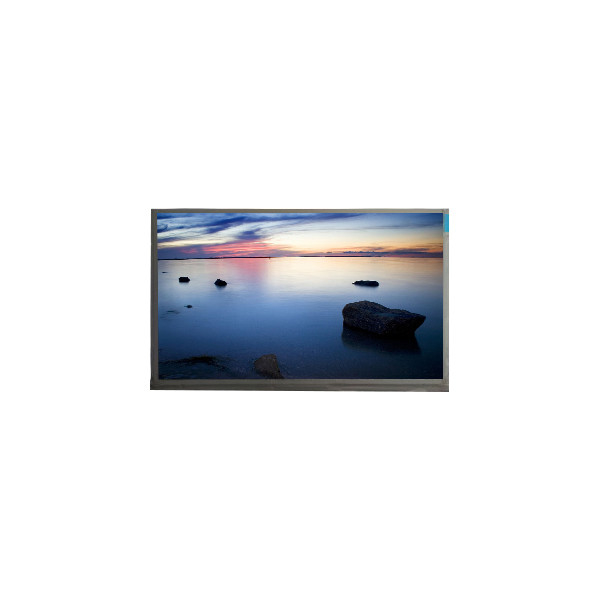

HB070NA-01S 7.0 inch 1024*600 LCD Screen Display

Brand Name:	Chimei Innolux
Model Number:	HB070NA-01S
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

HB070NA-01S

Diagonal Size:

Panel Type:

A-Si TFT-LCD, CELL , COG

Resolution:

1024(RGB)×600, WSVGA 169PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

153.6(W)×90(H) Mm

Operating Mode:

TN, Normally White, Transmissive

Support Color:

262K/16.7M

Good View At:

6 O'clock

Designed For:

Netbook PC， Portable Navigation ，Digital Photo Frame， Portable DVD Player ，MID UMPC

Supply Ability:

100000 Unit/Units per Month

Product Description

HB070NA-01S 7.0 inch 1024*600 LCD Screen Display

HB070NA-01S LCD Panel Product details :

Brand	Chimei Innolux
Model P/N	HB070NA-01S
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, CELL , COG
Resolution	1024(RGB)×600, WSVGA 169PPI
Pixel Format	RGB Vertical Stripe
Active Area	153.6(W)×90(H) mm
Bezel Opening	-
Outline Dim.	160(W)×101.1(H) ×1.43(D) mm
Treatment	Glare (Haze 0%)
Luminance	0 cd/m²
Contrast Ratio	700:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	10/15 (Typ.)(Tr/Td)
Viewing Angle	75/75/70/75 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Glass Depth	0.50+0.50 mm
Transmissivity	3.5% (Typ.)(with Polarizer)
Support Color	262K/16.7M
Light Source	No B/L
Shape Style	-
Designed For	Netbook PC, Portable Navigation ,Digital Photo Frame, Portable DVD Player ,MID UMPC
Frame Rate	60Hz
Touch Panel	Without
Interface Type	COG Built-in 1 source + 2 gate chips
Environment	Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

HB070NA-01S LCD Panel Notice:

Before placing your order for the HB070NA-01S LCD panel, please carefully check and confirm the following details to ensure compatibility with your laptop:

Screen Size: Verify that the screen size matches your laptop's requirements.

Resolution: Ensure the resolution is compatible with your laptop.

Backlight Type: Confirm that the backlight type is suitable for your laptop model.

Interface Type and Location: Check that the interface type and its location are appropriate for your laptop's design.

If you are unsure about any of these specifications, please feel free to contact us for assistance. We are here to help you make an informed decision and ensure you select the correct LCD panel for your needs.

Customs Declaration:

If you would like us to declare a lower price on the package to reduce or avoid customs tax, please inform us at the time of your order. However, please note that by requesting this, you assume the risk of any potential issues that may arise with customs authorities.

HB070NA-01S LCD Panel Shipping and Package :

HB070NA-01S LCD Panel Packing:

We take great care to ensure that the HB070NA-01S LCD panel is securely packed to prevent any damage during transit. The packing process involves multiple protective layers. First, the LCD panel is wrapped in a bubble bag, which provides a cushioned layer to absorb shocks and vibrations. This bubble bag acts as the first line of defense against impact.

Next, the bubble-wrapped LCD panel is placed inside a sturdy, strong box. This box is specifically chosen for its durability and ability to withstand external pressure. The combination of the bubble bag and the strong box ensures that the LCD panel remains intact and undamaged throughout its journey to you.

Additionally, we may include extra padding materials within the box to fill any voids and prevent the panel from shifting during transport. This meticulous packing process helps to ensure that the HB070NA-01S LCD panel arrives at your doorstep in perfect working condition, ready for immediate use.

HB070NA-01S LCD Panel Return Policy:

Inspection and Initial Reporting Period:

Upon receiving the HB070NA-01S LCD panel, customers have a 7-day window to inspect and install the product. It is crucial to thoroughly check the panel for any damage or issues during this period. If the product is found to be damaged or dead-on-arrival (DOA), customers must report these issues within the 7-day timeframe to qualify for a return or exchange.

Exchange Policy for Defective Products:

If the HB070NA-01S LCD panel exhibits any defects within 90 days of delivery, customers are eligible to exchange it for the exact same product. This policy ensures that you receive a fully functional panel without additional cost or hassle.

Different Product Exchange:

If a customer wishes to exchange the defective LCD panel for a different product, the process is treated as two separate transactions. First, the defective panel is returned, and a refund or credit is issued. Subsequently, the customer must place a new order for the desired product.

HB070NA-01S LCD Panel FAQ :

Q: Do you accept sample orders of HB070NA-01S ?

A: Of course! Sample order is welcome.

Q: Can I pay my order of HB070NA-01S vai credit card?

A: Yes! You can use your credit card through your Paypal account.

Q: How long is the warranty ?

A: We offer 90 days warranty.

Q: If I place order now, when will you ship the goods of HB070NA-01S ?

A: The order will be shipped within 2-3 working days after received your payment.
