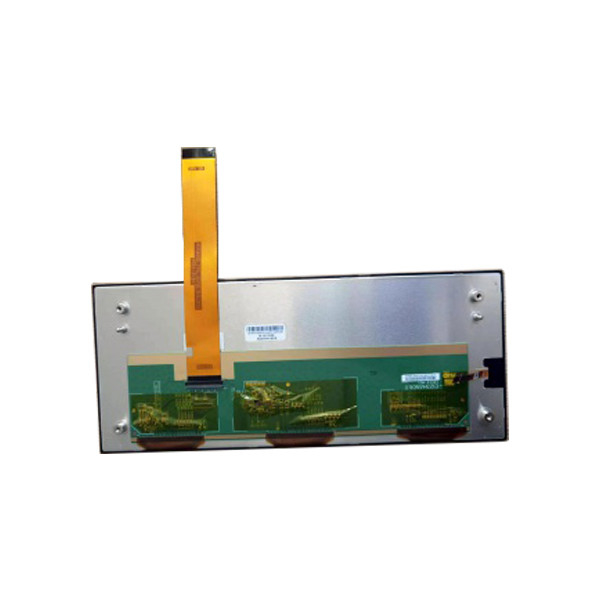

C123HAN03.1 12.3 Inch Lcd Screen Lcd Panel Monitor

Brand Name:	AUO
Model Number:	C123HAN03.1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

C123HAN03.1

Diagonal Size:

12.3"

Panel Type:

A-Si TFT-LCD, CELL, FOG

Resolution:

2400(RGB)×900 209PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

291.6(W)×109.35(H) Mm

Outline(mm):

299.6 × 120.3× 1.03 (H×V×D)

Treatment:

Hard Coating

Luminance:

0 Cd/m²

Used For:

Automotive Display

Supply Ability:

100000 Unit/Units per Month

Product Description

C123HAN03.1 12.3 Inch Lcd Screen Lcd Panel Monitor

C123HAN03.1 LCD Panel Product details :

Brand	AUO
Model P/N	C123HAN03.1
Diagonal Size	12.3"
Panel Type	a-Si TFT-LCD, CELL, FOG
Resolution	2400(RGB)×900 209PPI
Pixel Format	RGB Vertical Stripe
Active Area	291.6(W)×109.35(H) mm
Bezel Opening	-
Outline(mm)	299.6 × 120.3× 1.03 (H×V×D)
Treatment	Hard coating
Luminance	0 cd/m²
Contrast Ratio	1500 : 1 (Typ.) (TM)
Viewing Angle	-
Response	20 (Max.)(Tr+Td) ms
Good View at	Symmetry
Work Mode	AHVA, Normally Black, Transmissive
Glass Thickness	0.40+0.40 mm
Transmissivity	4.4% (Typ.)(with Polarizer)
Color Depth	16.7M NTSC
Backlight	No B/L
Mass	94.8g (Typ.)
Used for	Automotive Display
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (2 ch, 8-bit), 68 pins FPC
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 85 °C

C123HAN03.1 LCD Panel Note :

Model Verification:

Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.

Comprehensive Testing:

We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.

C123HAN03.1 LCD Panel Shipping and Package :

C123HAN03.1 12.3 Inch Lcd Screen Lcd Panel Monitor 0

C123HAN03.1 LCD Panel Shipping Guidelines:

Address Confirmation:

It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.

Shipment Timeline:

Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.

C123HAN03.1 LCD Panel ESTIMATED DELIVERY TIME :

Standard Shipping:

The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.

Expedited Shipping:

For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.

C123HAN03.1 LCD Panel FAQ :

Q: How long is the warranty of C123HAN03.1 ?

A: 90days warranty .

Q: How can I trace my order of C123HAN03.1 ?

A: we will give you tracking number then you can trace your order from website.

Q: Can I pay my goods C123HAN03.1 by credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Do you accept sample orders for C123HAN03.1 ?

A: Of course!sample order is welcome !
