LCD Laptop Screen

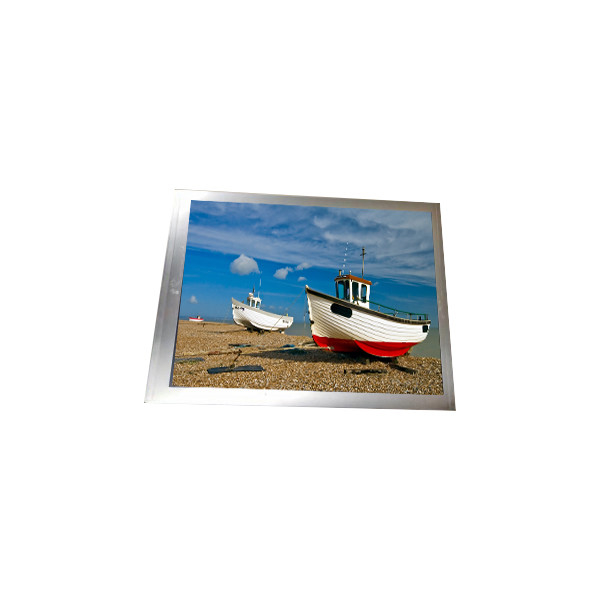

12.4 inch PNC357DB1-4 1600*2560 LCD Screen for Laptop

All Category

Floor Standing Digital Signage

12.4 inch PNC357DB1-4 1600*2560 LCD Screen for Laptop

Brand Name:	CSOT
Model Number:	PNC357DB1-4
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

PNC357DB1-4

Diagonal Size:

12.4"

Panel Type:

LTPS TFT-LCD, Assembly

Resolution:

1600(RGB)×2560, WQXGA 244PPI

Pixel Format:

RGB Vertical Stripe

Support Color:

16.7M 100% DCI-P3

Designed For:

Laptop /Pad & Tablet

Interface Type:

MIPI (4 Data Lanes) , 60 Pins Connector

Power Supply:

1.9/5.6/-5.6V (Typ.)(VDDI/AVDD/AVEE)

Environment:

Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

Supply Ability:

100000 Unit/Units per Month

Product Description

12.4 inch PNC357DB1-4 1600*2560 LCD Screen for Laptop

PNC357DB1-4 LCD Panel Product details :

Brand	CSOT
Model P/N	PNC357DB1-4
Diagonal Size	12.4"
Panel Type	LTPS TFT-LCD, Assembly
Resolution	1600(RGB)×2560, WQXGA 244PPI
Pixel Format	RGB Vertical Stripe
Active Area	166.224(W)×265.958(H) mm
Bezel Opening	-
Outline Dim.	187.52(W)×282.02(H) ×4.29(D) mm
Treatment	Glare (Haze 0%)
Luminance	-
Contrast Ratio	1400:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	22 (Typ.)(Tr+Td)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Operating Mode	FFS, Normally Black, Transmissive
Support Color	16.7M 100% DCI-P3
Light Source	8 strings WLED , 15K hours , Without Driver
Shape Style	-
Designed For	Laptop /Pad & Tablet
Frame Rate	60Hz
Touch Panel	Without
Interface Type	MIPI (4 data lanes) , 60 pins Connector
Power Supply	1.9/5.6/-5.6V (Typ.)(VDDI/AVDD/AVEE)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

PNC357DB1-4 LCD Panel Note :

Model Verification:

Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.

Comprehensive Testing:

We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.

PNC357DB1-4 LCD Panel Shipping and Package :

12.4 inch PNC357DB1-4 1600*2560 LCD Screen for Laptop 0

PNC357DB1-4 LCD Panel Shipping Guidelines:

Address Confirmation:

It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.

Shipment Timeline:

Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.

PNC357DB1-4 LCD Panel ESTIMATED DELIVERY TIME :

Standard Shipping:

The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.

Expedited Shipping:

For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.

PNC357DB1-4 LCD Panel FAQ :

Q: How to make payment of PNC357DB1-4 ?

A: We accept T/T , Paypal , western union .

Q: Can you give me a discount if I need a large quantity of PNC357DB1-4 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can You declare my order of PNC357DB1-4 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: Can I pay my order of PNC357DB1-4 via credit card ?

A: Yes!you can use your credit card through your Paypal account.
