LCD Screen Display Panel

23.8 inch 1920*1080 M238HCA-PCB LCD Screen Monitor

All Category

Floor Standing Digital Signage

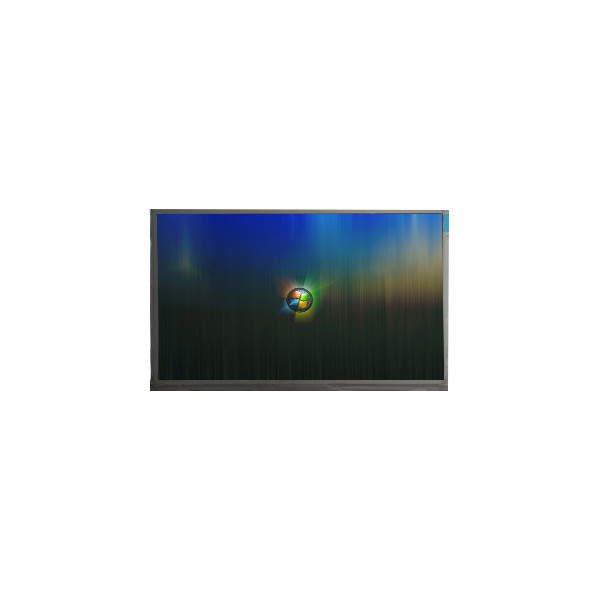

23.8 inch 1920*1080 M238HCA-PCB LCD Screen Monitor

Brand Name:	Innolux
Model Number:	M238HCA-PCB
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

M238HCA-PCB

Diagonal Size:

23.8"

Panel Type:

A-Si TFT-LCD, CELL, FOB

Resolution:

1920(RGB)×1080, FHD 92PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

527.04(W)×296.46(H) Mm

Designed For:

Desktop Monitor

Light Source:

No B/L

Support Color:

16.7M 83%sRGB

Transmittance:

5.95% (Typ.)(with Polarizer)

Supply Ability:

100000 Unit/Units per Month

Product Description

23.8 inch 1920*1080 M238HCA-PCB LCD Screen Monitor

M238HCA-PCB LCD Panel Product details :

Brand	Innolux
Model P/N	M238HCA-PCB
Diagonal Size	23.8"
Panel Type	a-Si TFT-LCD, CELL, FOB
Resolution	1920(RGB)×1080, FHD 92PPI
Pixel Format	RGB Vertical Stripe
Active Area	527.04(W)×296.46(H) mm
Bezel Opening	-
Outline Dim.	534.84(H)×306.46(V)×1.31(D) mm
Treatment	Antiglare (Haze 25%), Hard coating (3H)
Luminance	0 cd/m²
Contrast Ratio	1000:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	14 (Typ.)(G to G)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Operating Mode	AAS, Normally Black, Transmissive
Plate Thickness	0.50+0.50 mm
Transmittance	5.95% (Typ.)(with Polarizer)
Support Color	16.7M 83%sRGB
Light Source	No B/L
Weight	468/520/546g (Min./Typ./Max.)
Designed For	Desktop Monitor
Frame Rate	60Hz
Touch Panel	Without
D-IC Detail	COF Built-in 6 source chips
Interface Type	LVDS (2 ch, 8-bit), 30 pinsConnector
Power Supply	5.0V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

M238HCA-PCB LCD Panel Note :

Model Verification:

Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.

Comprehensive Testing:

We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.

M238HCA-PCB LCD Panel Shipping and Package :

23.8 inch 1920*1080 M238HCA-PCB LCD Screen Monitor 0

M238HCA-PCB LCD Panel Shipping Guidelines:

Address Confirmation:

It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.

Shipment Timeline:

Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.

M238HCA-PCB LCD Panel ESTIMATED DELIVERY TIME :

Standard Shipping:

The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.

Expedited Shipping:

For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.

M238HCA-PCB LCD Panel FAQ :

Q: How do you ship my goods M238HCA-PCB ?

A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.

Q: Are you manufactory or trade company ?

A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.

Q: Can You declare my order of lcd display screen M238HCA-PCB at a very low value ?

A: Yes , we can . pls inform us before shipping .

Q: How long is the warranty of M238HCA-PCB ?

A: 90 days warranty .
