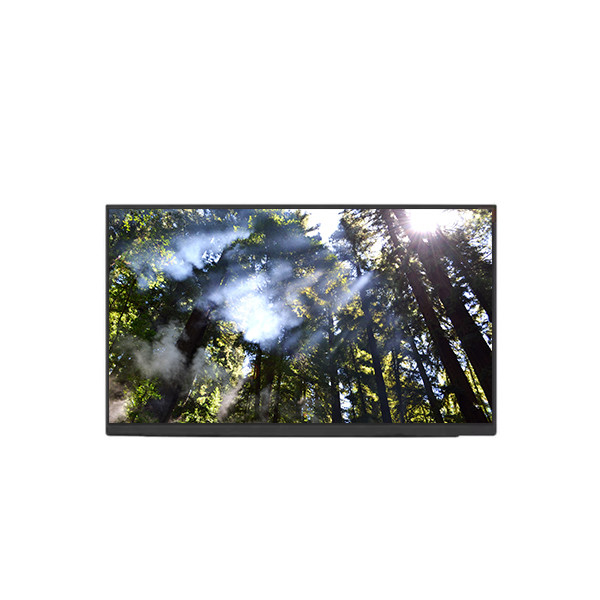

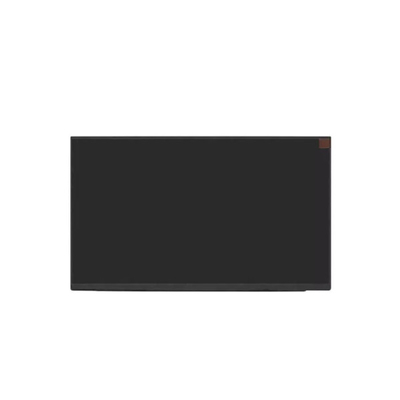

16.0 inch NE160WUM-NZ1 1920*1200 CELL LCD Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | NE160WUM-NZ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NE160WUM-NZ1 | Diagonal Size: | 16.0" |
|---|---|---|---|
| Panel Type: | Oxide TFT-LCD, LCM | Resolution: | 1920(RGB)×1200, WUXGA 141PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 344.68(W)×215.42(H) Mm |
| Application: | Laptop、Gaming | Refresh Rate: | 480Hz |
| Outline Shape: | Slim (PCBA Flat, T≤3.2mm) | Signal Type: | EDP (4 Lanes), EDP1.4 , HBR2 (5.4G/lane) , 40 PinsConnector |
Product Description
16.0 inch NE160WUM-NZ1 1920*1200 CELL LCD Display Panel
NE160WUM-NZ1 LCD Panel Product details :
| Brand | BOE |
| Model P/N | NE160WUM-NZ1 |
| Diagonal Size | 16.0" |
| Panel Type | Oxide TFT-LCD, LCM |
| Resolution | 1920(RGB)×1200, WUXGA 141PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 344.68(W)×215.42(H) mm |
| Bezel Opening | - |
| Outline Size | 349.68(W)×234.42(H)×2.2(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 9 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | ADS, Normally Black, Transmissive |
| Color Depth | 16.7M 100%DCI-P3 |
| Backlight | WLED, 15K hours, With LED Driver |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Used for | Laptop,Gaming |
| Refresh Rate | 480Hz |
| Touchscreen | Without |
| Signal Type | eDP (4 Lanes), eDP1.4 , HBR2 (5.4G/lane) , 40 pinsConnector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
