products details

Home > Products >

LCD Screen Display Panel

New 23.0 inch 2560*1080 UF233VUB-F10 LCD Screen Monitor

All Category

Floor Standing Digital Signage

New 23.0 inch 2560*1080 UF233VUB-F10 LCD Screen Monitor

Brand Name:	BOE
Model Number:	UF233VUB-F10
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

UF233VUB-F10

Diagonal Size:

23.0"

Panel Type:

Oxide TFT-LCD, CELL, FOB

Resolution:

2560(RGB)×1080 119PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

545.28(W)×230.04(H) Mm

Application:

Desktop Monitor

Driver IC:

COFBuilt-in 8 Source Chips

Signal Interface:

LVDS (2 Ch, 8-bit) , HBR2 (5.4G/lane) , 51 PinsConnector

Input Voltage:

12V (Typ.)

Supply Ability:

100000 Unit/Units per Month

Product Description

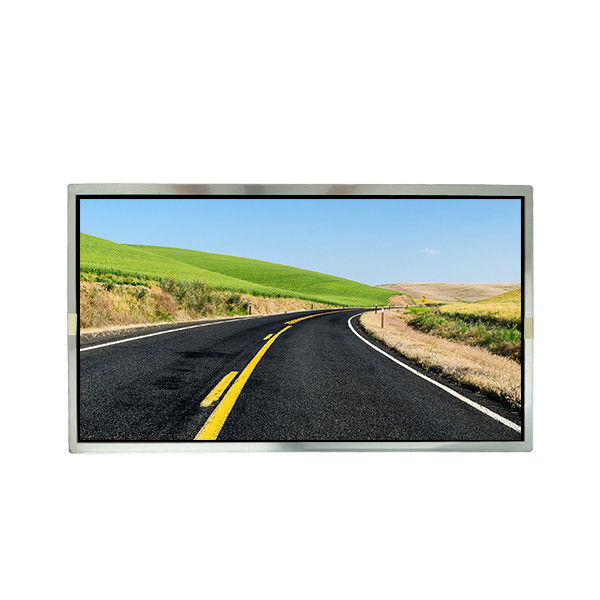

New 23.0 inch 2560*1080 UF233VUB-F10 LCD Screen Monitor

UF233VUB-F10 LCD Panel Product details :

Brand	BOE
Model P/N	UF233VUB-F10
Diagonal Size	23.0"
Panel Type	Oxide TFT-LCD, CELL, FOB
Resolution	2560(RGB)×1080 119PPI
Pixel Format	RGB Vertical Stripe
Active Area	545.28(W)×230.04(H) mm
Bezel Opening	-
Outline Size	556.28(W)×243.54(H)×1.31(D) mm
Brightness	0 cd/m²
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Best View on	Symmetry
Glass Depth	0.50+0.50 mm
Display Colors	16.7M 73%NTSC
Frequency	60Hz
Weight	420g (Typ.)
Surface	Antiglare (Haze 25%), Hard coating (2H)
Contrast Ratio	4000:1 (Typ.) (TM)
Display Mode	UV2A, Normally Black, Transmissive
Response Time	15 (Typ.)(G to G)
Transmissivity	4.0% (Typ.)(with Polarizer)
Lamp Type	No B/L
Touch Screen	Without
Application	Desktop Monitor
Driver IC	COFBuilt-in 8 source chips
Signal Interface	LVDS (2 ch, 8-bit) , HBR2 (5.4G/lane) , 51 pinsConnector
Input Voltage	12V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C

UF233VUB-F10 LCD Screen Regarding Us:

For over a decade, we have been a trusted name in the Chinese market, specializing in the sale of high-quality LCD screens. Our extensive experience and dedication have allowed us to cater to a diverse range of industries, particularly focusing on industrial and medical applications. Whether you need compact screens as small as 0.5 inches or larger displays up to 88 inches, we have a broad selection to meet your requirements.

Our Product Range

We offer a comprehensive range of LCD screens from some of the most renowned and reliable brands in the industry. Our inventory includes:

Hitachi: Known for their durable and high-performance displays.

Samsung: Leading the market with cutting-edge technology and innovation.

Sharp: Renowned for their crystal-clear display quality and reliability.

NEC: A preferred choice for professional-grade monitors and displays.

Tianma: Recognized for their advanced industrial display solutions.

AUO: Providing a wide range of sizes and applications.

Fujitsu: Offering robust and efficient LCD solutions.

Kyocera: Known for their long-lasting and high-quality displays.

Technical Support

Beyond just providing screens, we also offer partial technical support to ensure that you can make the most out of your purchase. Our technical team is always ready to assist you with installation, troubleshooting, and any other technical queries you might have. We are committed to ensuring that our customers not only receive top-tier products but also the support they need to operate them efficiently.

UF233VUB-F10 LCD Panel Shipping and Package :

New 23.0 inch 2560*1080 UF233VUB-F10 LCD Screen Monitor 0

UF233VUB-F10 LCD Screen Shipping Information:

Quality Assurance

Before shipping, we conduct rigorous testing on all our LCD screens to ensure they meet our high standards of quality and performance. This thorough testing process helps us guarantee that you receive a product that is in perfect working condition.

Shipping Timeline

Once your payment is confirmed, we will proceed with the shipping process. Typically, we ship orders within 1-3 working days. Please be assured that we prioritize efficiency and aim to get your order to you as quickly as possible.

Shipping Address

We ship orders according to the shipping address provided at the time of purchase. If you need to change the shipping address, please contact us promptly to update your information before we dispatch your order. It's crucial to inform us in advance to avoid any shipping delays or errors.

Estimated Delivery Time

The delivery time for your order may vary depending on your location. Generally, you can expect your package to arrive within 7-30 days. Delivery times can differ significantly between countries due to factors such as customs processing and local postal services.

UF233VUB-F10 LCD Screen Returns Policy :

30-Day Money Back Guarantee

If you are not entirely satisfied with your LCD screen purchase, you can return it within 30 days of the purchase date for a full refund.

Return Process

Contact Us: To initiate a return, please contact our customer service team. Provide your purchasing information, including the order number and any other details that were sent to you at the time of purchase. This information helps us process your return efficiently.

Return Period: Ensure that your return is made within 30 days from the date of purchase. Returns made after this period may not be eligible for a refund.

Important Notes

The returned item must be in its original condition, including all accessories and packaging materials.

We recommend using a trackable shipping method for your return to ensure that it reaches us safely.

Once we receive and inspect the returned item, we will process your refund. Please allow a few business days for the refund to appear in your account.

UF233VUB-F10 LCD Panel FAQ :

Q: How to make payment of UF233VUB-F10 ?

A: We accept T/T , Paypal , western union .

Q: If I place order now,when will you ship the goods of UF233VUB-F10 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Can You declare my order of UF233VUB-F10 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How long is the warranty ?

A: We offer 90 days warranty .
