23.8 inch MV238FHB-NX0 1920*1080 LCD Display Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | MV238FHB-NX0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | MV238FHB-NX0 | Diagonal Size: | 23.8" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, FOB | Resolution: | 1920(RGB)×1080, FHD 92PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 527.04(W)×296.46(H) Mm |
| Application: | Desktop Monitor | Driver IC: | COFBuilt-in 8 Source Chips |
| Glass Depth: | 0.50+0.50 Mm | Transmissivity: | 5.5% (Typ.)(with Polarizer) |
Product Description

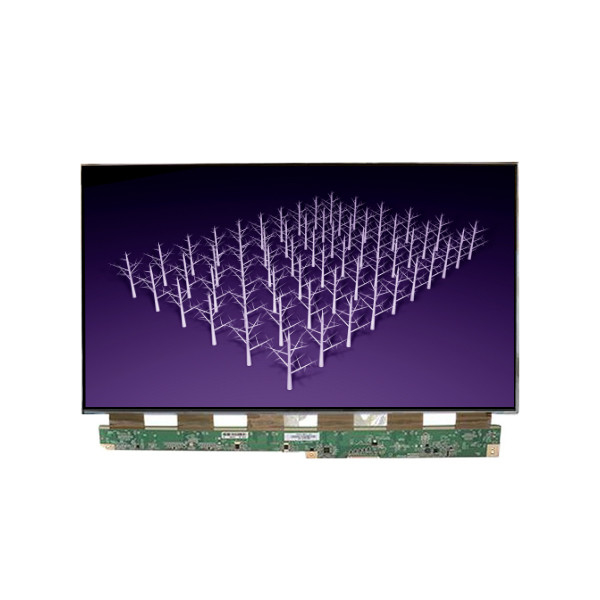

23.8 inch MV238FHB-NX0 1920*1080 LCD Display Screen
MV238FHB-NX0 LCD Panel Product details :
| Brand | BOE |
| Model P/N | MV238FHB-NX0 |
| Diagonal Size | 23.8" |
| Panel Type | a-Si TFT-LCD, CELL, FOB |
| Resolution | 1920(RGB)×1080, FHD 92PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 527.04(W)×296.46(H) mm |
| Bezel Opening | - |
| Outline Size | 534.64(W)×308.06(H)×1.32(D) mm |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 0 cd/m² |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | ADS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 14 (Typ.)(G to G) |
| Glass Depth | 0.50+0.50 mm |
| Transmissivity | 5.5% (Typ.)(with Polarizer) |
| Display Colors | 16.7M 99%sRGB |
| Lamp Type | No B/L, Without Driver |
| Frequency | 100Hz |
| Touch Screen | Without |
| Driver IC | COFBuilt-in 8 source chips |
| Panel Weight | 0.48Kgs |
| Application | Desktop Monitor |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pins Connector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
