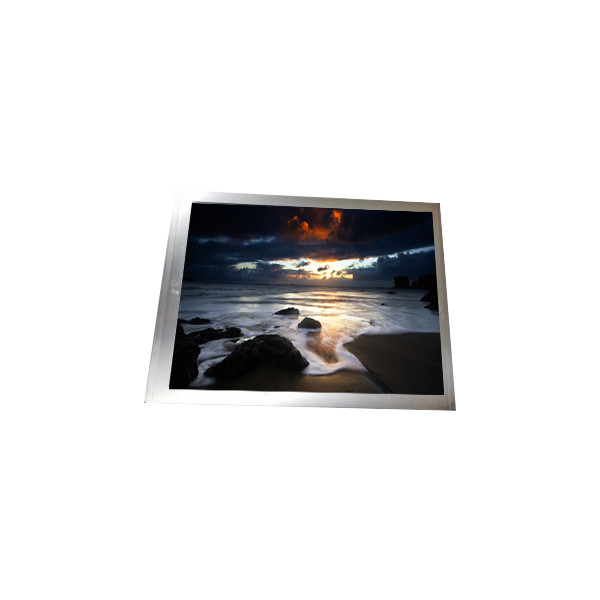

NEW TM103XDHP02-05 10.3 inch LCD Display Monitor

All Category

Floor Standing Digital Signage

NEW TM103XDHP02-05 10.3 inch LCD Display Monitor

Brand Name:	TIANMA
Model Number:	TM103XDHP02-05
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TM103XDHP02-05

Diagonal Size:

10.3"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1920(RGB)×720 200PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

243.648(W)×91.368(H) Mm

Bezel Opening:

246.65(W)×94.37(H) Mm

Outline Dim.:

275(W)×110(H) ×19.9(D) Mm

Support Color:

16.7M 72% NTSC

Designed For:

Outdoor High Brightness /Automotive Display

Supply Ability:

100000 Unit/Units per Month

Product Description

NEW TM103XDHP02-05 10.3 inch LCD Display Monitor

TM103XDHP02-05 LCD Panel Product details :

Brand	TIANMA
Model P/N	TM103XDHP02-05
Diagonal Size	10.3"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×720 200PPI
Pixel Format	RGB Vertical Stripe
Active Area	243.648(W)×91.368(H) mm
Bezel Opening	246.65(W)×94.37(H) mm
Outline Dim.	275(W)×110(H) ×19.9(D) mm
Treatment	Antiglare, Hard coating (2H), Reflection 6.0% (Max.)
Luminance	1000 cd/m² (Min.)
Contrast Ratio	1000:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	30 (Max.)(Tr+Td)
Viewing Angle	88/88/88/88 (Typ.)(CR≥10)
Operating Mode	SFT, Normally Black, Transmissive
Support Color	16.7M 72% NTSC
Light Source	8S4P WLED , 10K hours , Without Driver
Weight	TBD
Designed For	Outdoor High Brightness /Automotive Display
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (2 ch, 8-bit) , 50 pins FPC
Power Supply	3.3V (Typ.)
Environment	Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C ; Vibration Level: 3.0G (29.4 m/s²)
