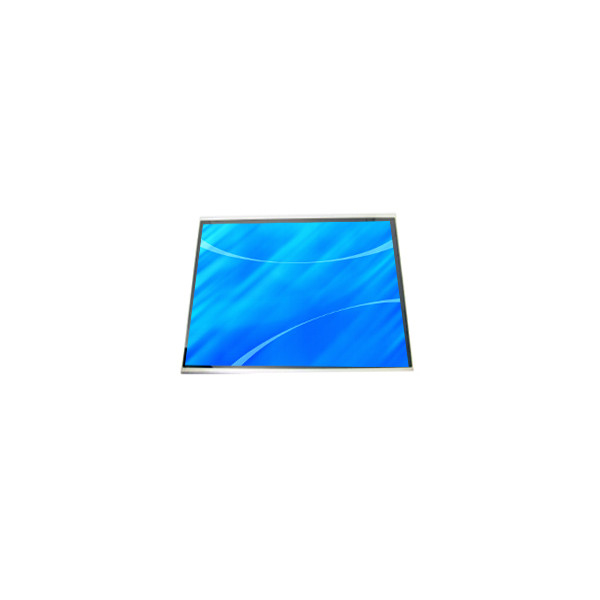

HSD053F8W1-C00 5.3 inch a-Si TFT-LCD Screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD053F8W1-C00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD053F8W1-C00 | Diagonal Size: | 5.3" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, Full Cell | Resolution: | 480(RGB)×854, FWVGA 186PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 65.52(W)×116.571(H) Mm |
| Operating Mode: | TN, Normally White, Transmissive | Support Color: | 16.7M 60%NTSC |
| View Direction: | 12 O'clock | Designed For: | Mobile Phone |
Product Description
HSD053F8W1-C00 5.3 inch a-Si TFT-LCD Screen Display
HSD053F8W1-C00 LCD Panel Product details :
| Brand | HannStar |
| Model P/N | HSD053F8W1-C00 |
| Diagonal Size | 5.3" |
| Panel Type | a-Si TFT-LCD, CELL, Full Cell |
| Resolution | 480(RGB)×854, FWVGA 186PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 65.52(W)×116.571(H) mm |
| Bezel Opening | - |
| Outline Size | 68.61(W)×124.68(H)×0.5(D) mm |
| Surface | Without Polarizer |
| Brightness | 0 cd/m² |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| Viewing Angle | 70/70/70/60 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 12 o'clock |
| Response Time | 4/12 (Typ.)(Tr/Td) |
| Glass Depth | 0.25+0.25 mm |
| Transmissivity | 14.07% (Typ.)(without Polarizer) |
| Display Colors | 16.7M 60%NTSC |
| Lamp Type | No B/L |
| Frequency | - |
| Touch Screen | Without |
| Driver IC | COG Suggest HX8379-A, NT35510, NT35510S, NT35512, OTM8009A, OTM8018B, RM68171, RM68180 |
| Panel Weight | - |
| Application | Mobile Phone |
| Environment | Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C |
