HSD070FFW3-B01 7.0 inch 1024*600 LCD Screen Display

Brand Name:	HannStar
Model Number:	HSD070FFW3-B01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

HSD070FFW3-B01

Diagonal Size:

Panel Type:

A-Si TFT-LCD, CELL, Full Cell

Resolution:

1024(RGB)×600, WSVGA 169PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

153.6(W)×90(H) Mm

Operating Mode:

TN, Normally White, Transmissive

Support Color:

16.7M

View Direction:

6 O'clock

Designed For:

Portable Navigation、Digital Photo Frame、Portable DVD Player、MID UMPC

Supply Ability:

100000 Unit/Units per Month

Product Description

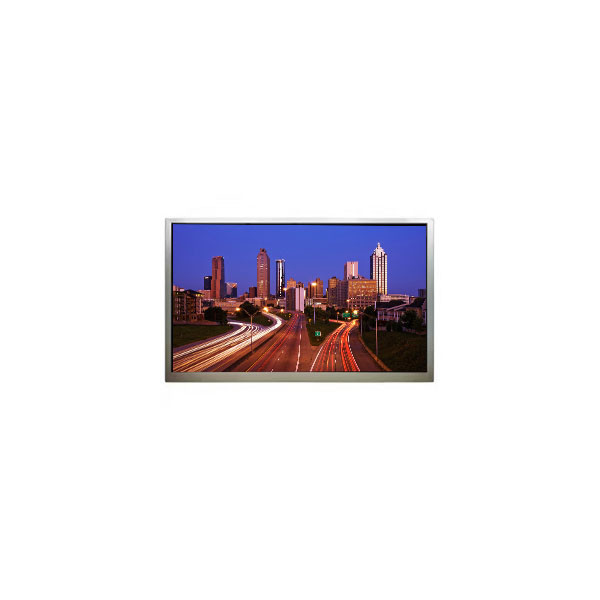

HSD070FFW3-B01 7.0 inch 1024*600 LCD Screen Display

HSD070FFW3-B01 LCD Panel Product details :

Brand	HannStar
Model P/N	HSD070FFW3-B01
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, CELL, Full Cell
Resolution	1024(RGB)×600, WSVGA 169PPI
Pixel Format	RGB Vertical Stripe
Active Area	153.6(W)×90(H) mm
Bezel Opening	-
Outline Dim.	161.95(H)×99.22(V)×0.8(D) mm
Treatment	Without Polarizer
Luminance	0 cd/m²
Contrast Ratio	800:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	4/12 (Typ.)(Tr/Td)
Viewing Angle	80/80/70/80 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Plate Thickness	0.40+0.40 mm
Transmittance	11.46% (Typ.)(without Polarizer)
Support Color	16.7M
Light Source	No B/L
Weight	-
Designed For	Portable Navigation,Digital Photo Frame,Portable DVD Player,MID UMPC
Frame Rate	60Hz
Touch Panel	Without
D-IC Detail	COG Suggest EK79001BCGA + EK73215ACGA, ILI6150H1-9G + ILI5120-9G
Power Supply	3.3/11/20/-6.8V (Typ.)(VDD/AVDD/VGH/VGL)
Environment	Operating Temperature: -20 ~ 60 °C; Storage Temperature: -30 ~ 70 °C

HSD070FFW3-B01 LCD Screen Regarding Us:

For over a decade, we have been a trusted name in the Chinese market, specializing in the sale of high-quality LCD screens. Our extensive experience and dedication have allowed us to cater to a diverse range of industries, particularly focusing on industrial and medical applications. Whether you need compact screens as small as 0.5 inches or larger displays up to 88 inches, we have a broad selection to meet your requirements.

Our Product Range

We offer a comprehensive range of LCD screens from some of the most renowned and reliable brands in the industry. Our inventory includes:

Hitachi: Known for their durable and high-performance displays.

Samsung: Leading the market with cutting-edge technology and innovation.

Sharp: Renowned for their crystal-clear display quality and reliability.

NEC: A preferred choice for professional-grade monitors and displays.

Tianma: Recognized for their advanced industrial display solutions.

AUO: Providing a wide range of sizes and applications.

Fujitsu: Offering robust and efficient LCD solutions.

Kyocera: Known for their long-lasting and high-quality displays.

Technical Support

Beyond just providing screens, we also offer partial technical support to ensure that you can make the most out of your purchase. Our technical team is always ready to assist you with installation, troubleshooting, and any other technical queries you might have. We are committed to ensuring that our customers not only receive top-tier products but also the support they need to operate them efficiently.

HSD070FFW3-B01 LCD Panel Shipping and Package :

HSD070FFW3-B01 7.0 inch 1024*600 LCD Screen Display 0

HSD070FFW3-B01 LCD Screen Shipping Information:

Quality Assurance

Before shipping, we conduct rigorous testing on all our LCD screens to ensure they meet our high standards of quality and performance. This thorough testing process helps us guarantee that you receive a product that is in perfect working condition.

Shipping Timeline

Once your payment is confirmed, we will proceed with the shipping process. Typically, we ship orders within 1-3 working days. Please be assured that we prioritize efficiency and aim to get your order to you as quickly as possible.

Shipping Address

We ship orders according to the shipping address provided at the time of purchase. If you need to change the shipping address, please contact us promptly to update your information before we dispatch your order. It's crucial to inform us in advance to avoid any shipping delays or errors.

Estimated Delivery Time

The delivery time for your order may vary depending on your location. Generally, you can expect your package to arrive within 7-30 days. Delivery times can differ significantly between countries due to factors such as customs processing and local postal services.

HSD070FFW3-B01 LCD Screen Returns Policy :

30-Day Money Back Guarantee

If you are not entirely satisfied with your LCD screen purchase, you can return it within 30 days of the purchase date for a full refund.

Return Process

Contact Us: To initiate a return, please contact our customer service team. Provide your purchasing information, including the order number and any other details that were sent to you at the time of purchase. This information helps us process your return efficiently.

Return Period: Ensure that your return is made within 30 days from the date of purchase. Returns made after this period may not be eligible for a refund.

Important Notes

The returned item must be in its original condition, including all accessories and packaging materials.

We recommend using a trackable shipping method for your return to ensure that it reaches us safely.

Once we receive and inspect the returned item, we will process your refund. Please allow a few business days for the refund to appear in your account.

HSD070FFW3-B01 LCD Panel FAQ :

Q: Can you test the lcd panel HSD070FFW3-B01 before shipping ?

A: Yes , of course , don't worry , our item was tested ok before shipping .

Q: Do you accept the sample order HSD070FFW3-B01 ?

A: Yes , sample order is welcome.

Q: Can you declared low value of my order HSD070FFW3-B01 ?

A: Yes , we can , you can tell us before shipping .

Q: How long the warranty of lcd HSD070FFW3-B01 ?

A: 90 days .
