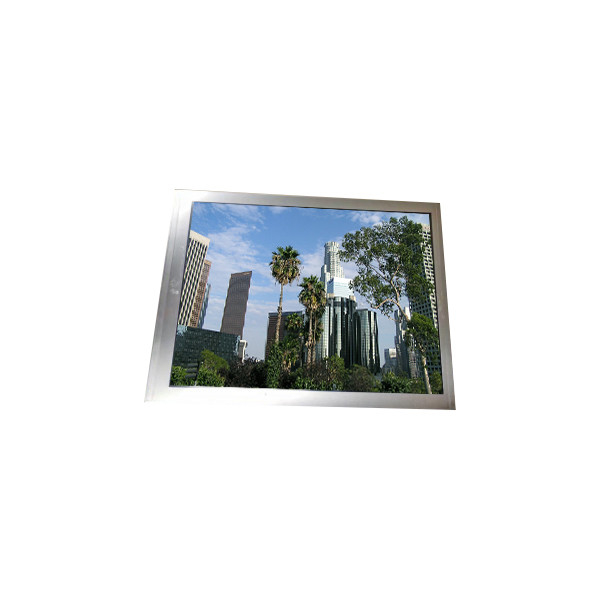

Name: Original DV238FHB-R01 23.8 inch LCD Display Monitor
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: DV238FHB-R01
Availability: InStock

Brand Name:	BOE
Model Number:	DV238FHB-R01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

DV238FHB-R01

Diagonal Size:

23.8"

Panel Type:

A-Si TFT-LCD, CELL , FOB

Resolution:

1920(RGB)×1080, FHD 92PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

527.04(W)×296.46(H) Mm

Outline Dim.:

534.04(H)×307.76(V) ×1.34(D) Mm

Treatment:

Antiglare (Haze 25%), Hard Coating (3H)

Luminance:

0 Cd/m²

Designed For:

Digital Signage

Supply Ability:

100000 Unit/Units per Month

Product Description

Original DV238FHB-R01 23.8 inch LCD Display Monitor

DV238FHB-R01 LCD Panel Product details :

Brand	BOE
Model P/N	DV238FHB-R01
Diagonal Size	23.8"
Panel Type	a-Si TFT-LCD, CELL , FOB
Resolution	1920(RGB)×1080, FHD 92PPI
Pixel Format	RGB Vertical Stripe
Active Area	527.04(W)×296.46(H) mm
Bezel Opening	-
Outline Dim.	534.04(H)×307.76(V) ×1.34(D) mm
Treatment	Antiglare (Haze 25%), Hard coating (3H)
Luminance	0 cd/m²
Contrast Ratio	1000:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	14 (Typ.)(G to G)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Operating Mode	ADS, Normally Black, Transmissive
Plate Thickness	0.50+0.50 mm
Transmittance	5.1% (Typ.)(with Polarizer)
Support Color	16.7M
Light Source	No B/L
Weight	520g (Typ.)
Designed For	Digital Signage
Frame Rate	60Hz
Touch Panel	Without
D-IC Detail	COF Built-in 4 source chips
Interface Type	LVDS (2 ch, 8-bit) , 51 pins Connector
Power Supply	5.0V (Typ.)
Environment	Operating Temperature: -20 ~ 50 °C ; Storage Temperature: -30 ~ 60 °C

DV238FHB-R01 LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

DV238FHB-R01 LCD Panel Shipping and Package :

Original DV238FHB-R01 23.8 inch LCD Display Monitor 0

DV238FHB-R01 LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

DV238FHB-R01 LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

DV238FHB-R01 LCD Panel FAQ :

Q: How can I trace my order of DV238FHB-R01 ?

A: we will give you tracking number then you can trace your order from website.

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: Can you give me a discount if I need a large quantity of DV238FHB-R01 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can I pay my order of DV238FHB-R01 via credit card ?

A: Yes!you can use your credit card through your Paypal account
