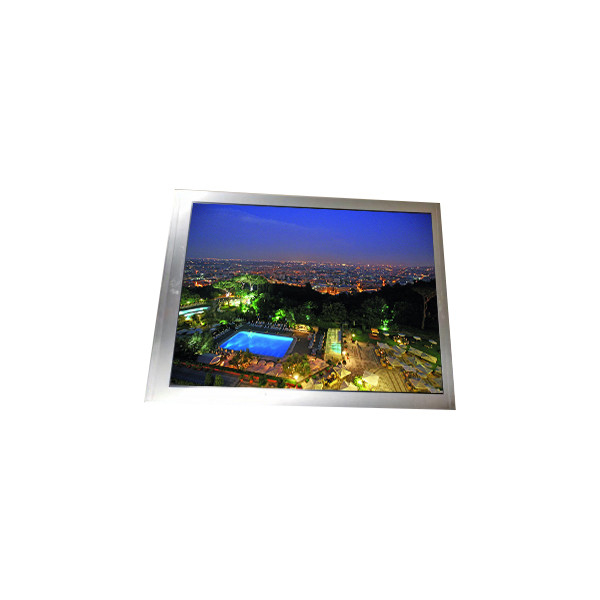

NEW TV160DKT-NH0 16.0 inch LCD Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | TV160DKT-NH0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TV160DKT-NH0 | Diagonal Size: | 16.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 2520(RGB)×1680 189PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 338.31(W)×225.54(H) Mm |
| Outline Dim.: | 343.61(W)×235.19(H) ×2.46(D) Mm | Luminance: | 330 Cd/m² (Typ.) |
| Contrast Ratio: | 1500:1 (Typ.) (TM) | Designed For: | Laptop |
Product Description
NEW TV160DKT-NH0 16.0 inch LCD Display Panel
TV160DKT-NH0 LCD Panel Product details :
| Brand | BOE |
| Model P/N | TV160DKT-NH0 |
| Diagonal Size | 16.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 2520(RGB)×1680 189PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 338.31(W)×225.54(H) mm |
| Bezel Opening | - |
| Outline Dim. | 343.61(W)×235.19(H) ×2.46(D) mm |
| Treatment | Glare (Haze 0%), Hard coating (3H) |
| Luminance | 330 cd/m² (Typ.) |
| Contrast Ratio | 1500:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | IPS, Normally Black, Transmissive |
| Support Color | 1.07B 100% sRGB |
| Light Source | 12S6P WLED , Without Driver |
| Shape Style | - |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | eDP (4 Lanes) , eDP1.4 Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temp.: -10 ~ 50 °C ; Storage Temp.: -20 ~ 65 °C |
TV160DKT-NH0 LCD Display Features :
High Quality:
Highest quality touch LCD screen replacement parts.
Repair Utility:
Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.
Thorough Testing:
Each assembly is tested before shipping to ensure 100% functionality.
Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.
TV160DKT-NH0 LCD Panel Shipping and Package :
TV160DKT-NH0 LCD Display Shipping Policy :
Shipping Method:
If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.
Specified Logistics:
If you require a specific logistics company, please inform us in advance.
TV160DKT-NH0 LCD Display Return Policy :
Product Status:
The product's condition (new or old) will be indicated in the product title.
Return and Exchange Conditions:
If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.
Return Procedure:
When returning the product, please provide a detailed explanation of the issues encountered.
Include actual photos showing the problems with the product.
TV160DKT-NH0 LCD Panel FAQ :
Q: How can I trace my order of TV160DKT-NH0 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of TV160DKT-NH0 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of TV160DKT-NH0 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods TV160DKT-NH0 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
