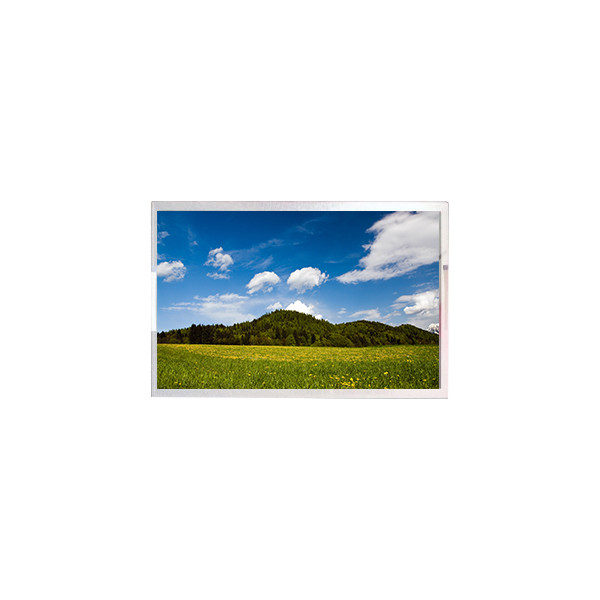

Name: Original TV101WXM-NA0 10.1 inch LCD Display screen
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: TV101WXM-NA0
Availability: InStock

Brand Name:	BOE
Model Number:	TV101WXM-NA0
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TV101WXM-NA0

Diagonal Size:

10.1"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

800(RGB)×1280, WXGA 150PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

135.36(W)×216.576(H) Mm

Used For:

Pad & Tablet

Light Source:

WLED , 15K Hours , W/O Driver

Operating Mode:

HADS, Normally Black, Transmissive

Support Color:

16.7M 56% NTSC

Supply Ability:

100000 Unit/Units per Month

Product Description

Original TV101WXM-NA0 10.1 inch LCD Display screen

TV101WXM-NA0 LCD Panel Product details :

Brand	BOE
Model P/N	TV101WXM-NA0
Diagonal Size	10.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×1280, WXGA 150PPI
Pixel Format	RGB Vertical Stripe
Active Area	135.36(W)×216.576(H) mm
Bezel Opening	-
Outline Dim.	143(W)×228.6(H) mm
Treatment	-
Luminance	450 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	30 (Typ.)(Tr+Td)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Operating Mode	HADS, Normally Black, Transmissive
Support Color	16.7M 56% NTSC
Light Source	WLED , 15K hours , W/O Driver
Weight	TBD
Designed For	Pad & Tablet
Frame Rate	60Hz
Touch Panel	Without
Interface Type	MIPI (4 data lanes) , 40 pins Connector
Power Supply	1.8/3.3V (Typ.)(VDDI/VDD)
Environment	Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C

TV101WXM-NA0 LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

TV101WXM-NA0 LCD Panel Shipping and Package :

Original TV101WXM-NA0 10.1 inch LCD Display screen 0

TV101WXM-NA0 LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

TV101WXM-NA0 LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

TV101WXM-NA0 LCD Panel FAQ :

Q: If I place order now,when will you ship the goods of TV101WXM-NA0 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Can I pay my order of TV101WXM-NA0 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can You declare my order of TV101WXM-NA0 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How long will I receive my goods TV101WXM-NA0 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
