M200HJJ-P01 19.5 inch 1920*1080 TFT LCD Screen Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | M200HJJ-P01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | M200HJJ-P01 | Diagonal Size: | 19.5" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, FOB | Resolution: | 1920(RGB)×1080, FHD 112PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 434.88(W)×238.68(H) Mm |
| Display Mode: | MVA, Normally Black, Transmissive | Support Color: | 16.7M 74%NTSC |
| View Direction: | Symmetry | Used For: | Desktop Monitor |
Product Description

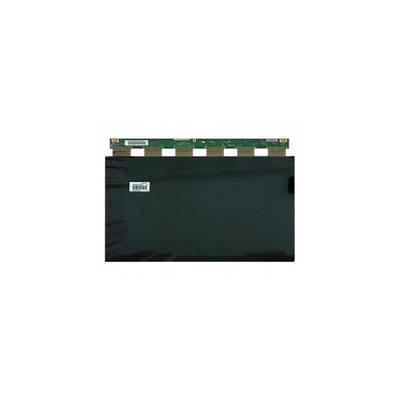

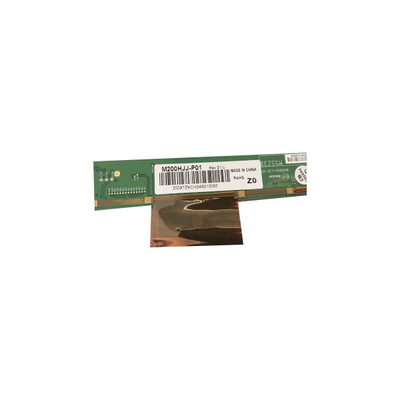

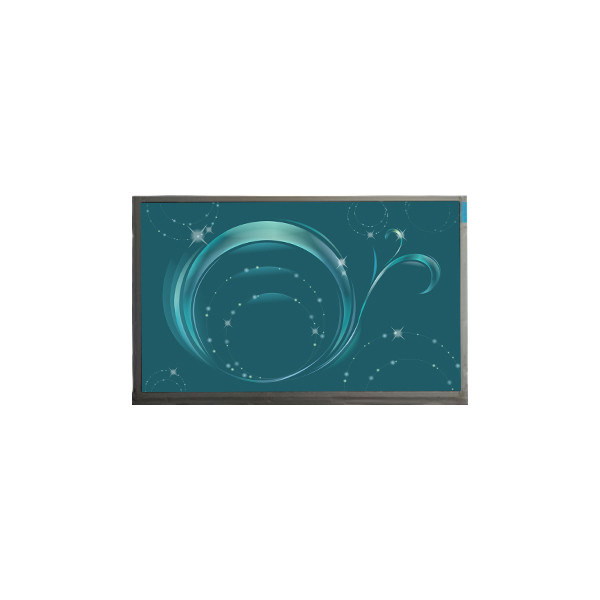

M200HJJ-P01 19.5 inch 1920*1080 TFT LCD Screen Panel
M200HJJ-P01 LCD Panel Product details :
| Brand | Innolux |
| Model P/N | M200HJJ-P01 |
| Diagonal Size | 19.5" |
| Panel Type | a-Si TFT-LCD, CELL, FOB |
| Resolution | 1920(RGB)×1080, FHD 112PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 434.88(W)×238.68(H) mm |
| Bezel Opening | - |
| Outline Size | 442.88(W)×246.7(H)×1.29(D) mm |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 0 cd/m² |
| Contrast Ratio | 3000:1 (Typ.) (TM) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Display Mode | MVA, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 15/5 (Typ.)(Tr/Td) |
| Glass Depth | 0.50+0.50 mm |
| Transmissivity | 4.2% (Typ.)(with Polarizer) |
| Display Colors | 16.7M 74%NTSC |
| Lamp Type | No B/L, Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Driver IC | COFBuilt-in 6 source chips |
| Panel Weight | 335±20g |
| Application | Desktop Monitor |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pins Connector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
M200HJJ-P01 LCD Panel Shipping and Package :
Shipping Guarantee for M200HJJ-P01 LCD Screen :
Traceable Shipping:
All shipments of the M200HJJ-P01 LCD screen come with traceable package information. You can monitor the status and location of your package throughout the delivery process to ensure transparency and peace of mind.
Refund Policy:
In the unlikely event that you do not receive your package within 90 days of shipment, you are entitled to a full refund. Should this situation arise, please contact us promptly, and we will process your refund in full.
Warranty Details for M200HJJ-P01 LCD Screen:
Warranty Period:
All M200HJJ-P01 LCD panels are covered by a 60-day warranty from the date of receipt. This warranty ensures that the product you receive is free from defects and fully operational.
Reporting Issues:
In the event that the LCD panel is non-functional upon arrival, it is imperative that you notify us within 7 days of receipt. This prompt notification allows us to address the issue efficiently. Any claims reported beyond this 7-day window may not be eligible for warranty service, as we reserve the right to refuse such requests.
Problem Resolution:
Upon receiving your notification, our team will work closely with you to troubleshoot and resolve the issue. If the problem persists despite our best efforts, a Return Merchandise Authorization (RMA) can be issued. This process involves returning the faulty unit for repair or replacement.
M200HJJ-P01 LCD Panel FAQ :
Q: Can you test the lcd panel M200HJJ-P01 before shipping ?
A: Yes , of course , don't worry , our item was tested ok before shipping .
Q: Do you accept the sample order M200HJJ-P01 ?
A: Yes , sample order is welcome.
Q: Can you declared low value of my order M200HJJ-P01 ?
A: Yes , we can , you can tell us before shipping .
Q: How long the warranty of lcd M200HJJ-P01 ?
A: 90 days .
