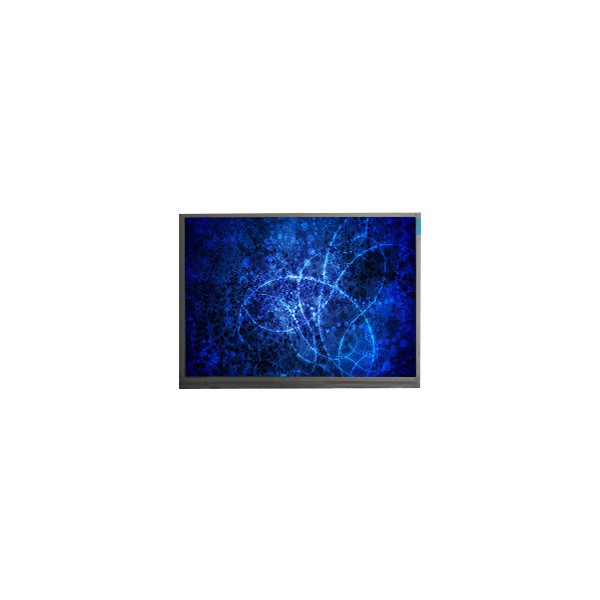

F060A09-6T2 6.0 inch 720*1280 LCD Screen Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | F060A09-6T2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | F060A09-6T2 | Diagonal Size: | 6.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, Q-CUT (Full Cell) | Resolution: | 720(RGB)×1280, WXGA 245PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 74.52(W)×132.48(H) Mm |
| Display Mode: | IPS, Normally Black, Transmissive | Support Color: | 16.7M 70%NTSC |
| View Direction: | Symmetry | Used For: | Mobile Phone |
Product Description
F060A09-6T2 6.0 inch 720*1280 LCD Screen Panel
F060A09-6T2 LCD Panel Product details :
| Brand | Innolux |
| Model P/N | F060A09-6T2 |
| Diagonal Size | 6.0" |
| Panel Type | a-Si TFT-LCD, CELL, Q-CUT (Full Cell) |
| Resolution | 720(RGB)×1280, WXGA 245PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 74.52(W)×132.48(H) mm |
| Bezel Opening | - |
| Outline Size | 77.32(W)×140.13(H)×0.8(D) mm |
| Brightness | 0 cd/m² |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Glass Depth | 0.40+0.40 mm |
| Display Colors | 16.7M 70%NTSC |
| Frequency | - |
| Weight | - |
| Surface | Without Polarizer |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Display Mode | IPS, Normally Black, Transmissive |
| Response Time | 14/11 (Typ.)(Tr/Td) |
| Transmissivity | 4.0% (Typ.)(with Polarizer) |
| Lamp Type | No B/L |
| Touch Screen | On-Cell Touch |
| Application | Mobile Phone |
| Driver IC | COGSuggest HX8394-A01, NT35521, OTM1283A + OTM1288A |
| Environment | Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C |
F060A09-6T2 LCD Panel Shipping and Package :
Shipping Guarantee for F060A09-6T2 LCD Screen :
Traceable Shipping:
All shipments of the F060A09-6T2 LCD screen come with traceable package information. You can monitor the status and location of your package throughout the delivery process to ensure transparency and peace of mind.
Refund Policy:
In the unlikely event that you do not receive your package within 90 days of shipment, you are entitled to a full refund. Should this situation arise, please contact us promptly, and we will process your refund in full.
Warranty Details for F060A09-6T2 LCD Screen:
Warranty Period:
All F060A09-6T2 LCD panels are covered by a 60-day warranty from the date of receipt. This warranty ensures that the product you receive is free from defects and fully operational.
Reporting Issues:
In the event that the LCD panel is non-functional upon arrival, it is imperative that you notify us within 7 days of receipt. This prompt notification allows us to address the issue efficiently. Any claims reported beyond this 7-day window may not be eligible for warranty service, as we reserve the right to refuse such requests.
Problem Resolution:
Upon receiving your notification, our team will work closely with you to troubleshoot and resolve the issue. If the problem persists despite our best efforts, a Return Merchandise Authorization (RMA) can be issued. This process involves returning the faulty unit for repair or replacement.
F060A09-6T2 LCD Panel FAQ :
Q: How can I trace my order of F060A09-6T2 ?
A: we will give you tracking number then you can trace your order from website.
Q: How to make payment of F060A09-6T2 ?
A: We accept T/T , Paypal , western union .
Q: Do you accept sample orders of F060A09-6T2 ?
A: Of course!sample order is welcome !
Q: Can you give me a discount if I need a large quantity of F060A09-6T2 ?
A: Of course!If you make a large order, we will give you a discount.
