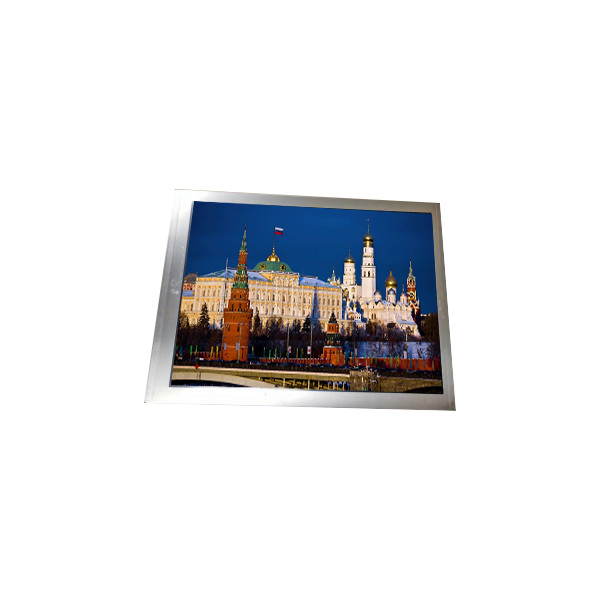

New M215HCA-PCB 21.5 inch LCD Display Screen Module
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | M215HCA-PCB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | M215HCA-PCB | Diagonal Size: | 21.5" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL , FOB | Resolution: | 1920(RGB)×1080, FHD 102PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 476.064(W)×267.786(H) Mm |
| Outline Dim.: | 484.26(W)×279.486(H) ×1.3(D) Mm | Treatment: | Antiglare (Haze 25%), Hard Coating (3H) |
| Luminance: | 0 Cd/m² | Designed For: | Desktop Monitor |
Product Description
New M215HCA-PCB 21.5 inch LCD Display Screen Module
M215HCA-PCB LCD Panel Product details :
| Brand | Innolux |
| Model P/N | M215HCA-PCB |
| Diagonal Size | 21.5" |
| Panel Type | a-Si TFT-LCD, CELL , FOB |
| Resolution | 1920(RGB)×1080, FHD 102PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 476.064(W)×267.786(H) mm |
| Bezel Opening | - |
| Outline Dim. | 484.26(W)×279.486(H) ×1.3(D) mm |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 14 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | AAS, Normally Black, Transmissive |
| Glass Depth | 0.50+0.50 mm |
| Transmissivity | 5.79% (Typ.)(with Polarizer) |
| Support Color | 16.7M 100% sRGB |
| Light Source | No B/L |
| Weight | 360/400/420g (Min./Typ./Max.) |
| Designed For | Desktop Monitor |
| Frame Rate | 75Hz |
| Touch Panel | Without |
| Driver IC | COF Built-in 6 source chips |
| Interface Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Power Supply | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
M215HCA-PCB LCD Display Features :
High Quality:
Highest quality touch LCD screen replacement parts.
Repair Utility:
Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.
Thorough Testing:
Each assembly is tested before shipping to ensure 100% functionality.
Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.
M215HCA-PCB LCD Panel Shipping and Package :
M215HCA-PCB LCD Display Shipping Policy :
Shipping Method:
If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.
Specified Logistics:
If you require a specific logistics company, please inform us in advance.
M215HCA-PCB LCD Display Return Policy :
Product Status:
The product's condition (new or old) will be indicated in the product title.
Return and Exchange Conditions:
If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.
Return Procedure:
When returning the product, please provide a detailed explanation of the issues encountered.
Include actual photos showing the problems with the product.
M215HCA-PCB LCD Panel FAQ :
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Do you accept sample orders of M215HCA-PCB ?
A: Of course!sample order is welcome !
Q: How to make payment of M215HCA-PCB ?
A: We accept T/T , Paypal , western union .
Q: Can I pay my order of M215HCA-PCB via credit card ?
A: Yes!you can use your credit card through your Paypal account.
