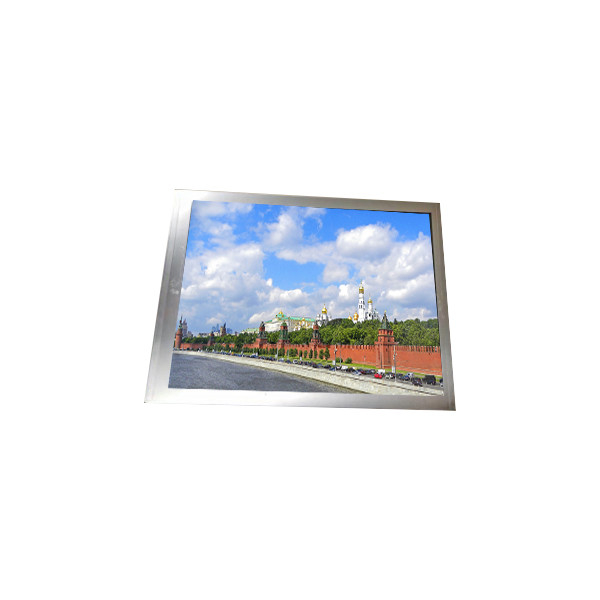

Original F101A43-6T6 10.1 inch 1200*1920 LCD Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | F101A43-6T6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | F101A43-6T6 | Diagonal Size: | 10.1" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL , Q-CUT (Full Cell) | Resolution: | 1200(RGB)×1920, WUXGA 225PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 135.36(W)×216.576(H) Mm |
| Application: | Pad & Tablet | Light Source: | No B/L |
| Support Color: | 16.7M 65% NTSC | Touch Panel: | In-Cell Touch, I²C/SPI |
Product Description
Original F101A43-6T6 10.1 inch 1200*1920 LCD Display Panel
F101A43-6T6 LCD Panel Product details :
| Brand | Innolux |
| Model P/N | F101A43-6T6 |
| Diagonal Size | 10.1" |
| Panel Type | a-Si TFT-LCD, CELL , Q-CUT (Full Cell) |
| Resolution | 1200(RGB)×1920, WUXGA 225PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 135.36(W)×216.576(H) mm |
| Bezel Opening | - |
| Outline Dim. | 138.96(W)×223.926(H)×0.8(D) mm |
| Treatment | Without Polarizer |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1500:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Operating Mode | AAS, Normally Black, Transmissive |
| Plate Thickness | 0.40+0.40 mm |
| Transmittance | 4.35% (Typ.) |
| Support Color | 16.7M 65% NTSC |
| Light Source | No B/L |
| Weight | - |
| Designed For | Pad & Tablet |
| Frame Rate | - |
| Touch Panel | In-Cell Touch, I²C/SPI |
| D-IC Detail | COG Suggest NT36523, FT8201AB, FT8201, FT8205, EK79209A, HX83102E |
| Environment | Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C |
F101A43-6T6 LCD Display Features :
High Quality:
Highest quality touch LCD screen replacement parts.
Repair Utility:
Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.
Thorough Testing:
Each assembly is tested before shipping to ensure 100% functionality.
Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.
F101A43-6T6 LCD Panel Shipping and Package :
F101A43-6T6 LCD Display Shipping Policy :
Shipping Method:
If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.
Specified Logistics:
If you require a specific logistics company, please inform us in advance.
F101A43-6T6 LCD Display Return Policy :
Product Status:
The product's condition (new or old) will be indicated in the product title.
Return and Exchange Conditions:
If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.
Return Procedure:
When returning the product, please provide a detailed explanation of the issues encountered.
Include actual photos showing the problems with the product.
F101A43-6T6 LCD Panel FAQ :
Q: How can I trace my order of F101A43-6T6 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of F101A43-6T6 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of F101A43-6T6 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods F101A43-6T6 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
