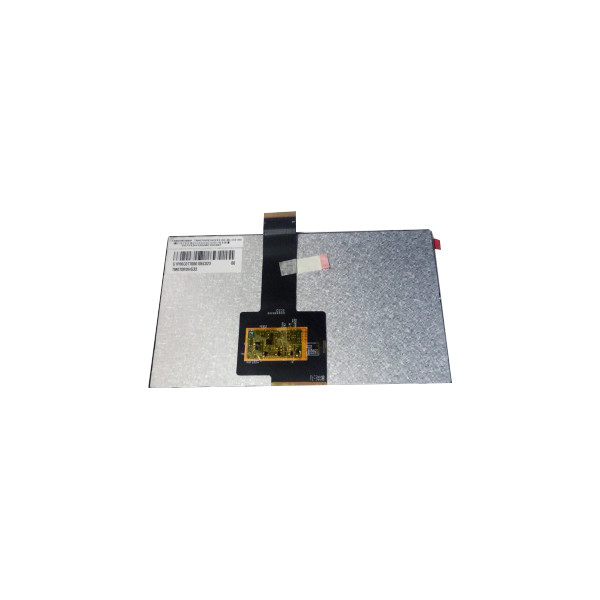

TM070RDHG33 7.0 inch 800*480 LCD Screen Panel with TTL

Brand Name:	TIANMA
Model Number:	TM070RDHG33
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TM070RDHG33

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

800(RGB)×480, WVGA 134PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

154.08(W)×85.92(H) Mm

Display Mode:

TN, Normally White, Transmissive

Support Color:

16.7M 50%NTSC

View Direction:

12 O'clock

Used For:

Digital Photo Frame、Portable DVD Player

Supply Ability:

100000 Unit/Units per Month

Product Description

TM070RDHG33 7.0 inch 800*480 LCD Screen Panel with TTL

TM070RDHG33 LCD Panel Product details :

Brand	TIANMA
Model P/N	TM070RDHG33
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×480, WVGA 134PPI
Pixel Format	RGB Vertical Stripe
Active Area	154.08(W)×85.92(H) mm
Bezel Opening	157.08(W)×89.39(H) mm
Outline Dim.	164.9(H)×100(V)×6(D) mm
Treatment	Antiglare
Luminance	300 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.) (TM)
View Direction	12 o'clock
Response Time	20 (Typ.)(Tr+Td)
Viewing Angle	70/70/60/70 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	16.7M 50%NTSC
Light Source	WLED [3S6P], 20K hours, W/O Driver
Weight	160g (Typ.)
Designed For	Digital Photo Frame,Portable DVD Player
Frame Rate	60Hz
Touch Panel	Without
Interface Type	TTL (1 ch, 8-bit), 50 pinsFPC
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

TM070RDHG33 LCD Screen about Our company:

Shenzhen Yongsheng Innovation Technology Co.,Ltd.was founded in 2012, integrity and win-win is our tenet for many years, our headquarters is located in Shenzhen, China,we are LCD panel professional distributors, have their own warehouse and inventory, our goal is to provide customers with the best service in high-quality products.

✅ 9+Years Experience
✅ Professional Team
✅ High Quality Products
✅ Competitive Prices
✅ Efficient Communication

TM070RDHG33 LCD Panel Shipping and Package :

Shipping for TM070RDHG33 LCD Screen :

-After placing the order, the tracking number will be uploaded to your purchase history within 3-5 business days.

-On Chinese holidays and weekends, it takes one to two days.

-After payment, your delivery address cannot be changed.

-For safe and fast delivery, we need your specific address and phone number.

-The shipping address should be the same as Paypal's shipping address.

Warranty Details for TM070RDHG33 LCD Screen:

Warranty Period:
All TM070RDHG33 LCD panels are covered by a 60-day warranty from the date of receipt. This warranty ensures that the product you receive is free from defects and fully operational.

Reporting Issues:
In the event that the LCD panel is non-functional upon arrival, it is imperative that you notify us within 7 days of receipt. This prompt notification allows us to address the issue efficiently. Any claims reported beyond this 7-day window may not be eligible for warranty service, as we reserve the right to refuse such requests.

Problem Resolution:
Upon receiving your notification, our team will work closely with you to troubleshoot and resolve the issue. If the problem persists despite our best efforts, a Return Merchandise Authorization (RMA) can be issued. This process involves returning the faulty unit for repair or replacement.

TM070RDHG33 LCD Panel FAQ :

Q: Can you test the lcd panel TM070RDHG33 before shipping ?

A: Yes , of course , don't worry , our item was tested ok before shipping .

Q: Do you accept the sample order TM070RDHG33 ?

A: Yes , sample order is welcome.

Q: Can you declared low value of my order TM070RDHG33 ?

A: Yes , we can , you can tell us before shipping .

Q: How long the warranty of lcd TM070RDHG33 ?

A: 90 days .
