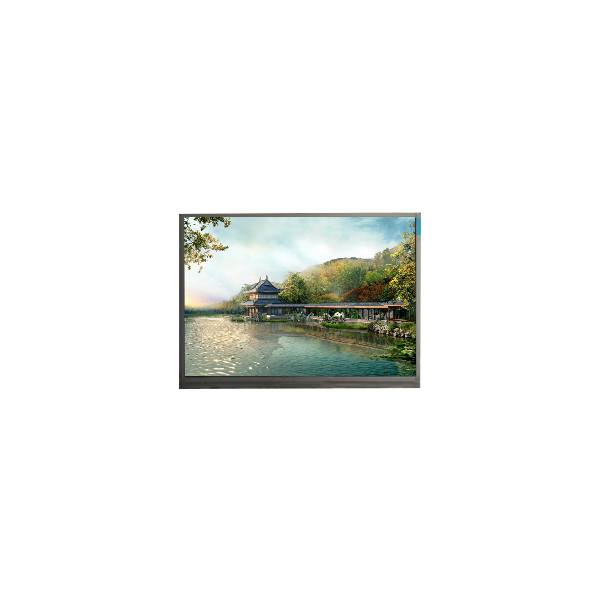

NJ080NA-03K 8.0 inch 800*480 LCD Screen Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | NJ080NA-03K |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NJ080NA-03K | Diagonal Size: | 8.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 800(RGB)×480, WVGA 116PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 176.64(W)×99.36(H) Mm |
| Display Mode: | TN, Normally White, Transmissive | Support Color: | 262K 50% NTSC |
| View Direction: | 6 O'clock | Used For: | Automotive Display ，Digital Photo Frame， Portable DVD Player |
Product Description
NJ080NA-03K 8.0 inch 800*480 LCD Screen Panel
NJ080NA-03K LCD Panel Product details :
| Brand | Innolux |
| Model P/N | NJ080NA-03K |
| Diagonal Size | 8.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 116PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 176.64(W)×99.36(H) mm |
| Bezel Opening | 180.1(W)×103.4(H) mm |
| Outline Dim. | 192.8(W)×116.9(H) ×6.6(D) mm |
| Treatment | Antiglare |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K 50% NTSC |
| Light Source | WLED , 20K hours , Without Driver |
| Weight | 245g (Typ.) |
| Designed For | Automotive Display ,Digital Photo Frame, Portable DVD Player |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | Parallel RGB (1 ch, 6/8-bit) , 60 pins FPC |
| Power Supply | 3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
NJ080NA-03K LCD Panel Shipping and Package :
Shipping Guarantee for NJ080NA-03K LCD Screen :
Looking for an affordable and reliable shipping option for your bulk orders or larger items? Look no further than sea shipment!
With an estimated delivery time of about 20-30 days, sea shipment is an excellent choice for businesses looking to save money on shipping costs while still ensuring their goods arrive safely and on time. Whether you're shipping heavy machinery, oversized furniture, or large quantities of merchandise, sea shipment is the perfect solution for you.
Not only is sea shipment an economical choice, but it also offers a range of benefits that make it a top choice for businesses worldwide. These benefits include lower carbon emissions, fewer transport-related accidents, and increased security for your goods.
So if you want an affordable and reliable shipping option for your bulk orders or larger items, choose sea shipment. With its competitive pricing, speedy delivery times, and superior safety and security features, you can't go wrong with this popular shipping method!
Warranty Details for NJ080NA-03K LCD Screen:
Warranty Period:
All NJ080NA-03K LCD panels are covered by a 60-day warranty from the date of receipt. This warranty ensures that the product you receive is free from defects and fully operational.
Reporting Issues:
In the event that the LCD panel is non-functional upon arrival, it is imperative that you notify us within 7 days of receipt. This prompt notification allows us to address the issue efficiently. Any claims reported beyond this 7-day window may not be eligible for warranty service, as we reserve the right to refuse such requests.
Problem Resolution:
Upon receiving your notification, our team will work closely with you to troubleshoot and resolve the issue. If the problem persists despite our best efforts, a Return Merchandise Authorization (RMA) can be issued. This process involves returning the faulty unit for repair or replacement.
NJ080NA-03K LCD Panel FAQ :
Q: Do you accept sample orders of NJ080NA-03K ?
A: Of course! Sample order is welcome.
Q: Can I pay my order of NJ080NA-03K vai credit card ?
A: Yes! You can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90 days warranty.
Q: If I place order now, when will you ship the goods of NJ080NA-03K ?
A: The order will be shipped within 2-3 working days after received your payment.
