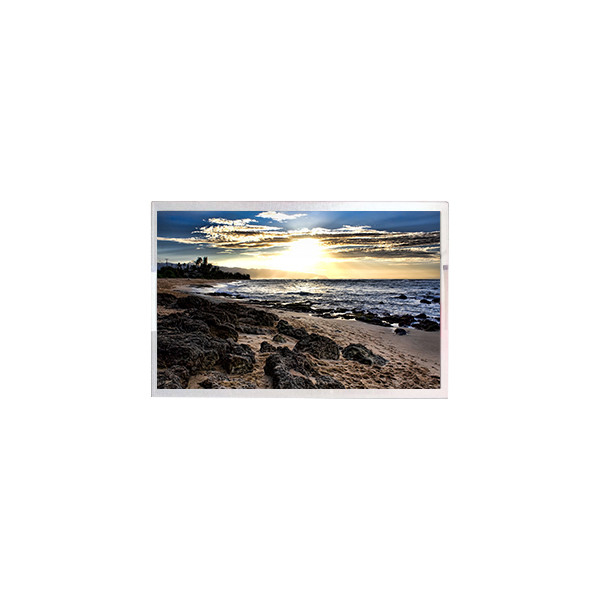

16.0 inch 1920*1200 NV160WUM-N47 tft LCD Screen Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | NV160WUM-N47 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NV160WUM-N47 | Diagonal Size: | 16.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | RGB Vertical Stripe |
| Active Area: | 344.68(W)×215.42(H) Mm | Outline Dim.: | 349.68(W)×225.52(H)×4.6(D) Mm |
| Application: | Digital Still CameraLaptop | Form Style: | Slim (PCBA Bent, T≤3.0mm) |
| Frame Rate: | 60Hz | Interface Type: | EDP (2 Lanes) , EDP1.4b , HBR1 (2.7G/lane) , 30 Pins Connector |
Product Description
16.0 inch 1920*1200 NV160WUM-N47 tft LCD Screen Display Panel
NV160WUM-N47 LCD Panel Product details :
| Brand | BOE |
| Model P/N | NV160WUM-N47 |
| Diagonal Size | 16.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1200, WUXGA 141PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 344.68(W)×215.42(H) mm |
| Bezel Opening | - |
| Outline Dim. | 349.68(W)×225.52(H)×4.6(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 1500:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | ADS, Normally Black, Transmissive |
| Support Color | 16.7M 99% DCI-P3 |
| Light Source | WLED [11S8P] , 15K hours , With LED Driver |
| Form Style | Slim (PCBA Bent, T≤3.0mm) |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | eDP (2 Lanes) , eDP1.4b , HBR1 (2.7G/lane) , 30 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
NV160WUM-N47 LCD Panel Shipping and Package :
NV160WUM-N47 LCD Panel FAQ :
Q: I do not find the LCD I am looking for in the website, what should I do ?
A: You can give us some pictures,we have a lot of LCD out of shelves.
Q: How long will I receive my goods of NV160WUM-N47 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment for NV160WUM-N47 ?
A: We accept T/T , Paypal , western union .
Q: What happen if the NV160WUM-N47 I receive can't work ?
A: NV160WUM-N47 will be tested strictly before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
