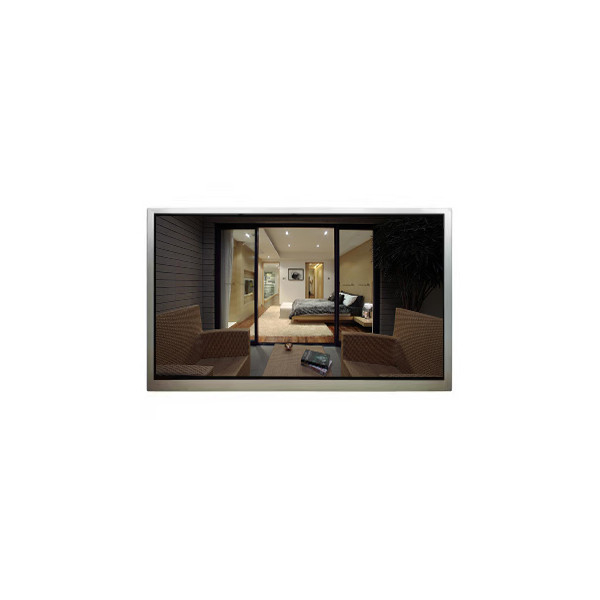

CM546B3-001 5.5 inch LCD Screen Panel for Mobile Phone
Product Details:
| Place of Origin: | China |
| Brand Name: | CSOT |
| Model Number: | CM546B3-001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | CM546B3-001 | Diagonal Size: | 5.5" |
|---|---|---|---|
| Panel Type: | LTPS TFT-LCD, CELL, COG | Resolution: | 1080(RGB)×1920, FHD 403PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 68.04(W)×120.96(H) Mm |
| Display Mode: | FFS, Normally Black, Transmissive | Support Color: | 16.7M 79%NTSC |
| View Direction: | Symmetry | Used For: | Mobile Phone |
Product Description
CM546B3-001 5.5 inch LCD Screen Panel for Mobile Phone
CM546B3-001 LCD Panel Product details :
| Brand | CSOT |
| Model P/N | CM546B3-001 |
| Diagonal Size | 5.5" |
| Panel Type | LTPS TFT-LCD, CELL, COG |
| Resolution | 1080(RGB)×1920, FHD 403PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 68.04(W)×120.96(H) mm |
| Bezel Opening | - |
| Outline Size | 69.44(W)×126.81(H)×0.5(D) mm |
| Treatment | With Polarizer |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1500 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 35 (Max.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | FFS, Normally Black, Transmissive |
| Glass Thickness | 0.15+0.15 mm |
| Transmissivity | 4.69% (Typ.)(with APCF) |
| Color Depth | 16.7M 79%NTSC |
| Backlight | No B/L |
| Mass | TBD |
| Used for | Mobile Phone |
| Refresh Rate | 60Hz |
| Touchscreen | In-Cell Touch |
| Driver IC list | Built-in COG TD4310, TD4322 |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
CM546B3-001 LCD Panel Shipping and Package :
Shipping Guarantee for CM546B3-001 LCD Screen :
Traceable Shipping:
All shipments of the CM546B3-001 LCD screen come with traceable package information. You can monitor the status and location of your package throughout the delivery process to ensure transparency and peace of mind.
Refund Policy:
In the unlikely event that you do not receive your package within 90 days of shipment, you are entitled to a full refund. Should this situation arise, please contact us promptly, and we will process your refund in full.
Warranty/Return for CM546B3-001 LCD Screen:
If you have any concerns, we offer a 30 day peace of mind guarantee (refund or exchange).
Defective or damaged items during transportation must be reported within 48 hours of receipt. Contact us through the information system Simply return the purchased item within 30 days of receiving its original (resale) status and packaging for a refund (less postage and packaging) or exchange.
Any defective or incorrect items must be returned within 30 days of receipt. In any case, customers are responsible for paying the return shipping fee. It is recommended that customers obtain proof of postage when they have not received items in rare circumstances.
We offer a three-month warranty for most products, covering only manufacturing defects. This warranty does not cover any damage/improper operation caused by the user.
If the product we provide malfunctions due to manufacturing defects, please contact us through the information system to obtain RMA (Return Authorization) and return instructions. If you return the item, you must return it together with the RMA number and invoice copy, and the reason for the return must be stated.
We can only refund or replace the product when we actually receive the return. All returns will be processed within 5 working days of receipt in our office.
CM546B3-001 LCD Panel FAQ :
Q: Can you give me a discount if I need a large quantity of CM546B3-001 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of CM546B3-001 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can I pay my order of CM546B3-001 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90 days warranty .
