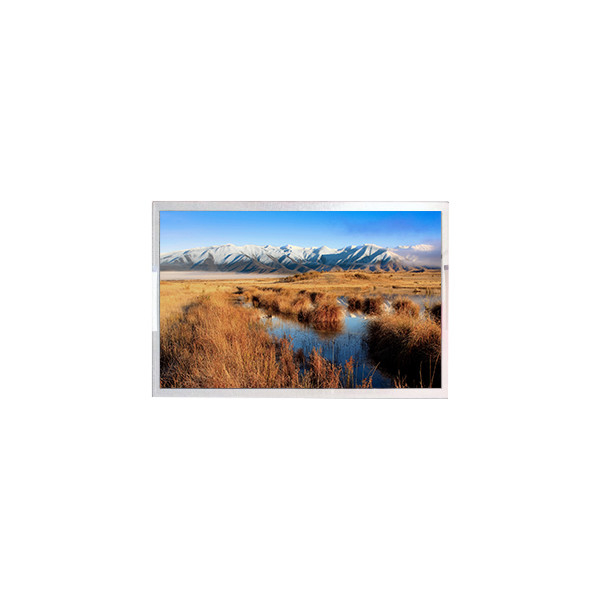

Name: Original TL145MDXP01-00 14.5 inch LCD Module Screen
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: TL145MDXP01-00
Availability: InStock

Brand Name:	TIANMA
Model Number:	TL145MDXP01-00
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TL145MDXP01-00

Diagonal Size:

14.5"

Panel Type:

LTPS TFT-LCD, LCM

Resolution:

3072(RGB)×1920 249PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

312.146(W)×195.091(H) Mm

Outline Size:

316.446(W)×211.741(H) ×2.95(D) Mm

Brightness:

430 Cd/m² (Typ.)

Contrast Ratio:

1500:1 (Typ.) (TM)

Application:

Laptop

Supply Ability:

100000 Unit/Units per Month

Product Description

Original TL145MDXP01-00 14.5 inch LCD Module Screen

TL145MDXP01-00 LCD Panel Product details :

Brand	TIANMA
Model P/N	TL145MDXP01-00
Diagonal Size	14.5"
Panel Type	LTPS TFT-LCD, LCM
Resolution	3072(RGB)×1920 249PPI
Pixel Format	RGB Vertical Stripe
Active Area	312.146(W)×195.091(H) mm
Bezel Opening	-
Outline Size	316.446(W)×211.741(H) ×2.95(D) mm
Surface	Antiglare, Hard coating (3H)
Brightness	430 cd/m² (Typ.)
Contrast Ratio	1500:1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Display Mode	IPS, Normally Black, Transmissive
Best View on	Symmetry
Response Time	20 (Typ.)(Tr+Td)
Display Colors	16.7M 99% DCI-P3
Lamp Type	WLED , With LED Driver
Frequency	120Hz
Touch Screen	Without
Shape Style	Slim (PCBA Flat, T≤3.2mm)
Application	Laptop
Signal Interface	eDP (4 Lanes) , eDP1.4 , 40 pins Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

TL145MDXP01-00 LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

TL145MDXP01-00 LCD Panel Shipping and Package :

Original TL145MDXP01-00 14.5 inch LCD Module Screen 0

TL145MDXP01-00 LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

TL145MDXP01-00 LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

TL145MDXP01-00 LCD Panel FAQ :

Q: If I place order now,when will you ship the goods of TL145MDXP01-00 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Do you accept sample orders of TL145MDXP01-00 ?

A: Of course!sample order is welcome !

Q: Can you give me a discount if I need a large quantity of TL145MDXP01-00 ?

A: Of course!If you make a large order, we will give you a discount.

Q: How can I trace my order of TL145MDXP01-00 ?

A: we will give you tracking number then you can trace your order from website.
