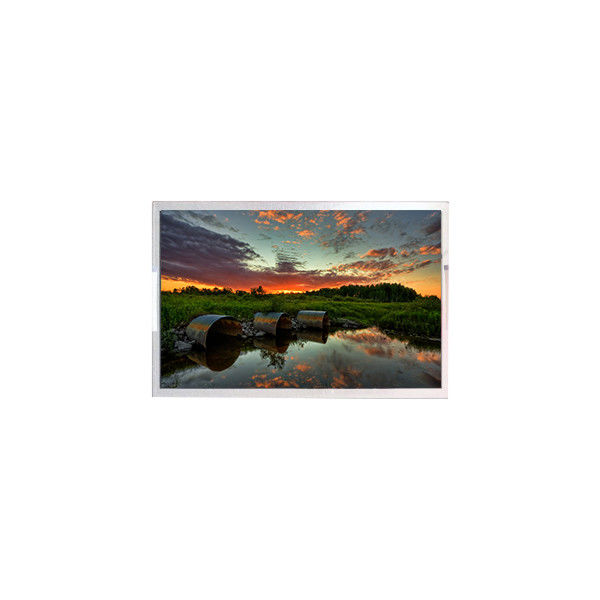

12.3 inch K123AWF3 R2 LCD Screen LCD Module
Product Details:
| Place of Origin: | China |
| Brand Name: | IVO |
| Model Number: | K123AWF3 R2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | K123AWF3 R2 | Diagonal Size: | 12.3" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL , FOB | Resolution: | 1920(RGB)×720 167PPI |
| Active Area: | 292.032(W)×109.512(H) Mm | Outline Size: | 298.432(H)×120.312(V) ×1.03(D) Mm |
| Brightness: | 0 Cd/m² | Contrast Ratio: | 1200:1 (Typ.) (TM) |
| Response Time: | 25 (Typ.)(Tr+Td) | Application: | Automotive Display |
Product Description
12.3 inch K123AWF3 R2 LCD Screen LCD Module
K123AWF3 R2 LCD Panel Product details :
| Brand | IVO |
| Model P/N | K123AWF3 R2 |
| Diagonal Size | 12.3" |
| Panel Type | a-Si TFT-LCD, CELL , FOB |
| Resolution | 1920(RGB)×720 167PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 292.032(W)×109.512(H) mm |
| Bezel Opening | - |
| Outline Size | 298.432(H)×120.312(V) ×1.03(D) mm |
| Surface | Antiglare, Hard coating |
| Brightness | 0 cd/m² |
| Contrast Ratio | 1200:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | IPS, Normally Black, Transmissive |
| Plate Thickness | 0.40+0.40 mm |
| Transmittance | 2.95% (Typ.)(with Polarizer) |
| Best View on | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Display Colors | 16.7M 70% NTSC |
| Lamp Type | No B/L |
| Frequency | 60Hz |
| Touch Screen | In-Cell Touch, I²C |
| Weight | 105g (Max.) |
| Application | Automotive Display |
| D-IC Detail | COG Built-in 2 source chips |
| Signal Interface | LVDS (2 ch, 8-bit) , 50 pins Connector |
| Input Voltage | 3.3/6.5/-6.5V (Typ.)(VDD1/VSP/VSN) |
| Environment | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C |
K123AWF3 R2 LCD Display Features :
High Quality:
Highest quality touch LCD screen replacement parts.
Repair Utility:
Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.
Thorough Testing:
Each assembly is tested before shipping to ensure 100% functionality.
Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.
K123AWF3 R2 LCD Panel Shipping and Package :
K123AWF3 R2 LCD Display Shipping Policy :
Shipping Method:
If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.
Specified Logistics:
If you require a specific logistics company, please inform us in advance.
K123AWF3 R2 LCD Display Return Policy :
Product Status:
The product's condition (new or old) will be indicated in the product title.
Return and Exchange Conditions:
If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.
Return Procedure:
When returning the product, please provide a detailed explanation of the issues encountered.
Include actual photos showing the problems with the product.
K123AWF3 R2 LCD Panel FAQ :
Q: If I place order now,when will you ship the goods of K123AWF3 R2 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can you give me a discount if I need a large quantity of K123AWF3 R2 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How long will I receive my goods K123AWF3 R2 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment of K123AWF3 R2 ?
A: We accept T/T , Paypal , western union .
