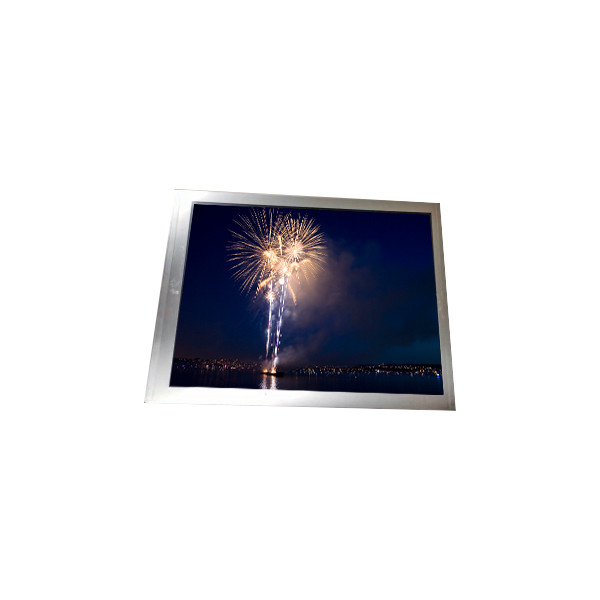

LM238WQ1-RSAL2 23.8 inch 2560*1440 LCD Screen Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | LHD |
| Model Number: | LM238WQ1-RSAL2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LM238WQ1-RSAL2 | Diagonal Size: | 23.8" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 2560(RGB)×1440, Quad-HD 123PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 525.7(W)×295.7(H) Mm |
| Work Mode: | IPS, Normally Black, Transmissive | Color Depth: | 16.7M 100% SRGB |
| Lamp Type: | WLED [18S3P] , 30K Hours , W/O Driver | Application: | Desktop Monitor |
Product Description
LM238WQ1-RSAL2 23.8 inch 2560*1440 LCD Screen Panel
LM238WQ1-RSAL2 LCD Panel Product details :
| Brand | LHD |
| Model P/N | LM238WQ1-RSAL2 |
| Diagonal Size | 23.8" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 2560(RGB)×1440, Quad-HD 123PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 525.7(W)×295.7(H) mm |
| Bezel Opening | - |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 14 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | IPS, Normally Black, Transmissive |
| Support Color | 16.7M 100% sRGB |
| Light Source | WLED [18S3P] , 30K hours , W/O Driver |
| Weight | 1.87/1.96Kgs (Typ./Max.) |
| Designed For | Desktop Monitor |
| Frame Rate | 65Hz |
| Touch Panel | Without |
| Interface Type | LVDS (4 ch, 10-bit) , 92 pins Connector |
| Power Supply | 10.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
The refund method usually depends on the channel of purchase and payment method. Here are some common refund methods:
1. Original refund: If a customer uses a credit card, debit card or a third-party payment platform (such as PayPal, Alipay, etc.) to pay for the purchase of goods, the merchant will usually choose the original refund and return the refund amount to the customer's original payment account.
2. Cash refund: For offline purchases or some special circumstances, merchants may choose to refund in cash.
3. Electronic wallet refund: Some e-commerce platforms or mobile payment platforms support refunding the refund amount to the customer's electronic wallet, making it convenient for the customer to consume again.
4. Cheque refund: In some cases, merchants may choose to refund in the form of a check, especially for large refunds or corporate customers.
5. Coupon or coupon refund: If a customer uses a voucher or coupon to pay a portion of the order amount, the merchant may choose to refund in the form of a voucher or coupon.
Regardless of the method used, merchants should promptly notify customers after a refund and ensure that the refund process is transparent and convenient.
LM238WQ1-RSAL2 LCD Panel Shipping and Package :
LM238WQ1-RSAL2 LCD Panel FAQ :
Q: Do you accept sample orders of LM238WQ1-RSAL2 ?
A: Of course! Sample order is welcome.
Q: Can I pay my order of LM238WQ1-RSAL2 vai credit card ?
A: Yes! You can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90 days warranty.
Q: If I place order now, when will you ship the goods of LM238WQ1-RSAL2 ?
A: The order will be shipped within 2-3 working days after received your payment.
