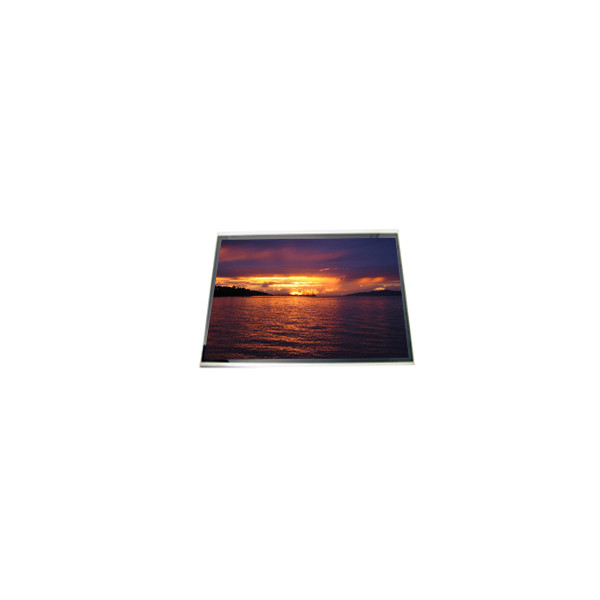

LPM052A435A 5.2 inch 1080*1920 Touch LCD Screen Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | JDI |
| Model Number: | LPM052A435A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LPM052A435A | Diagonal Size: | 5.2" |
|---|---|---|---|
| Panel Type: | LTPS TFT-LCD, LCM | Resolution: | 1080(RGB)×1920, FHD 427PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 64.152(W)×114.048(H) Mm |
| Work Mode: | IPS, Normally Black, Transmissive | Color Depth: | 16.7M 90%NTSC |
| Lamp Type: | 2 Strings WLED, Without Driver | Application: | Mobile Phone |
Product Description
LPM052A435A 5.2 inch 1080*1920 Touch LCD Screen Panel
LPM052A435A LCD Panel Product details :
| Brand | JDI |
| Model P/N | LPM052A435A |
| Diagonal Size | 5.2" |
| Panel Type | LTPS TFT-LCD, LCM |
| Resolution | 1080(RGB)×1920, FHD 427PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 64.152(W)×114.048(H) mm |
| Bezel Opening | - |
| Outline Size | 68.9(W)×141.99(H)×2.13(D) mm |
| Brightness | 400 cd/m² (Typ.) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Display Colors | 16.7M 90%NTSC |
| Frequency | 60Hz |
| Weight | 35.6g (Typ.) |
| Surface | - |
| Contrast Ratio | 1500:1 (Typ.) (TM) |
| Display Mode | IPS, Normally Black, Transmissive |
| Response Time | 32 (Max.)(Tr+Td) |
| Lamp Type | 2 strings WLED, Without Driver |
| Touch Screen | PCAP, I²C |
| Application | Mobile Phone |
| Signal Interface | MIPI (4 data lanes), 45 pinsConnector |
| Input Voltage | 1.8/3.3/5.5/-5.5V (Typ.)(IOVCC/VDDH/AVDD/AVEE-) |
| Environment | Operating Temp.: -20 ~ 60 °C ;Storage Temp.: -30 ~ 70 °C |
LPM052A435A LCD Panel service :
1.For pre-sales service, we have a professional sales team and technical team, willing to answer your questions within 24 hours.
2.For after-sales service, we will show you how to install, use, and replace damaged modules, and we can also send the technology to your country/region.
3.All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panelGenerally speaking, our LCD display will not have any serious problem, you can rest assured to buy it.
4.Our official guarantee period is about one year (12 months) after delivery.
5.We respect every customer as our friend and we sincerely do business and make friends with them,no matter where theycome from.
LPM052A435A LCD Panel Shipping and Package :
LPM052A435A LCD Panel - Delivery Information:
We strive to process and ship your order for the LPM052A435A LCD panel as quickly as possible after purchase. The item will be shipped using one of the following courier services: E-packing, FedEx, EMS, TNT, DHL, or UPS.
We typically dispatch orders within 1-3 business days after receiving payment. Depending on your location and the chosen shipping method, you can expect to receive your goods within 7-19 business days from the date of shipment.
Please note that delivery times may vary based on factors such as the destination, customs processing, and the efficiency of the courier service. We will provide you with a tracking number once your order has been shipped so you can monitor its progress.
LPM052A435A LCD Panel - Returns Policy:
• Damaged or Wrong Item: If you receive a damaged or incorrect item, please contact us immediately through our messaging system. We will promptly arrange for the return and replacement.
• Return Period: Returns are accepted within 30 days of receiving the item.
• Packaging: When returning the item, please ensure it is packed securely in the original packaging, as the screens are very fragile. Do not use other types of packaging to avoid damage during transit.
• Return Shipping Costs: The buyer is responsible for the return shipping costs in cases where the wrong product, incorrect size, or a change of mind is the reason for the return.
LPM052A435A LCD Panel FAQ :
Q: Can you give me a discount if I need a large quantity of LPM052A435A ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of LPM052A435A ?
A: we will give you tracking number then you can trace your order from website.
Q: How to make payment of LPM052A435A ?
A: We accept T/T , Paypal , western union .
Q: Do you accept sample orders of LPM052A435A ?
A: Of course!sample order is welcome !
