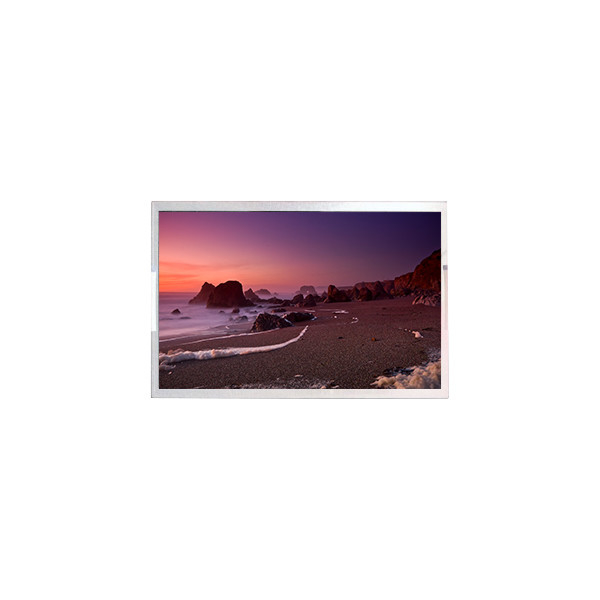

27.0 inch M270HAN03.R CELL tft LCD Panel for Desktop Monitor
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | M270HAN03.R CELL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | M270HAN03.R CELL | Diagonal Size: | 27.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL , FOB | Resolution: | 1920(RGB)×1080, FHD 81PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 597.6(W)×336.15(H) Mm |
| Application: | Desktop Monitor /Gaming | Frame Rate: | 180Hz |
| Interface Type: | LVDS (4 Ch, 8-bit) , 70 Pins Connector | Power Supply: | 12.0V (Typ.) |
Product Description
27.0 inch M270HAN03.R CELL tft LCD Panel for Desktop Monitor
M270HAN03.R CELL LCD Panel Product details :
| Brand | AUO |
| Model P/N | M270HAN03.R CELL |
| Diagonal Size | 27.0" |
| Panel Type | a-Si TFT-LCD, CELL , FOB |
| Resolution | 1920(RGB)×1080, FHD 81PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 597.6(W)×336.15(H) mm |
| Bezel Opening | - |
| Outline Dim. | 608.9(W)×346.8(H) ×1.34(D) mm |
| Treatment | Antiglare (Haze 25%), Hard coating (3H), Reflection |
| Luminance | 0 cd/m² |
| Contrast Ratio | 900 : 1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 5 (Typ.)(G to G) ms |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | AHVA, Normally Black, Transmissive |
| Glass Thickness | 0.50+0.50 mm |
| Transmissivity | 3.8% (Typ.)(with Polarizer) |
| Support Color | 16.7M 76% NTSC |
| Light Source | No B/L , No Driver |
| Weight | 640g (Typ.) |
| Designed For | Desktop Monitor /Gaming |
| Frame Rate | 180Hz |
| Touch Panel | Without |
| Driver IC list | Built-in COF 6 source chips |
| Interface Type | LVDS (4 ch, 8-bit) , 70 pins Connector |
| Power Supply | 12.0V (Typ.) |
| Environment | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
M270HAN03.R CELL LCD Display Features :
High Quality:
Highest quality touch LCD screen replacement parts.
Repair Utility:
Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.
Thorough Testing:
Each assembly is tested before shipping to ensure 100% functionality.
Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.
M270HAN03.R CELL LCD Panel Shipping and Package :
M270HAN03.R CELL LCD Display Shipping Policy :
Shipping Method:
If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.
Specified Logistics:
If you require a specific logistics company, please inform us in advance.
M270HAN03.R CELL LCD Display Return Policy :
Product Status:
The product's condition (new or old) will be indicated in the product title.
Return and Exchange Conditions:
If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.
Return Procedure:
When returning the product, please provide a detailed explanation of the issues encountered.
Include actual photos showing the problems with the product.
M270HAN03.R CELL LCD Panel FAQ :
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Do you accept sample orders of M270HAN03.R CELL ?
A: Of course!sample order is welcome !
Q: How to make payment of M270HAN03.R CELL ?
A: We accept T/T , Paypal , western union .
Q: Can I pay my order of M270HAN03.R CELL via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Want to Know more details about this product
