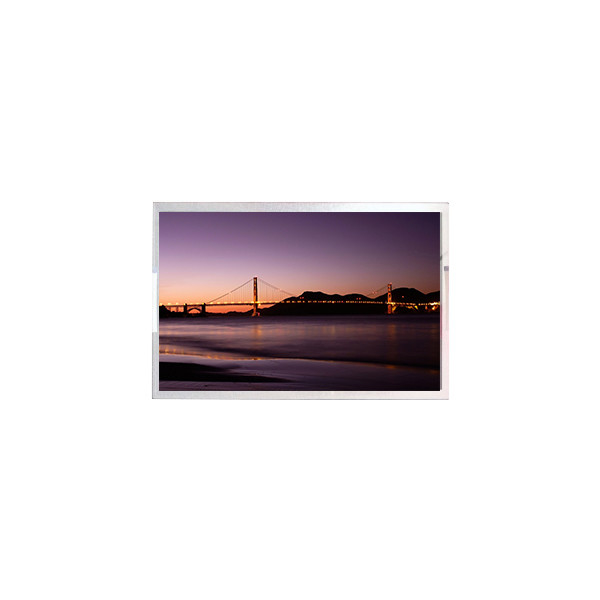

New 10.1 inch BAA100AS1-1 LCD Screen Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | CSOT |
| Model Number: | BAA100AS1-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | BAA100AS1-1 | Diagonal Size: | 10.1" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL , Q-CUT (Full Cell) | Resolution: | 720(RGB)×1280, WXGA 145PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 125.28(W)×222.72(H) Mm |
| Outline Size: | 129.28(W)×232.07(H) ×0.8(D) Mm | Surface: | Without Polarizer |
| Contrast Ratio: | 1000:1 (Typ.) (TM) | Application: | Automotive Display |
Product Description
New 10.1 inch BAA100AS1-1 LCD Screen Display Panel
BAA100AS1-1 LCD Panel Product details :
| Brand | CSOT |
| Model P/N | BAA100AS1-1 |
| Diagonal Size | 10.1" |
| Panel Type | a-Si TFT-LCD, CELL , Q-CUT (Full Cell) |
| Resolution | 720(RGB)×1280, WXGA 145PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 125.28(W)×222.72(H) mm |
| Bezel Opening | - |
| Outline Size | 129.28(W)×232.07(H) ×0.8(D) mm |
| Surface | Without Polarizer |
| Brightness | 0 cd/m² |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Display Mode | FFS, Normally Black, Transmissive |
| Glass Depth | 0.40+0.40 mm |
| Transmissivity | 3.7% (Typ.) |
| Best View on | Symmetry |
| Response Time | 35 (Typ.)(Tr+Td) |
| Display Colors | 16.7M 70% NTSC |
| Lamp Type | No B/L |
| Frequency | 60Hz |
| Touch Screen | Without |
| Driver IC | COG Suggest FL7705NI, ILI9881C-05, ST7703I |
| Application | Automotive Display |
| Panel Weight | - |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
BAA100AS1-1 LCD Display Features :
High Quality:
Highest quality touch LCD screen replacement parts.
Repair Utility:
Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.
Thorough Testing:
Each assembly is tested before shipping to ensure 100% functionality.
Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.
BAA100AS1-1 LCD Panel Shipping and Package :
BAA100AS1-1 LCD Display Shipping Policy :
Shipping Method:
If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.
Specified Logistics:
If you require a specific logistics company, please inform us in advance.
BAA100AS1-1 LCD Display Return Policy :
Product Status:
The product's condition (new or old) will be indicated in the product title.
Return and Exchange Conditions:
If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.
Return Procedure:
When returning the product, please provide a detailed explanation of the issues encountered.
Include actual photos showing the problems with the product.
BAA100AS1-1 LCD Panel FAQ :
Q: Can You declare my order of BAA100AS1-1 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty of BAA100AS1-1 ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of BAA100AS1-1 ?
A: Of course!If you make a large order, we will give you a discount.
Q: If I order BAA100AS1-1 now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
