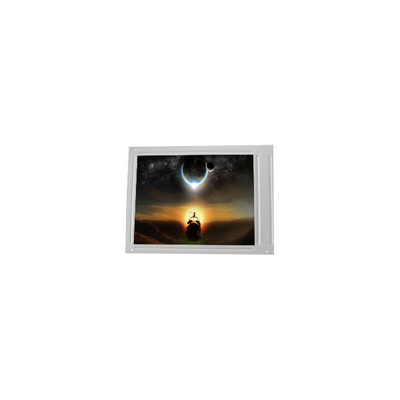

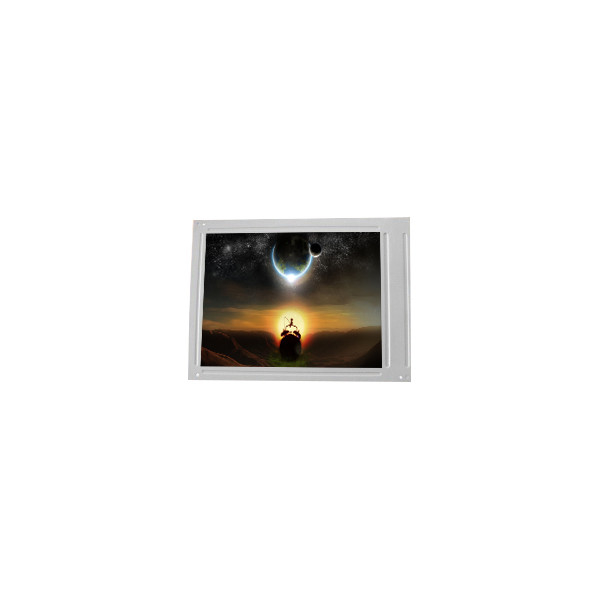

F052A10-601 5.2 inch 720*1280 LCD Screen Panel

Brand Name:	Innolux
Model Number:	F052A10-601
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

F052A10-601

Diagonal Size:

Panel Type:

A-Si TFT-LCD, CELL, Q-CUT (Full Cell)

Resolution:

720(RGB)×1280, WXGA 282PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

64.8(W)×115.2(H) Mm

Work Mode:

AAS, Normally Black, Transmissive

Color Depth:

16.7M 67%NTSC

Transmissivity:

3.6% (Typ.)(with Polarizer)

Used For:

Mobile Phone

Supply Ability:

100000 Unit/Units per Month

Product Description

F052A10-601 5.2 inch 720*1280 LCD Screen Panel

F052A10-601 LCD Panel Product details :

Brand	Innolux
Model P/N	F052A10-601
Diagonal Size	5.2"
Panel Type	a-Si TFT-LCD, CELL, Q-CUT (Full Cell)
Resolution	720(RGB)×1280, WXGA 282PPI
Pixel Format	RGB Vertical Stripe
Active Area	64.8(W)×115.2(H) mm
Bezel Opening	-
Outline(mm)	66.8 × 121× 0.3 (H×V×D)
Treatment	Without Polarizer
Luminance	0 cd/m²
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Response	25 (Typ.)(Tr+Td) ms
Good View at	Symmetry
Work Mode	AAS, Normally Black, Transmissive
Glass Thickness	0.15+0.15 mm
Transmissivity	3.6% (Typ.)(with Polarizer)
Color Depth	16.7M 67%NTSC
Backlight
Mass	-
Used for	Mobile Phone
Refresh Rate	-
Touchscreen	Without
Driver IC list	SuggestCOGNT35521S, hx8394F, OTM1287A, ILI9881C, JD9364, R61350C
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C

F052A10-601 LCD Panel - Before You Buy :

Before making a purchase, please ensure that you have verified your machine model and screen size. If you are unsure whether this LCD panel is compatible with your device, we recommend that you send us the specific model of your machine along with pictures of your original screen. This will help us confirm the suitability of the F052A10-601 panel for your needs.

Rest assured, all items will be thoroughly tested before shipping to guarantee they meet our quality standards.

F052A10-601 LCD Panel Shipping and Package :

F052A10-601 5.2 inch 720*1280 LCD Screen Panel 0

F052A10-601 LCD Panel - Delivery Information:

1.The transportation time varies by country. If you do not receive the goods within 30 days after payment, please contact us. We will track the goods and reply to you as soon as possible.

2.Tracking logistics information after transportation takes approximately one week. If you urgently need the goods, please contact us for expedited processing. Thank you very much for your understanding!

3.The shipping address will be based on your PayPal address. Please ensure that your shipping address is correct.

4.The packaging is safe and requires a signature. If no one signs for the package, it will be returned. Please don't forget to go to the post office to pick it up. thank you very much!

F052A10-601 LCD Panel - Returns Policy:

• Damaged or Wrong Item: If you receive a damaged or incorrect item, please contact us immediately through our messaging system. We will promptly arrange for the return and replacement.

• Return Period: Returns are accepted within 30 days of receiving the item.

• Packaging: When returning the item, please ensure it is packed securely in the original packaging, as the screens are very fragile. Do not use other types of packaging to avoid damage during transit.

• Return Shipping Costs: The buyer is responsible for the return shipping costs in cases where the wrong product, incorrect size, or a change of mind is the reason for the return.

F052A10-601 LCD Panel FAQ :

Q: Can You declare my order of F052A10-601 at a very low value ?

A: Yes , we can . pls inform us before shipping .

Q: How long is the warranty of F052A10-601 ?

A: 90days warranty .

Q: Can you give me a discount if I need a large quantity of F052A10-601 ?

A: Of course!If you make a large order, we will give you a discount.

Q: If I order F052A10-601 now,when will you ship the goods ?

A: The order will be shipped within 2-3 working days after received your payment.
