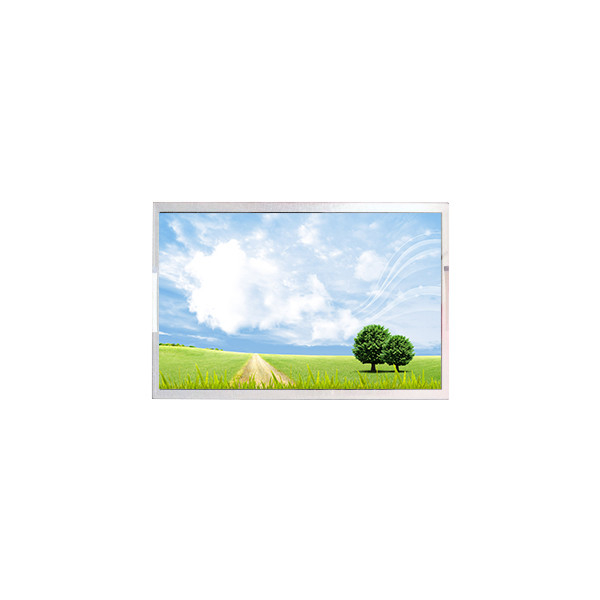

14.0 inch PPE007ZB1-3 2880*1880 LCD Screen Module
Product Details:
| Place of Origin: | China |
| Brand Name: | CSOT |
| Model Number: | PPE007ZB1-3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | PPE007ZB1-3 | Diagonal Size: | 14.0" |
|---|---|---|---|
| Panel Type: | LTPS TFT-LCD, Assembly | Resolution: | 2880(RGB)×1800 242PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 301.536(W)×188.46(H) Mm |
| Used For: | Pad & Tablet | Lamp Type: | 10 Strings WLED , Without Driver |
| Signal Interface: | MIPI (2 Ch, 4 Data Lanes) , 102 Pins Connector | Touch Screen: | In-Cell Touch, SPI |
Product Description
14.0 inch PPE007ZB1-3 2880*1880 LCD Screen Module
PPE007ZB1-3 LCD Panel Product details :
| Brand | CSOT |
| Model P/N | PPE007ZB1-3 |
| Diagonal Size | 14.0" |
| Panel Type | LTPS TFT-LCD, Assembly |
| Resolution | 2880(RGB)×1800 242PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 301.536(W)×188.46(H) mm |
| Bezel Opening | - |
| Outline Size | 211.3(W)×314.39(H) mm |
| Surface | Reflection 5.5% (Max.) |
| Brightness | 500 cd/m² (Typ.) |
| Contrast Ratio | 1250:1 (Typ.) (TM) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Display Mode | - |
| Best View on | Symmetry |
| Response Time | 25 (Max.)(Tr+Td) |
| Display Colors | 16.7M 99% DCI-P3 |
| Lamp Type | 10 strings WLED , Without Driver |
| Frequency | 60Hz |
| Touch Screen | In-Cell Touch, SPI |
| Panel Weight | TBD |
| Application | Pad & Tablet |
| Signal Interface | MIPI (2 ch, 4 data lanes) , 102 pins Connector |
| Input Voltage | 1.26/1.8/5.5/-5.5V (Typ.)(VDD/VDDI/AVDD/AVEE) |
| Environment | Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -40 ~ 65 °C |
PPE007ZB1-3 LCD Display Features :
High Quality:
Highest quality touch LCD screen replacement parts.
Repair Utility:
Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.
Thorough Testing:
Each assembly is tested before shipping to ensure 100% functionality.
Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.
PPE007ZB1-3 LCD Panel Shipping and Package :
PPE007ZB1-3 LCD Display Shipping Policy :
Shipping Method:
If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.
Specified Logistics:
If you require a specific logistics company, please inform us in advance.
PPE007ZB1-3 LCD Display Return Policy :
Product Status:
The product's condition (new or old) will be indicated in the product title.
Return and Exchange Conditions:
If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.
Return Procedure:
When returning the product, please provide a detailed explanation of the issues encountered.
Include actual photos showing the problems with the product.
PPE007ZB1-3 LCD Panel FAQ :
Q: How can I trace my order of PPE007ZB1-3 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of PPE007ZB1-3 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of PPE007ZB1-3 ?
A: Of course!sample order is welcome !
Q: Can I pay my order of PPE007ZB1-3 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
