Name: M270KCJ-P9B 27.0 inch 2K LCD Display Panel
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: M270KCJ-P9B
Availability: InStock

Brand Name:	Innolux
Model Number:	M270KCJ-P9B
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

M270KCJ-P9B

Diagonal Size:

27.0"

Panel Type:

A-Si TFT-LCD, CELL , FOB

Resolution:

2560(RGB)×1440, Quad-HD 108PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

596.736(W)×335.664(H) Mm

Application:

Desktop Monitor

Signal Interface:

LVDS (4 Ch, 8-bit) , 92 Pins Connector

Display Colors:

16.7M 82% SRGB

Lamp Type:

No B/L , No Driver

Supply Ability:

100000 Unit/Units per Month

Product Description

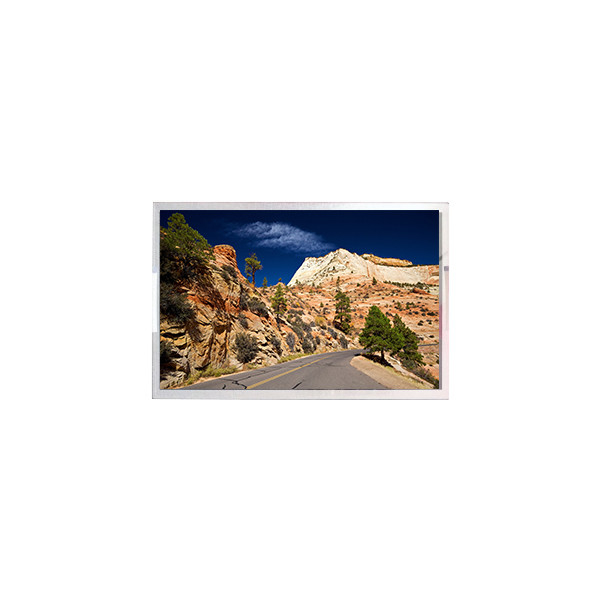

M270KCJ-P9B 27.0 inch 2K LCD Display Panel

M270KCJ-P9B LCD Panel Product details :

Brand	Innolux
Model P/N	M270KCJ-P9B
Diagonal Size	27.0"
Panel Type	a-Si TFT-LCD, CELL , FOB
Resolution	2560(RGB)×1440, Quad-HD 108PPI
Pixel Format	RGB Vertical Stripe
Active Area	596.736(W)×335.664(H) mm
Bezel Opening	-
Outline Size	608.58 × 349.08 × 1.35 (H×V×D)
Surface	Antiglare (Haze 25%), Hard coating (3H)
Brightness	0 cd/m²
Contrast Ratio	1300 : 1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Display Mode	AAS, Normally Black, Transmissive
Glass Thickness	0.50+0.50 mm
Transmissivity	5.7% (Typ.)(with Polarizer)
Best View on	Symmetry
Response Time	14 (Typ.)(G to G) ms
Display Colors	16.7M 82% sRGB
Lamp Type	No B/L , No Driver
Frequency	100Hz
Touch Screen	Without
Mass	648/720/756g (Min./Typ./Max.)
Application	Desktop Monitor
Driver IC list	Built-in COF 8 source chips
Signal Interface	LVDS (4 ch, 8-bit) , 92 pins Connector
Input Voltage	10.0V (Typ.)
Environment	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

M270KCJ-P9B LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

M270KCJ-P9B LCD Panel Shipping and Package :

M270KCJ-P9B 27.0 inch 2K LCD Display Panel 0

M270KCJ-P9B LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

M270KCJ-P9B LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

M270KCJ-P9B LCD Panel FAQ :

Q: Do you accept sample orders of M270KCJ-P9B ?

A: Of course! Sample order is welcome.

Q: Can I pay my order of M270KCJ-P9B vai credit card ?

A: Yes! You can use your credit card through your Paypal account.

Q: How long is the warranty ?

A: We offer 90 days warranty.

Q: If I place order now, when will you ship the goods of M270KCJ-P9B ?

A: The order will be shipped within 2-3 working days after received your payment.
