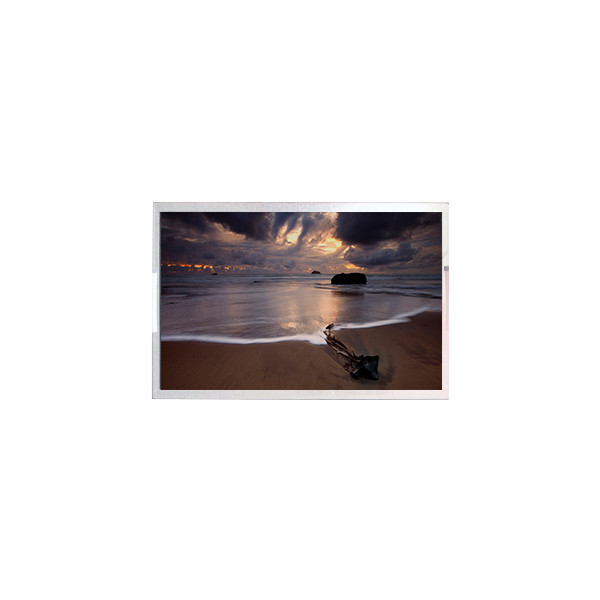

7.0 inch 1200*1920 ZD070VA-01B LCD Panel LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | ZD070VA-01B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | ZD070VA-01B | Diagonal Size: | 7.0" |
|---|---|---|---|
| Panel Type: | LTPS TFT-LCD, LCM | Resolution: | 1200(RGB)×1920, WUXGA 322PPI |
| Active Area: | 151.2(W)×94.5(H) Mm | Outline Size: | 174.2(H)×107.5(V) ×4.43(D) Mm |
| Brightness: | 500 Cd/m² (Typ.) | Contrast Ratio: | 40000:1 (Min.) (TM) |
| Best View On: | Symmetry | Application: | Industrial |
Product Description
7.0 inch 1200*1920 ZD070VA-01B LCD Panel LCD Screen
ZD070VA-01B LCD Panel Product details :
| Brand | Innolux |
| Model P/N | ZD070VA-01B |
| Diagonal Size | 7.0" |
| Panel Type | LTPS TFT-LCD, LCM |
| Resolution | 1200(RGB)×1920, WUXGA 322PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 151.2(W)×94.5(H) mm |
| Bezel Opening | - |
| Outline Size | 174.2(H)×107.5(V) ×4.43(D) mm |
| Surface | Anti Fingerprint, Hard coating (7H) |
| Brightness | 500 cd/m² (Typ.) |
| Contrast Ratio | 40000:1 (Min.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Display Mode | AAS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | TBD |
| Display Colors | 16.7M 90% NTSC |
| Lamp Type | Mini LED , 15K hours , W/O Driver |
| Frequency | 60Hz |
| Touch Screen | In-Cell Touch, I²C |
| Weight | TBD |
| Application | Industrial |
| Signal Interface | MIPI (4 data lanes) , 51 pins Connector |
| Input Voltage | 5.0V (Typ.)(With Backlight) |
| Environment | Operating Temperature: -20 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
ZD070VA-01B LCD Display Features :
High Quality:
Highest quality touch LCD screen replacement parts.
Repair Utility:
Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.
Thorough Testing:
Each assembly is tested before shipping to ensure 100% functionality.
Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.
ZD070VA-01B LCD Panel Shipping and Package :
ZD070VA-01B LCD Display Shipping Policy :
Shipping Method:
If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.
Specified Logistics:
If you require a specific logistics company, please inform us in advance.
ZD070VA-01B LCD Display Return Policy :
Product Status:
The product's condition (new or old) will be indicated in the product title.
Return and Exchange Conditions:
If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.
Return Procedure:
When returning the product, please provide a detailed explanation of the issues encountered.
Include actual photos showing the problems with the product.
ZD070VA-01B LCD Panel FAQ :
Q: Can You declare my order of ZD070VA-01B to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of ZD070VA-01B ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of ZD070VA-01B via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods ZD070VA-01B ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
