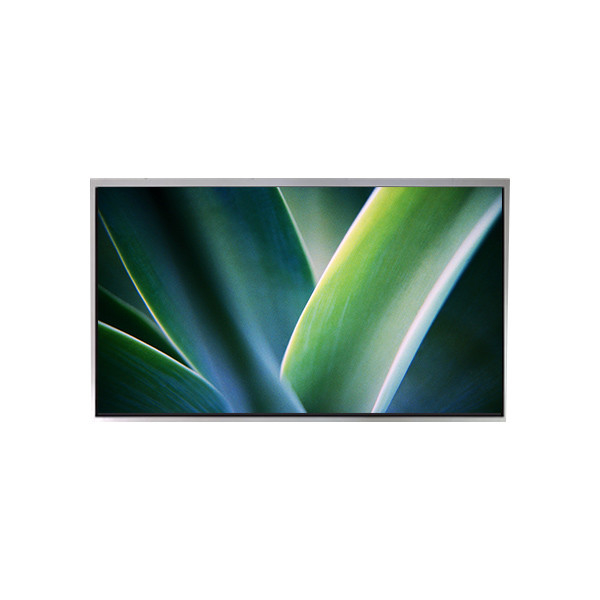

B156XTK02.0 HW1A 15.6 inch 1366*768 LCD Screen Panel for Laptop
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B156XTK02.0 HW1A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B156XTK02.0 HW1A | Diagonal Size: | 15.6" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1366(RGB)×768, WXGA 100PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 344.232(W)×193.536(H) Mm |
| Work Mode: | TN, Normally White, Transmissive | Color Depth: | 262K 44% NTSC |
| Good View At: | 6 O'clock | Used For: | Laptop |
Product Description
B156XTK02.0 HW1A 15.6 inch 1366*768 LCD Screen Panel for Laptop
B156XTK02.0 HW1A LCD Panel Product details :
| Brand | AUO |
| Model P/N | B156XTK02.0 HW1A |
| Diagonal Size | 15.6" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 100PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 344.232(W)×193.536(H) mm |
| Bezel Opening | - |
| Outline Dim. | 350.66(H)×216.15(V)×3.2(D) mm |
| Treatment | Glare (Haze 0%) |
| Luminance | 220 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 8 (Typ.)(Tr+Td) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K 44% NTSC |
| Light Source | WLED , 15K hours , With LED Driver |
| Form Style | Slim (PCBA Flat, T≤3.2mm) |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | On-Cell Touch, USB |
| Interface Type | eDP (1 Lane) , eDP1.2 , 40 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
B156XTK02.0 HW1A LCD Panel - Before You Buy :
Before making a purchase, please ensure that you have verified your machine model and screen size. If you are unsure whether this LCD panel is compatible with your device, we recommend that you send us the specific model of your machine along with pictures of your original screen. This will help us confirm the suitability of the B156XTK02.0 HW1A panel for your needs.
Rest assured, all items will be thoroughly tested before shipping to guarantee they meet our quality standards.
B156XTK02.0 HW1A LCD Panel Shipping and Package :
B156XTK02.0 HW1A LCD Panel - Delivery Information:
We strive to process and ship your order for the B156XTK02.0 HW1A LCD panel as quickly as possible after purchase. The item will be shipped using one of the following courier services: E-packing, FedEx, EMS, TNT, DHL, or UPS.
We typically dispatch orders within 1-3 business days after receiving payment. Depending on your location and the chosen shipping method, you can expect to receive your goods within 7-19 business days from the date of shipment.
Please note that delivery times may vary based on factors such as the destination, customs processing, and the efficiency of the courier service. We will provide you with a tracking number once your order has been shipped so you can monitor its progress.
B156XTK02.0 HW1A LCD Panel - Returns Policy:
• Damaged or Wrong Item: If you receive a damaged or incorrect item, please contact us immediately through our messaging system. We will promptly arrange for the return and replacement.
• Return Period: Returns are accepted within 30 days of receiving the item.
• Packaging: When returning the item, please ensure it is packed securely in the original packaging, as the screens are very fragile. Do not use other types of packaging to avoid damage during transit.
• Return Shipping Costs: The buyer is responsible for the return shipping costs in cases where the wrong product, incorrect size, or a change of mind is the reason for the return.
B156XTK02.0 HW1A LCD Panel FAQ :
Q: How long will I receive my goods B156XTK02.0 HW1A ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of B156XTK02.0 HW1A ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of B156XTK02.0 HW1A to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90days warranty .
