LCD Screen Display Panel

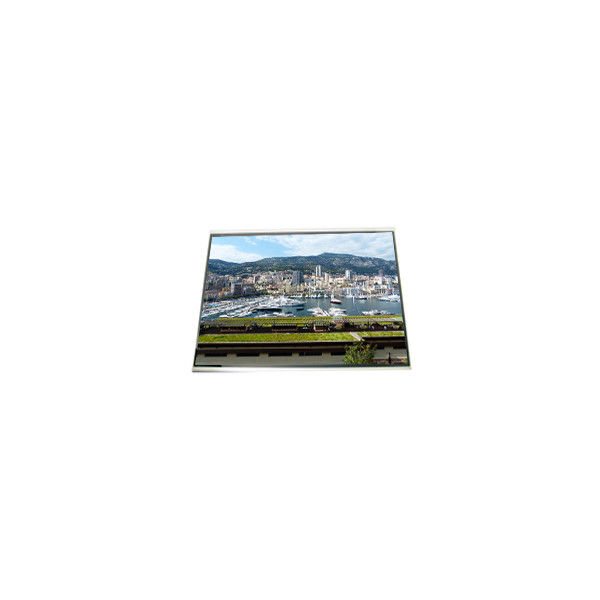

HSD057BHF1-P00 5.7 inch 720*1520 LCD Screen Panel

All Category

Floor Standing Digital Signage

HSD057BHF1-P00 5.7 inch 720*1520 LCD Screen Panel

Brand Name:	HannStar
Model Number:	HSD057BHF1-P00
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

HSD057BHF1-P00

Diagonal Size:

Panel Type:

A-Si TFT-LCD, CELL, Q-CUT (Full Cell)

Resolution:

720(RGB)×1520 294PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

62.1(W)×131.1(H) Mm

Work Mode:

IPS Pro, Normally Black, Transmissive

Color Depth:

16.7M 70%NTSC

Good View At:

Symmetry

Used For:

Mobile Phone

Supply Ability:

100000 Unit/Units per Month

Product Description

HSD057BHF1-P00 5.7 inch 720*1520 LCD Screen Panel

HSD057BHF1-P00 LCD Panel Product details :

Brand	HannStar
Model P/N	HSD057BHF1-P00
Diagonal Size	5.7"
Panel Type	a-Si TFT-LCD, CELL, Q-CUT (Full Cell)
Resolution	720(RGB)×1520 294PPI
Pixel Format	RGB Vertical Stripe
Active Area	62.1(W)×131.1(H) mm
Bezel Opening	-
Outline Size	64.1(W)×136.1(H)×0.8(D) mm
Surface	Without Polarizer
Brightness	0 cd/m²
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Display Mode	IPS Pro, Normally Black, Transmissive
Best View on	Symmetry
Response Time	26 (Max.)(Tr+Td)
Glass Depth	0.40+0.40 mm
Transmissivity	12.1% (Typ.)(without Polarizer)
Display Colors	16.7M 70%NTSC
Lamp Type	No B/L
Frequency	-
Touch Screen	Without
Driver IC	COG Suggest HX8394F, JD9365D, ILI9881C-04, OTM1290A
Panel Weight	-
Application	Mobile Phone
Environment	Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -40 ~ 80 °C

HSD057BHF1-P00 LCD Panel - Before You Buy :

Before making a purchase, please ensure that you have verified your machine model and screen size. If you are unsure whether this LCD panel is compatible with your device, we recommend that you send us the specific model of your machine along with pictures of your original screen. This will help us confirm the suitability of the HSD057BHF1-P00 panel for your needs.

Rest assured, all items will be thoroughly tested before shipping to guarantee they meet our quality standards.

HSD057BHF1-P00 LCD Panel Shipping and Package :

HSD057BHF1-P00 5.7 inch 720*1520 LCD Screen Panel 0

HSD057BHF1-P00 LCD Panel - Delivery Information:

We strive to process and ship your order for the HSD057BHF1-P00 LCD panel as quickly as possible after purchase. The item will be shipped using one of the following courier services: E-packing, FedEx, EMS, TNT, DHL, or UPS.

We typically dispatch orders within 1-3 business days after receiving payment. Depending on your location and the chosen shipping method, you can expect to receive your goods within 7-19 business days from the date of shipment.

Please note that delivery times may vary based on factors such as the destination, customs processing, and the efficiency of the courier service. We will provide you with a tracking number once your order has been shipped so you can monitor its progress.

HSD057BHF1-P00 LCD Panel - Returns Policy:

• Damaged or Wrong Item: If you receive a damaged or incorrect item, please contact us immediately through our messaging system. We will promptly arrange for the return and replacement.

• Return Period: Returns are accepted within 30 days of receiving the item.

• Packaging: When returning the item, please ensure it is packed securely in the original packaging, as the screens are very fragile. Do not use other types of packaging to avoid damage during transit.

• Return Shipping Costs: The buyer is responsible for the return shipping costs in cases where the wrong product, incorrect size, or a change of mind is the reason for the return.

HSD057BHF1-P00 LCD Panel FAQ :

Q: Can you test the lcd panel HSD057BHF1-P00 before shipping ?

A: Yes , of course , don't worry , our item was tested ok before shipping .

Q: Do you accept the sample order HSD057BHF1-P00 ?

A: Yes , sample order is welcome.

Q: Can you declared low value of my order HSD057BHF1-P00 ?

A: Yes , we can , you can tell us before shipping .

Q: How long the warranty of lcd HSD057BHF1-P00 ?

A: 90 days .
