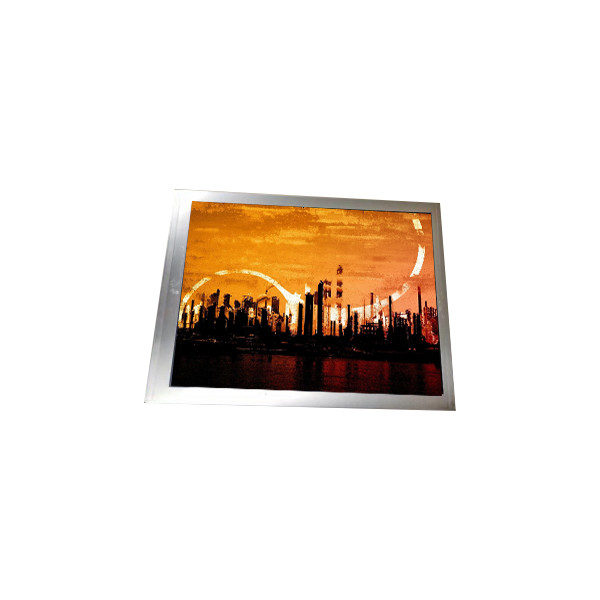

11.6 inch B116XAB01.4 HW1A 1366*768 TFT LCD Screen for Laptop
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B116XAB01.4 HW1A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B116XAB01.4 HW1A | Diagonal Size: | 11.6" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, Assembly | Resolution: | 1366(RGB)×768, WXGA 135PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 256.125(W)×144(H) Mm |
| Designed For: | Laptop | Touch Panel: | On-Cell Touch, I²C |
| Interface Type: | EDP (1 Lane) , EDP1.2 , 40 Pins Connector | Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
Product Description
11.6 inch B116XAB01.4 HW1A 1366*768 TFT LCD Screen for Laptop
B116XAB01.4 HW1A LCD Panel Product details :
| Brand | AUO |
| Model P/N | B116XAB01.4 HW1A |
| Diagonal Size | 11.6" |
| Panel Type | a-Si TFT-LCD, Assembly |
| Resolution | 1366(RGB)×768, WXGA 135PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 256.125(W)×144(H) mm |
| Bezel Opening | - |
| Outline Dim. | 284.1(W)×185(H) ×4.05(D) mm |
| Treatment | Glare (Haze 0%), Hard coating (7H) |
| Luminance | 235 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 27 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | AHVA, Normally Black, Transmissive |
| Support Color | 262K 50% NTSC |
| Light Source | WLED , 15K hours , With LED Driver |
| Shape Style | - |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | On-Cell Touch, I²C |
| Interface Type | eDP (1 Lane) , eDP1.2 , 40 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
B116XAB01.4 HW1A LCD Display About Us :
Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.
Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.
Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.
B116XAB01.4 HW1A LCD Display Product Details :
Condition:
Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.
Order Guidance:
If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.
Product Authenticity:
The LCD screens are original and are thoroughly tested before being sent to you.
B116XAB01.4 HW1A LCD Display Friendly Reminder :
- Installation Guide:
- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.
- Professional Installation Recommended:
- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.
- Disassembly Knowledge:
- Make sure you understand the disassembly procedure before making a purchase.
- Return Policy:
- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.
B116XAB01.4 HW1A LCD Panel Shipping and Package :
B116XAB01.4 HW1A LCD Panel FAQ :
Q: How can I trace my order of B116XAB01.4 HW1A ?
A: we will give you tracking number then you can trace your order from website.
Q: How long will I receive my goods B116XAB01.4 HW1A ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment of B116XAB01.4 HW1A ?
A: We accept T/T , Paypal , western union .
Q: Can I pay my order of B116XAB01.4 HW1A via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Want to Know more details about this product
