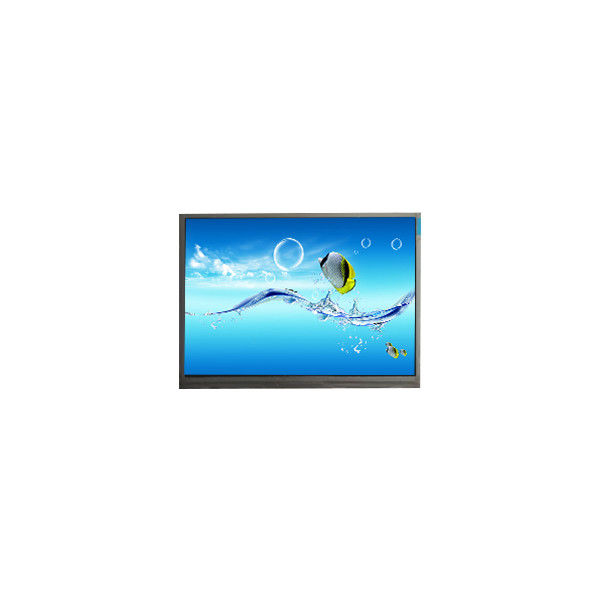

F070A30-602 7.0 inch 1024*600 TFT-LCD Panel Display

Brand Name:	Innolux
Model Number:	F070A30-602
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

F070A30-602

Diagonal Size:

Panel Type:

A-Si TFT-LCD, CELL, Q-CUT (Full Cell)

Resolution:

1024(RGB)×600, WSVGA 170PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

154.214(W)×85.92(H) Mm

Best View On:

Symmetry

Color Depth:

50%NTSC

Lamp Type:

No B/L

Used For:

Automotive Display、Digital Photo Frame、Portable DVD Player

Supply Ability:

100000 Unit/Units per Month

Product Description

F070A30-602 7.0 inch 1024*600 TFT-LCD Panel Display

F070A30-602 LCD Panel Product details :

Brand	Innolux
Model P/N	F070A30-602
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, CELL, Q-CUT (Full Cell)
Resolution	1024(RGB)×600, WSVGA 170PPI
Pixel Format	RGB Vertical Stripe
Active Area	154.214(W)×85.92(H) mm
Bezel Opening	-
Outline Size	162.2(W)×95.7(H)×0.8(D) mm
Treatment	-
Luminance	0 cd/m²
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	80/80/80/80 (Min.)(CR≥10)
Response	25 (Typ.)(Tr+Td) ms
Good View at	Symmetry
Work Mode	AAS, Normally Black, Transmissive
Glass Thickness	0.40+0.40 mm
Transmissivity	5.27% (Typ.)
Color Depth	50%NTSC
Backlight	No B/L
Mass	-
Used for	Automotive Display,Digital Photo Frame,Portable DVD Player
Refresh Rate	-
Touchscreen	Without
Driver IC list	Suggest COG EK79001+EK73215, ILI6150+ILI5121, HX8282-C+HX8696, HX8282-A+HX8696, ST5653+ST5021
Max. Ratings	Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C

F070A30-602 LCD Panel Specification :

Quality Assurance

Comprehensive Quality Check and Testing

Each F070A30-602 LCD panel undergoes a thorough quality check and extensive testing before it is dispatched. This ensures that you receive a product that meets our high standards of performance and reliability.

F070A30-602 LCD Panel Shipping and Package :

F070A30-602 7.0 inch 1024*600 TFT-LCD Panel Display 0

F070A30-602 LCD Panel Specification Estimated Delivery Time :

Standard Shipping

Estimated delivery time for standard shipping is between 10 to 35 working days. Please note that this time frame may vary depending on your location and other factors.

Expedited Shipping

For faster delivery, you can choose expedited shipping, with an estimated delivery time of 4 to 7 working days. This option is ideal for urgent orders that require quicker handling and shipping.

Important Note on Delivery Times

Potential Delays

We appreciate your understanding that there might be delays during national holidays and traditional festivals. These periods can affect shipping schedules due to increased demand and limited carrier operations.

F070A30-602 LCD Panel Return Policy :

It is imperative to get in touch with our customer service team before initiating any return. This allows us to provide you with the necessary instructions and support.

Defective or Damaged Items

If you receive an item that is Dead on Arrival (DOA) or damaged during shipping, please notify us within 7 days of receipt. Timely reporting ensures a prompt resolution.

Restocking Fees

A 20% restocking fee will be applied to all returns that are non-defective, including parts that are not used, not needed, or ordered incorrectly. This fee helps cover the costs associated with processing and restocking the item.

Shipping Costs for Incorrect Orders

If the return is due to ordering the wrong item, the customer is responsible for covering the shipping costs both ways. This includes the cost to send the item back to us and the cost to ship the correct item, if applicable.

Packaging Requirements for Returns

To ensure the safe return of the LCD panel, please adhere to the following packaging instructions:

Proper Packaging Materials

Use protective materials such as bubble wrap or sponge foam to securely pack the item. Proper cushioning prevents damage during transit.

Avoid Inadequate Packaging

Do not use envelopes or breakable boxes for returning the item. The LCD screen is fragile and requires sturdy packaging to avoid damage.

F070A30-602 LCD Panel FAQ :

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: Can you give me a discount if I need a large quantity of F070A30-602 ?

A: Of course!If you make a large order, we will give you a discount.

Q: How long will I receive my goods F070A30-602 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: Can You declare my order of F070A30-602 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .
