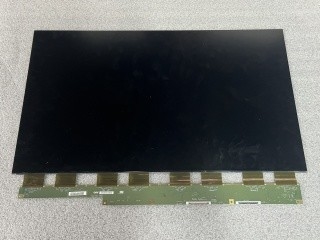

M270DAN02.B CELL 27.0 inch 2560*1440 LCD Panel Display

Brand Name:	AUO
Model Number:	M270DAN02.B CELL
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

M270DAN02.B CELL

Diagonal Size:

27.0"

Panel Type:

A-Si TFT-LCD, CELL, FOB

Resolution:

2560(RGB)×1440, Quad-HD 108PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

596.736(W)×335.664(H) Mm

Best View On:

Symmetry

Color Depth:

16.7M 79%NTSC

Lamp Type:

No B/L

Used For:

Desktop Monitor、Gaming

Supply Ability:

100000 Unit/Units per Month

Product Description

M270DAN02.B CELL 27.0 inch 2560*1440 LCD Panel Display

M270DAN02.B CELL LCD Panel Product details :

Brand	AUO
Model P/N	M270DAN02.B CELL
Diagonal Size	27.0"
Panel Type	a-Si TFT-LCD, CELL, FOB
Resolution	2560(RGB)×1440, Quad-HD 108PPI
Pixel Format	RGB Vertical Stripe
Active Area	596.736(W)×335.664(H) mm
Bezel Opening	-
Outline(mm)	605.436 × 348.407× 1.35 (H×V×D)
Treatment	Antiglare (Haze 25%), Hard coating (3H)
Luminance	0 cd/m²
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Response	12 (Typ.)(G to G) ms
Good View at	Symmetry
Work Mode	AHVA, Normally Black, Transmissive
Glass Thickness	0.50+0.50 mm
Transmissivity	2.88% (Typ.)(with Polarizer)
Color Depth	16.7M 79%NTSC
Backlight	No B/L
Mass	630g (Typ.)
Used for	Desktop Monitor,Gaming
Refresh Rate	165Hz
Touchscreen	Without
Driver IC list	Built-inCOF8 souce chips
Signal Type	eDP (4 Lanes), HBR2 (5.4G/lane), 70 pins Connector
Voltage Supply	12.0V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

M270DAN02.B CELL LCD Panel Specification :

Quality Assurance

Comprehensive Quality Check and Testing

Each M270DAN02.B CELL LCD panel undergoes a thorough quality check and extensive testing before it is dispatched. This ensures that you receive a product that meets our high standards of performance and reliability.

M270DAN02.B CELL LCD Panel Shipping and Package :

M270DAN02.B CELL 27.0 inch 2560*1440 LCD Panel Display 0

M270DAN02.B CELL LCD Panel Specification Estimated Delivery Time :

Standard Shipping

Estimated delivery time for standard shipping is between 10 to 35 working days. Please note that this time frame may vary depending on your location and other factors.

Expedited Shipping

For faster delivery, you can choose expedited shipping, with an estimated delivery time of 4 to 7 working days. This option is ideal for urgent orders that require quicker handling and shipping.

Important Note on Delivery Times

Potential Delays

We appreciate your understanding that there might be delays during national holidays and traditional festivals. These periods can affect shipping schedules due to increased demand and limited carrier operations.

M270DAN02.B CELL LCD Panel Return Policy :

It is imperative to get in touch with our customer service team before initiating any return. This allows us to provide you with the necessary instructions and support.

Defective or Damaged Items

If you receive an item that is Dead on Arrival (DOA) or damaged during shipping, please notify us within 7 days of receipt. Timely reporting ensures a prompt resolution.

Restocking Fees

A 20% restocking fee will be applied to all returns that are non-defective, including parts that are not used, not needed, or ordered incorrectly. This fee helps cover the costs associated with processing and restocking the item.

Shipping Costs for Incorrect Orders

If the return is due to ordering the wrong item, the customer is responsible for covering the shipping costs both ways. This includes the cost to send the item back to us and the cost to ship the correct item, if applicable.

Packaging Requirements for Returns

To ensure the safe return of the LCD panel, please adhere to the following packaging instructions:

Proper Packaging Materials

Use protective materials such as bubble wrap or sponge foam to securely pack the item. Proper cushioning prevents damage during transit.

Avoid Inadequate Packaging

Do not use envelopes or breakable boxes for returning the item. The LCD screen is fragile and requires sturdy packaging to avoid damage.

M270DAN02.B CELL LCD Panel FAQ :

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: If I place order now,when will you ship the goods of M270DAN02.B CELL ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: How long will I receive my goods M270DAN02.B CELL ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: Can I pay my order of M270DAN02.B CELL via credit card ?

A: Yes!you can use your credit card through your Paypal account.
