LCD Screen Display Panel

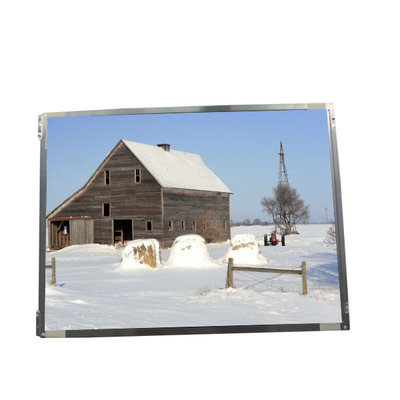

New 1920*1080 M215HW01 V1 21.5 inch 75Hz TFT LCD Module

All Category

Floor Standing Digital Signage

New 1920*1080 M215HW01 V1 21.5 inch 75Hz TFT LCD Module

Brand Name:	AUO
Model Number:	M215HW01 V1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

M215HW01 V1

Diagonal Size:

21.5"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1920(RGB)×1080, FHD 102PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

476.64(W)×268.11(H) Mm

Used For:

Desktop Monitor

Touchscreen:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

New 1920*1080 M215HW01 V1 21.5 inch 75Hz TFT LCD Module

M215HW01 V1 LCD Panel Product details :

Brand	AUO
Model P/N	M215HW01 V1
Diagonal Size	21.5"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 102PPI
Pixel Format	RGB Vertical Stripe
Active Area	476.64(W)×268.11(H) mm
Bezel Opening	479.84(W)×271.31(H) mm
Outline Size	495.6(W)×292.2(H) ×16.85(D) mm
Surface	Glare (Haze 0%), Hard coating (3H)
Brightness	300 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	85/85/80/80 (Typ.)(CR＞10)
Display Mode	TN, Normally White, Transmissive
Best View on	6 o'clock
Response Time	3.8/1.2 (Typ.)(Tr/Td)
Display Colors	16.7M 72% NTSC
Lamp Type	4 pcs CCFL , 50K hours , Without Driver
Frequency	75Hz
Touch Screen	Without
Panel Weight	2.19Kgs (Typ.)
Application	Desktop Monitor
Signal Interface	LVDS (2 ch, 8-bit) , 30 pins Connector
Input Voltage	5.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

M215HW01 V1 LCD Display About Us :

Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.

Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.

Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.

M215HW01 V1 LCD Display Product Details :

Condition:

Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.

Order Guidance:

If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.

Product Authenticity:

The LCD screens are original and are thoroughly tested before being sent to you.

M215HW01 V1 LCD Display Friendly Reminder :

- Installation Guide:

- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.

- Professional Installation Recommended:

- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.

- Disassembly Knowledge:

- Make sure you understand the disassembly procedure before making a purchase.

- Return Policy:

- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.

M215HW01 V1 LCD Panel Shipping and Package :

New 1920*1080 M215HW01 V1 21.5 inch 75Hz TFT LCD Module 0

M215HW01 V1 LCD Panel FAQ :

Q: Can I pay my order of M215HW01 V1 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can you give me a discount if I need a large quantity of M215HW01 V1 ?

A: Of course!If you make a large order, we will give you a discount.

Q: How can I trace my order of M215HW01 V1 ?

A: we will give you tracking number then you can trace your order from website.

Q: How long is the warranty ?

A: We offer 90 days warranty .
