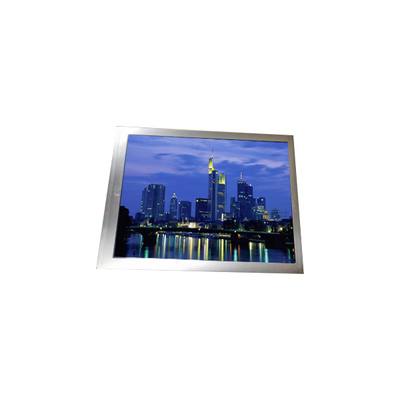

B173HAN04.8 HW2A 17.3 inch 1080p LCD Panel Display Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B173HAN04.8 HW2A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B173HAN04.8 HW2A | Diagonal Size: | 17.3" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×1080, FHD 127PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 381.888(W)×214.812(H) Mm |
| Operating Mode: | AHVA, Normally Black, Transmissive | Support Color: | 16.7M 45% NTSC |
| Lamp Type: | WLED , 15K Hours , With LED Driver | Used For: | Laptop /Gaming |
Product Description
B173HAN04.8 HW2A 17.3 inch 1080p LCD Panel Display Screen
B173HAN04.8 HW2A LCD Panel Product details :
| Brand | AUO |
| Model P/N | B173HAN04.8 HW2A |
| Diagonal Size | 17.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 127PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 381.888(W)×214.812(H) mm |
| Bezel Opening | - |
| Outline Dim. | 389.89(W)×238.31(H) ×3.5(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | AHVA, Normally Black, Transmissive |
| Support Color | 16.7M 45% NTSC |
| Light Source | WLED , 15K hours , With LED Driver |
| Shape Style | Flat (PCBA Flat, T3.4~4.0mm) |
| Designed For | Laptop /Gaming |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | eDP (2 Lanes) , eDP1.2 , 30 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
B173HAN04.8 HW2A LCD Panel Specification :
Quality Assurance
Comprehensive Quality Check and Testing
Each B173HAN04.8 HW2A LCD panel undergoes a thorough quality check and extensive testing before it is dispatched. This ensures that you receive a product that meets our high standards of performance and reliability.
B173HAN04.8 HW2A LCD Panel Shipping and Package :
B173HAN04.8 HW2A LCD Panel Specification Estimated Delivery Time :
Standard Shipping
Estimated delivery time for standard shipping is between 10 to 35 working days. Please note that this time frame may vary depending on your location and other factors.
Expedited Shipping
For faster delivery, you can choose expedited shipping, with an estimated delivery time of 4 to 7 working days. This option is ideal for urgent orders that require quicker handling and shipping.
Important Note on Delivery Times
Potential Delays
We appreciate your understanding that there might be delays during national holidays and traditional festivals. These periods can affect shipping schedules due to increased demand and limited carrier operations.
B173HAN04.8 HW2A LCD Panel Return Policy :
Contact Us Before Returning Items
It is imperative to get in touch with our customer service team before initiating any return. This allows us to provide you with the necessary instructions and support.
Defective or Damaged Items
If you receive an item that is Dead on Arrival (DOA) or damaged during shipping, please notify us within 7 days of receipt. Timely reporting ensures a prompt resolution.
Restocking Fees
A 20% restocking fee will be applied to all returns that are non-defective, including parts that are not used, not needed, or ordered incorrectly. This fee helps cover the costs associated with processing and restocking the item.
Shipping Costs for Incorrect Orders
If the return is due to ordering the wrong item, the customer is responsible for covering the shipping costs both ways. This includes the cost to send the item back to us and the cost to ship the correct item, if applicable.
Packaging Requirements for Returns
To ensure the safe return of the LCD panel, please adhere to the following packaging instructions:
Proper Packaging Materials
Use protective materials such as bubble wrap or sponge foam to securely pack the item. Proper cushioning prevents damage during transit.
Avoid Inadequate Packaging
Do not use envelopes or breakable boxes for returning the item. The LCD screen is fragile and requires sturdy packaging to avoid damage.
B173HAN04.8 HW2A LCD Panel FAQ :
Q: How can I trace my order of B173HAN04.8 HW2A ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of B173HAN04.8 HW2A ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of B173HAN04.8 HW2A via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods B173HAN04.8 HW2A ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
