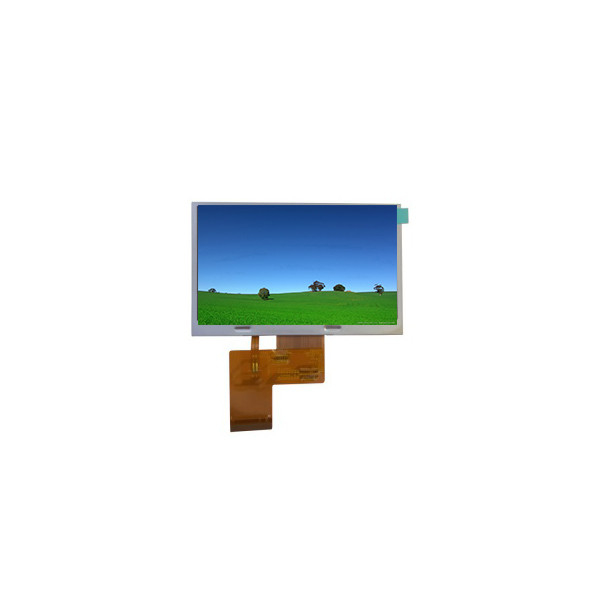

TM050JDHG33-01 5.0 inch 720*1280 LCD Panel Display

Brand Name:	TIANMA
Model Number:	TM050JDHG33-01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TM050JDHG33-01

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

720(RGB)×1280, WXGA 294PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

62.1(W)×110.4(H) Mm

Operating Mode:

SFT, Normally Black, Transmissive

Support Color:

16.7M 70%NTSC

Lamp Type:

WLED [6S2P], 20K Hours, W/O Driver

Used For:

Mobile Phone、Handheld & PDA

Supply Ability:

100000 Unit/Units per Month

Product Description

TM050JDHG33-01 5.0 inch 720*1280 LCD Panel Display

TM050JDHG33-01 LCD Panel Product details :

Brand	TIANMA
Model P/N	TM050JDHG33-01
Diagonal Size	5.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	720(RGB)×1280, WXGA 294PPI
Pixel Format	RGB Vertical Stripe
Active Area	62.1(W)×110.4(H) mm
Bezel Opening	-
Outline Dim.	65.4(H)×118.9(V)×1.85(D)mm
Treatment	Clear, Hard coating
Luminance	600 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	30 (Typ.)(Tr+Td)
Viewing Angle	88/88/88/88 (Typ.)(CR≥10)
Operating Mode	SFT, Normally Black, Transmissive
Support Color	16.7M 70%NTSC
Light Source	WLED [6S2P], 20K hours, W/O Driver
Weight	27g
Designed For	Mobile Phone,Handheld & PDA
Frame Rate	60Hz
Touch Panel	Without
Interface Type	MIPI (4 data lanes), 34 pinsConnector
Power Supply	1.8/2.8V (Typ.)(VDDIO/VDD)
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

TM050JDHG33-01 LCD Panel Specification :

Quality Assurance

Comprehensive Quality Check and Testing

Each TM050JDHG33-01 LCD panel undergoes a thorough quality check and extensive testing before it is dispatched. This ensures that you receive a product that meets our high standards of performance and reliability.

TM050JDHG33-01 LCD Panel Shipping and Package :

TM050JDHG33-01 5.0 inch 720*1280 LCD Panel Display 0

TM050JDHG33-01 LCD Panel Specification Estimated Delivery Time :

Standard Shipping

Estimated delivery time for standard shipping is between 10 to 35 working days. Please note that this time frame may vary depending on your location and other factors.

Expedited Shipping

For faster delivery, you can choose expedited shipping, with an estimated delivery time of 4 to 7 working days. This option is ideal for urgent orders that require quicker handling and shipping.

Important Note on Delivery Times

Potential Delays

We appreciate your understanding that there might be delays during national holidays and traditional festivals. These periods can affect shipping schedules due to increased demand and limited carrier operations.

TM050JDHG33-01 LCD Panel Return Policy :

It is imperative to get in touch with our customer service team before initiating any return. This allows us to provide you with the necessary instructions and support.

Defective or Damaged Items

If you receive an item that is Dead on Arrival (DOA) or damaged during shipping, please notify us within 7 days of receipt. Timely reporting ensures a prompt resolution.

Restocking Fees

A 20% restocking fee will be applied to all returns that are non-defective, including parts that are not used, not needed, or ordered incorrectly. This fee helps cover the costs associated with processing and restocking the item.

Shipping Costs for Incorrect Orders

If the return is due to ordering the wrong item, the customer is responsible for covering the shipping costs both ways. This includes the cost to send the item back to us and the cost to ship the correct item, if applicable.

Packaging Requirements for Returns

To ensure the safe return of the LCD panel, please adhere to the following packaging instructions:

Proper Packaging Materials

Use protective materials such as bubble wrap or sponge foam to securely pack the item. Proper cushioning prevents damage during transit.

Avoid Inadequate Packaging

Do not use envelopes or breakable boxes for returning the item. The LCD screen is fragile and requires sturdy packaging to avoid damage.

TM050JDHG33-01 LCD Panel FAQ :

Q: How to make payment of TM050JDHG33-01 ?

A: We accept T/T , Paypal , western union .

Q: Can you give me a discount if I need a large quantity of TM050JDHG33-01 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Do you accept sample orders of TM050JDHG33-01 ?

A: Of course!sample order is welcome !

Q: How long will I receive my goods TM050JDHG33-01 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
