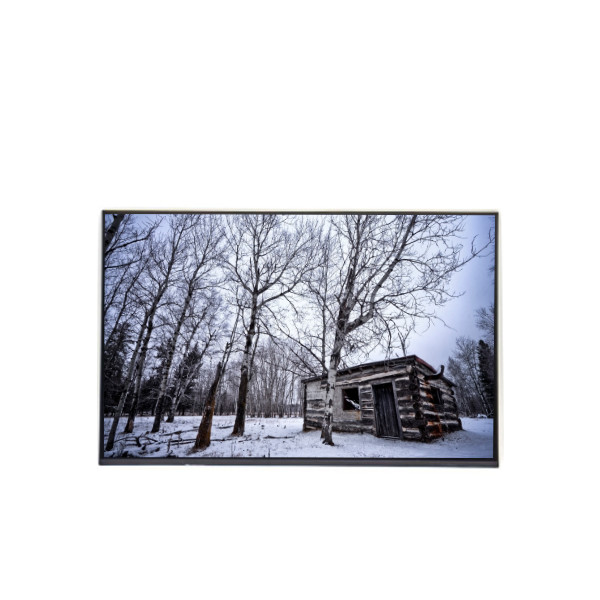

9.0 inch 800*480 A090VW01 V3 CELL TFT LCD Monitor Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | A090VW01 V3 CELL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | A090VW01 V3 CELL | Diagonal Size: | 9.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL , FOG | Resolution: | 800×480(RGB), WVGA 104PPI |
| Pixel Format: | RGB Horizontal Stripe | Active Area: | 199.2(W)×110.16(H) Mm |
| Used For: | Digital Photo Frame ，Portable DVD Player | Touchscreen: | Without |
Product Description
9.0 inch 800*480 A090VW01 V3 CELL TFT LCD Monitor Panel
A090VW01 V3 CELL LCD Panel Product details :
| Brand | AUO |
| Model P/N | A090VW01 V3 CELL |
| Diagonal Size | 9.0" |
| Panel Type | a-Si TFT-LCD, CELL , FOG |
| Resolution | 800×480(RGB), WVGA 104PPI |
| Pixel Format | RGB Horizontal Stripe |
| Active Area | 199.2(W)×110.16(H) mm |
| Bezel Opening | - |
| Outline Size | 207.85(W)×119.3(H)×1.43(D) |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 0 (cd/m²) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/55/70 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Glass Thickness | 0.50+0.50 mm |
| Transmissivity | - |
| Best View on | 6 o'clock |
| Response Time | 4/12 (Typ.)(Tr/Td) ms |
| Display Colors | 16.7M 48% NTSC |
| Lamp Type | No B/L , No Driver |
| Frequency | - |
| Touch Screen | Without |
| Panel Weight | 74.8g (Typ.) |
| Application | Digital Photo Frame ,Portable DVD Player |
| Signal Interface | TTL (1 ch, 8-bit) + SPI , 68 pins FPC |
| Input Voltage | 3.3/5.5/-5.5/10/-13V (Typ.)(VCC/VDPA/VDNA/VGH/VGL) |
| Environment | Storage Temp.: -20 ~ 70 °C Operating Temp.: -10 ~ 60 °C |
A090VW01 V3 CELL LCD Display About Us :
Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.
Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.
Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.
A090VW01 V3 CELL LCD Display Product Details :
Condition:
Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.
Order Guidance:
If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.
Product Authenticity:
The LCD screens are original and are thoroughly tested before being sent to you.
A090VW01 V3 CELL LCD Display Friendly Reminder :
- Installation Guide:
- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.
- Professional Installation Recommended:
- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.
- Disassembly Knowledge:
- Make sure you understand the disassembly procedure before making a purchase.
- Return Policy:
- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.
A090VW01 V3 CELL LCD Panel Shipping and Package :
A090VW01 V3 CELL LCD Panel FAQ :
Q: Can you tested the A090VW01 V3 CELL before shipping ?
A: Of course , our lcd panel A090VW01 V3 CELL was Strictly tested before shipping.
Q: How to order A090VW01 V3 CELL ?
A: We accept T/T , Paypal , western union .
Q: What happen if the lcd panel A090VW01 V3 CELL received can't work ?
A:A090VW01 V3 CELL was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
